Neutral Drive Accumulator

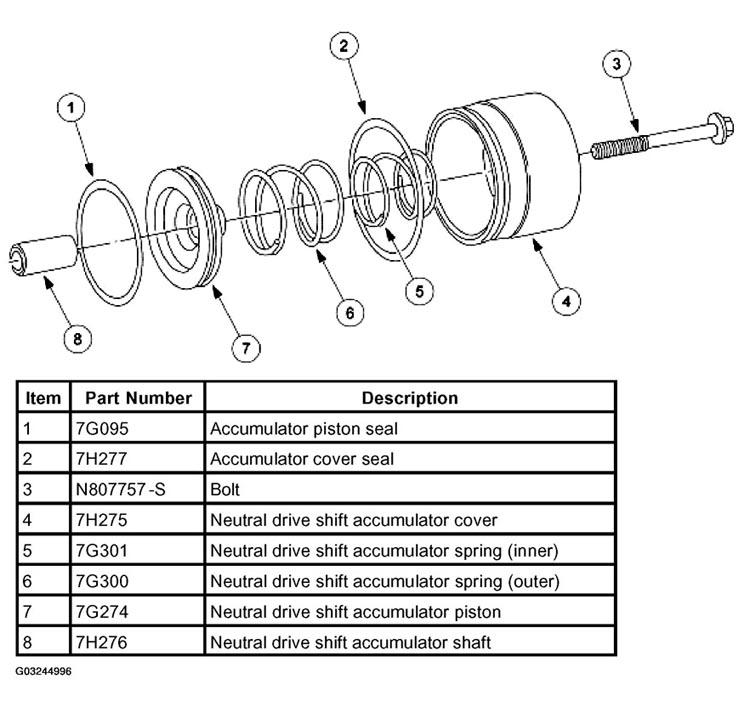

Fig 1: Identifying Neutral Drive Accumulator Components

Courtesy of FORD MOTOR CO.

1. Lightly coat the seals with petroleum jelly prior to installation.

• Remove and install a new neutral drive accumulator piston seal.
• Remove and install a new neutral drive accumulator cover seal.

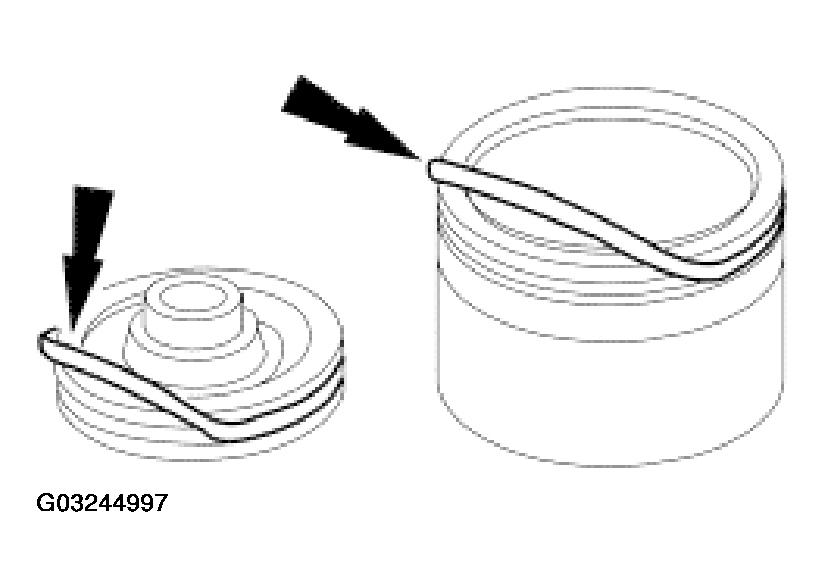

Fig 2: Identifying Neutral Drive Accumulator Cover Seal And Piston Seal

Courtesy of FORD MOTOR CO.
