Item 20: Fuel Pump Module Installation Note

  1. When installing the fuel pump module, make sure to align the locator tabs on the fuel tank mounting flange.

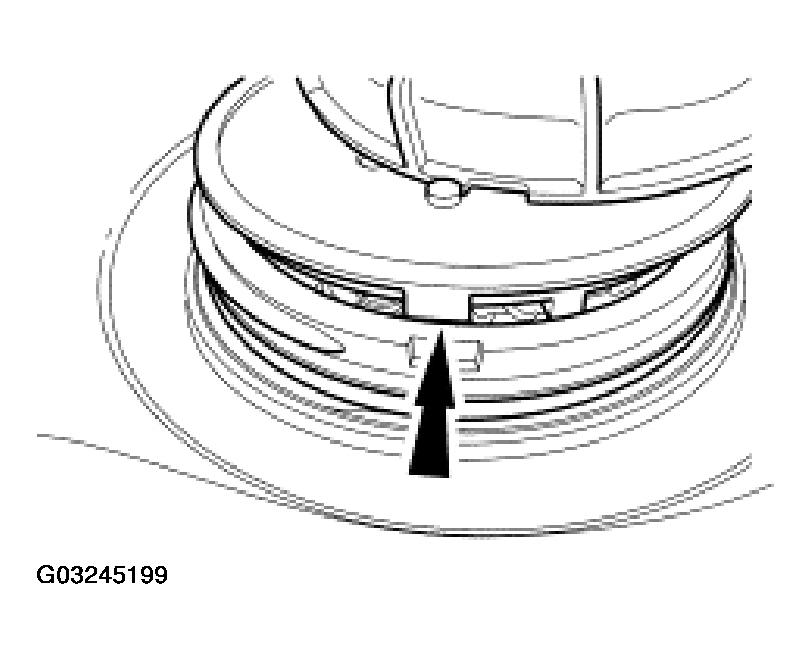

    Fig 1: Aligning Locator Tabs
    G03245199Courtesy of FORD MOTOR CO.
