Ignition Switch C250

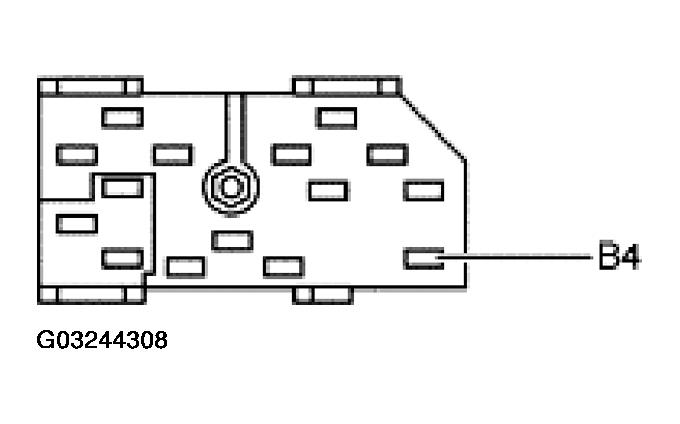

Fig 1: Identifying Ignition Switch C250 Terminals

Courtesy of FORD MOTOR CO.

IGNITION SWITCH C250 - CIRCUIT DESIGNATION/DESCRIPTION

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
B4	CKT 1050 (LG/VT) voltage feed to ignition switch	Greater than 10 volts at all times.
