Air Cleaner Assembly: Notes

  1. Remove the parts in the order indicated in Fig 1 and table.
    PART REMOVAL SEQUENCE

    Part Steps
    Air cleaner outlet pipe 1-4
    Air cleaner element 1,2, 5-8
    Air cleaner assembly 1-5, 9, 10

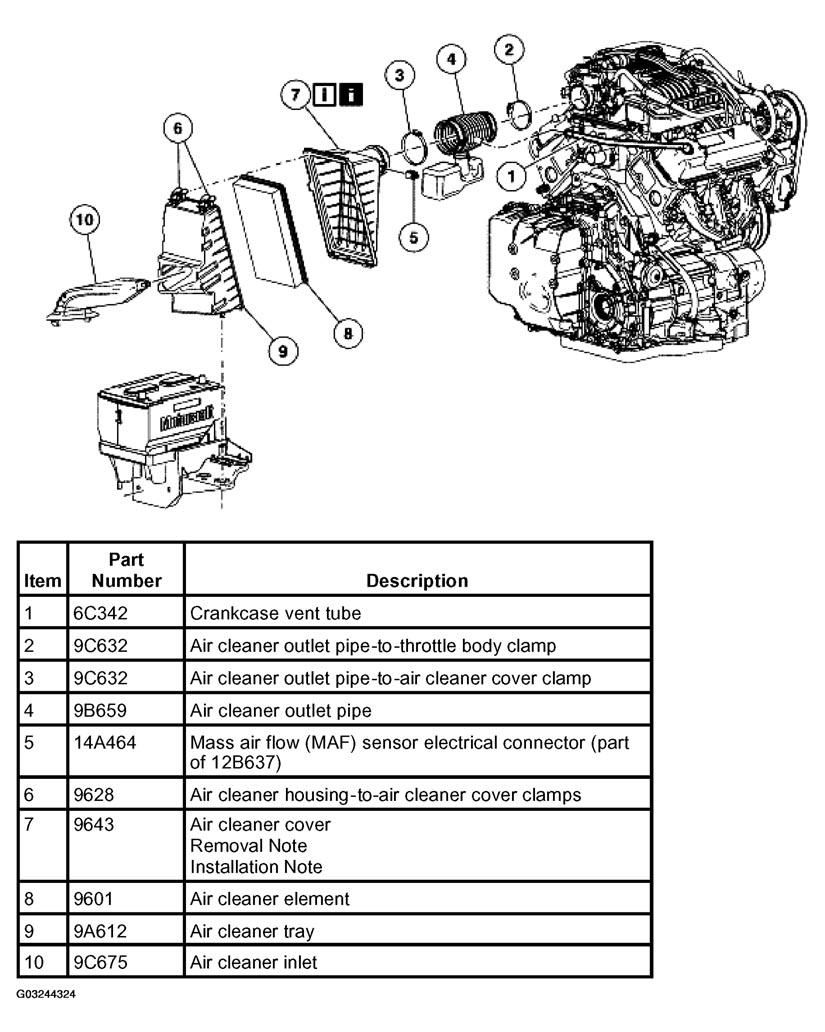

    Fig 1: Air Cleaner Assembly Removal Sequence
    G03244324Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
