Main Control Valves

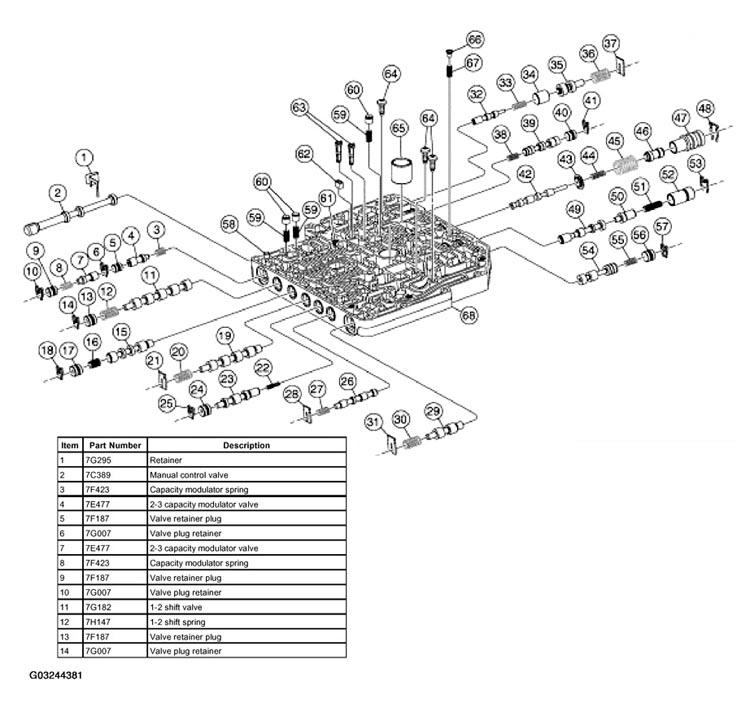

Fig 1: Identifying Main Control Valves Components (Items 1-14)
G03244381Courtesy of FORD MOTOR CO.

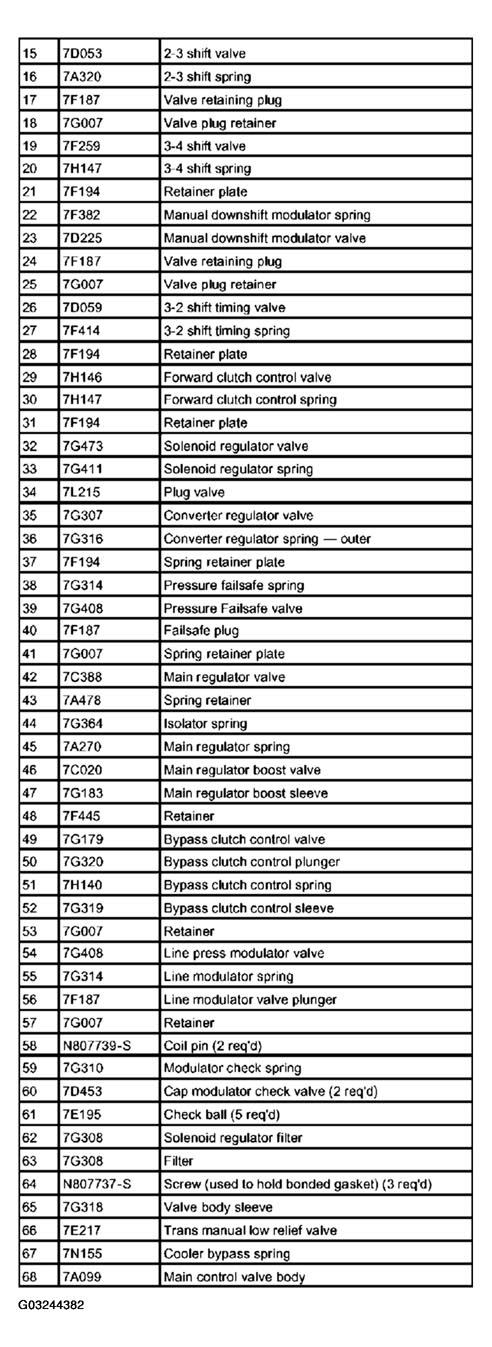

Fig 2: Identifying Main Control Valves Components (Items 15-68)
G03244382Courtesy of FORD MOTOR CO.
