FixVault
Home
›
Ford
›
2004
›
Mustang Base, 2D Convertible, 3.9 6, Automatic
›
Repair and Diagnosis
›
Accessories & Equipment
›
Accessories Control Systems
›
Component Testing
›
Component Testing
›
MULTIFUNCTION Switch, Lamp Portion
MULTIFUNCTION Switch, Lamp Portion

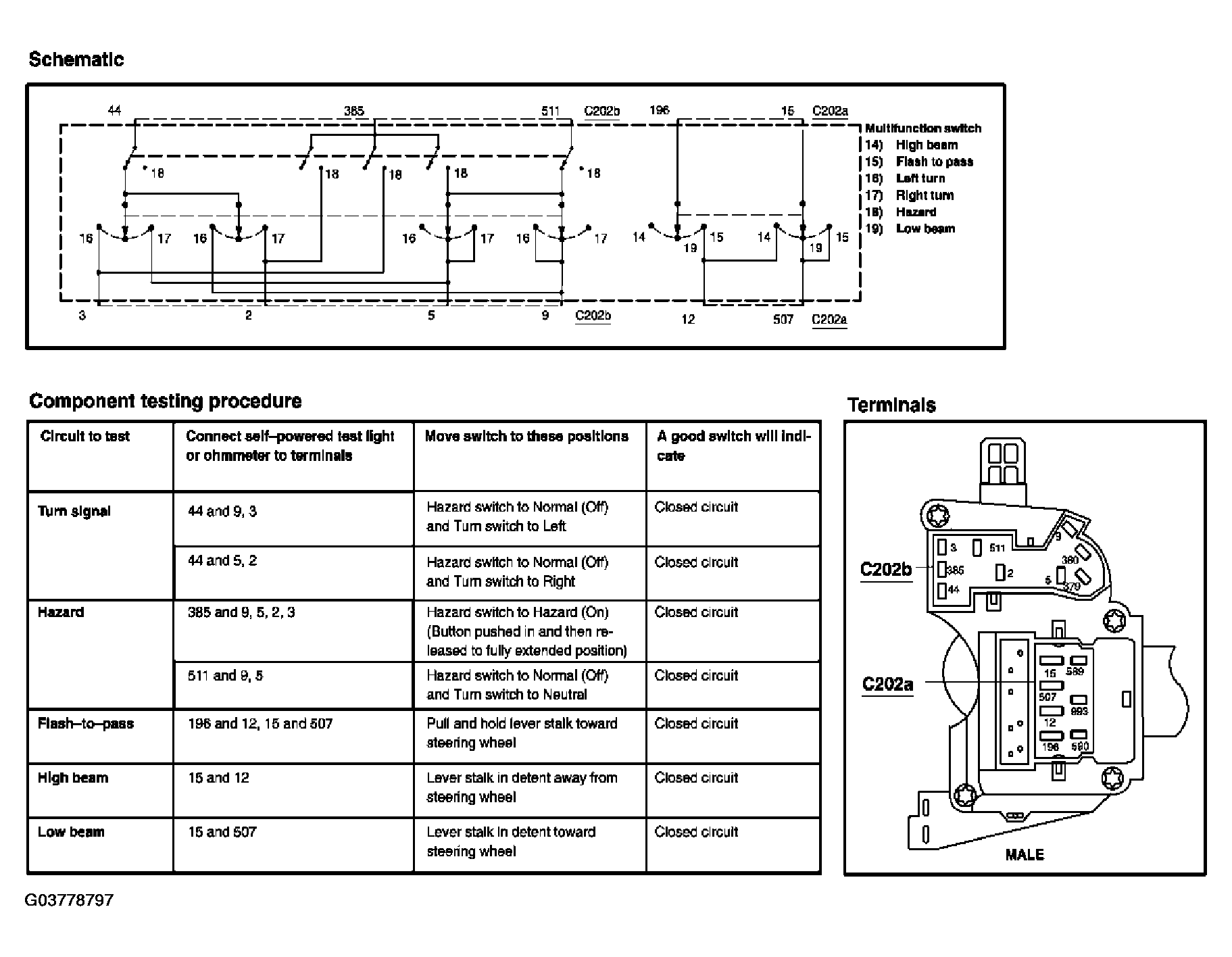

Fig 1: Testing Multifunction Switch, Lamp Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
