Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

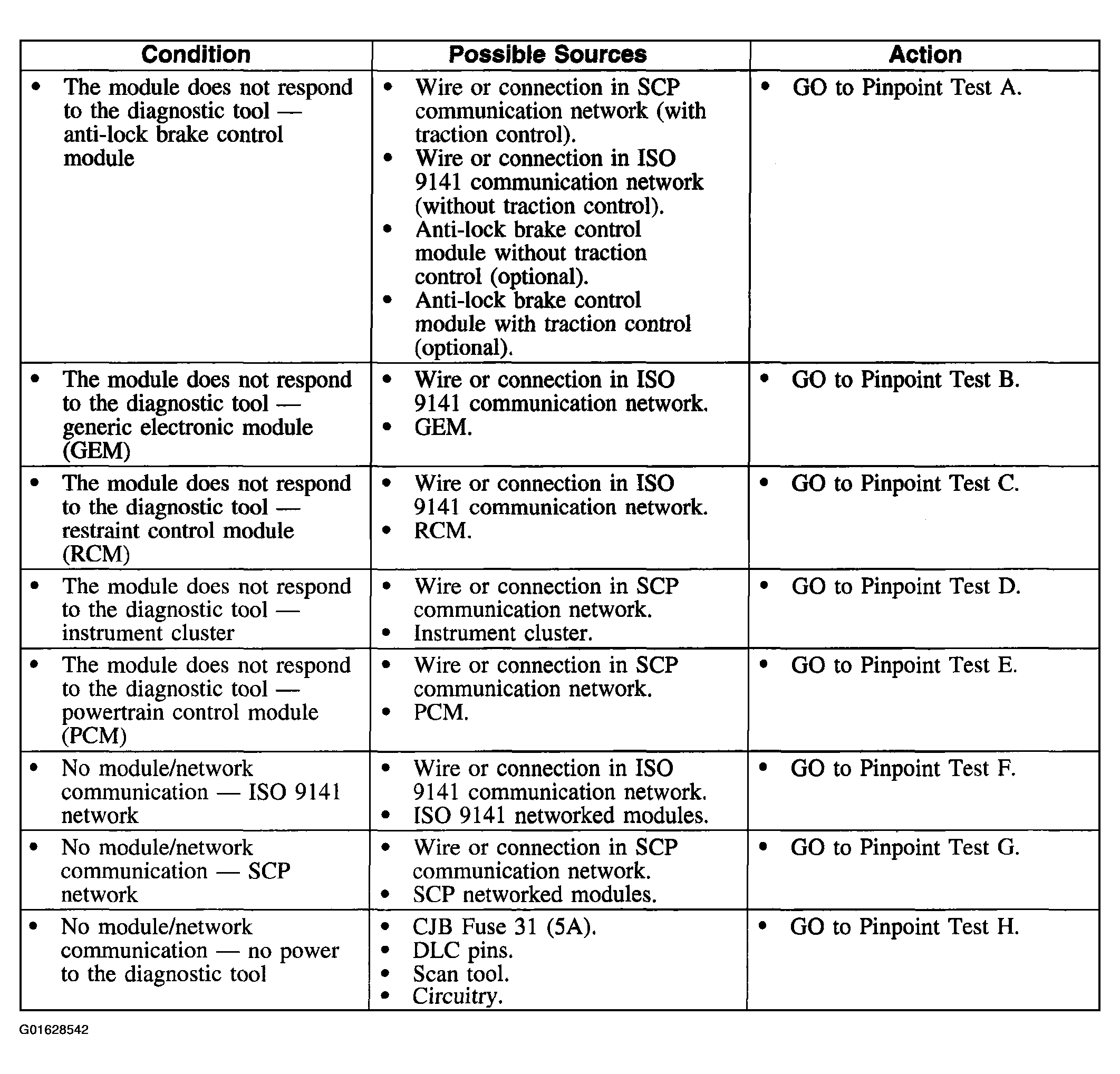

Fig 1: Identifying Symptom Chart
G01628542Courtesy of FORD MOTOR CO.
