Spring Codes

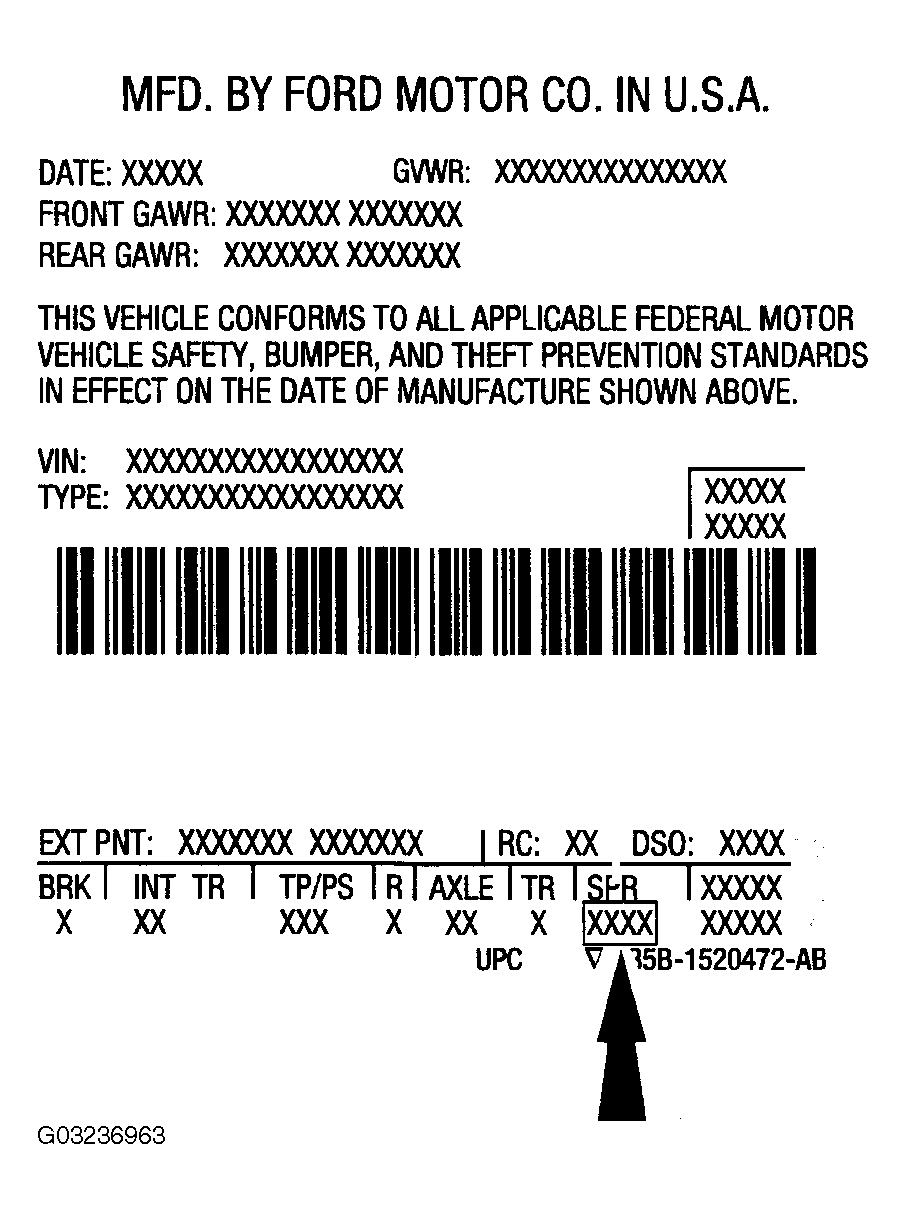

Fig 1: Locating Spring Codes

Courtesy of FORD MOTOR CO.

The spring code portion of the vehicle certification (VC) label identifies both the front and rear springs. The first letter/number indicates the front spring code. The second letter/number indicates the rear spring code.

• Front springs - base part number - 5310 (RH/LH)
• Rear springs - base part number - 5560 (RH/LH)
