Hydraulic Control Unit: Installation

NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to BLEEDING BRAKE SYSTEM .

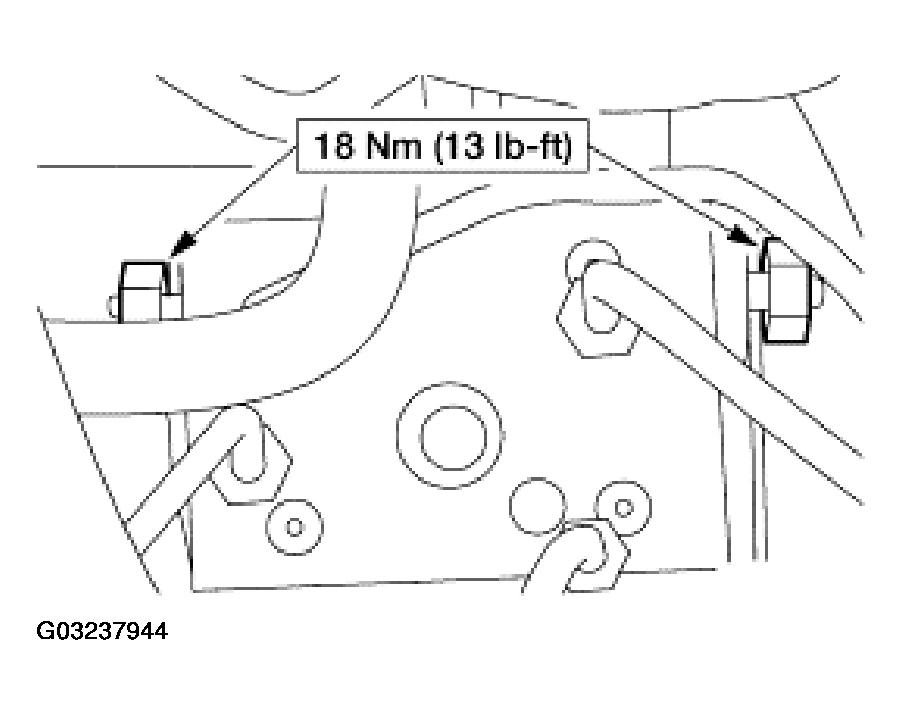

Fig 1: Installing Anti-Lock-Brake Control Module (1 Of 2)

Courtesy of FORD MOTOR CO.

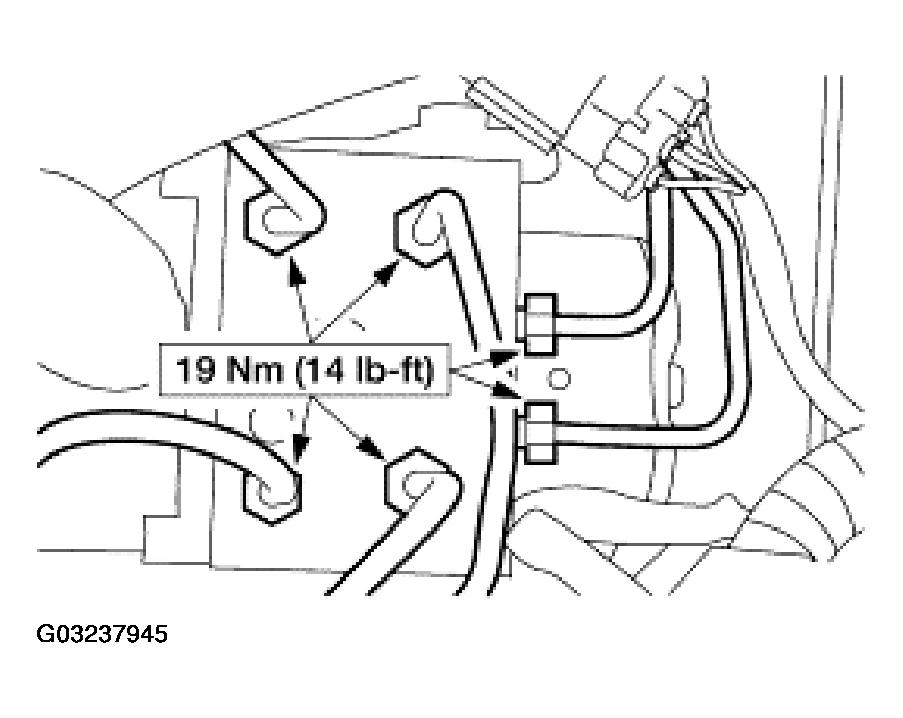

Fig 2: Installing Anti-Lock-Brake Control Module (2 Of 2)

Courtesy of FORD MOTOR CO.
