Master Window/Door Lock/Unlock Switch, Convertible

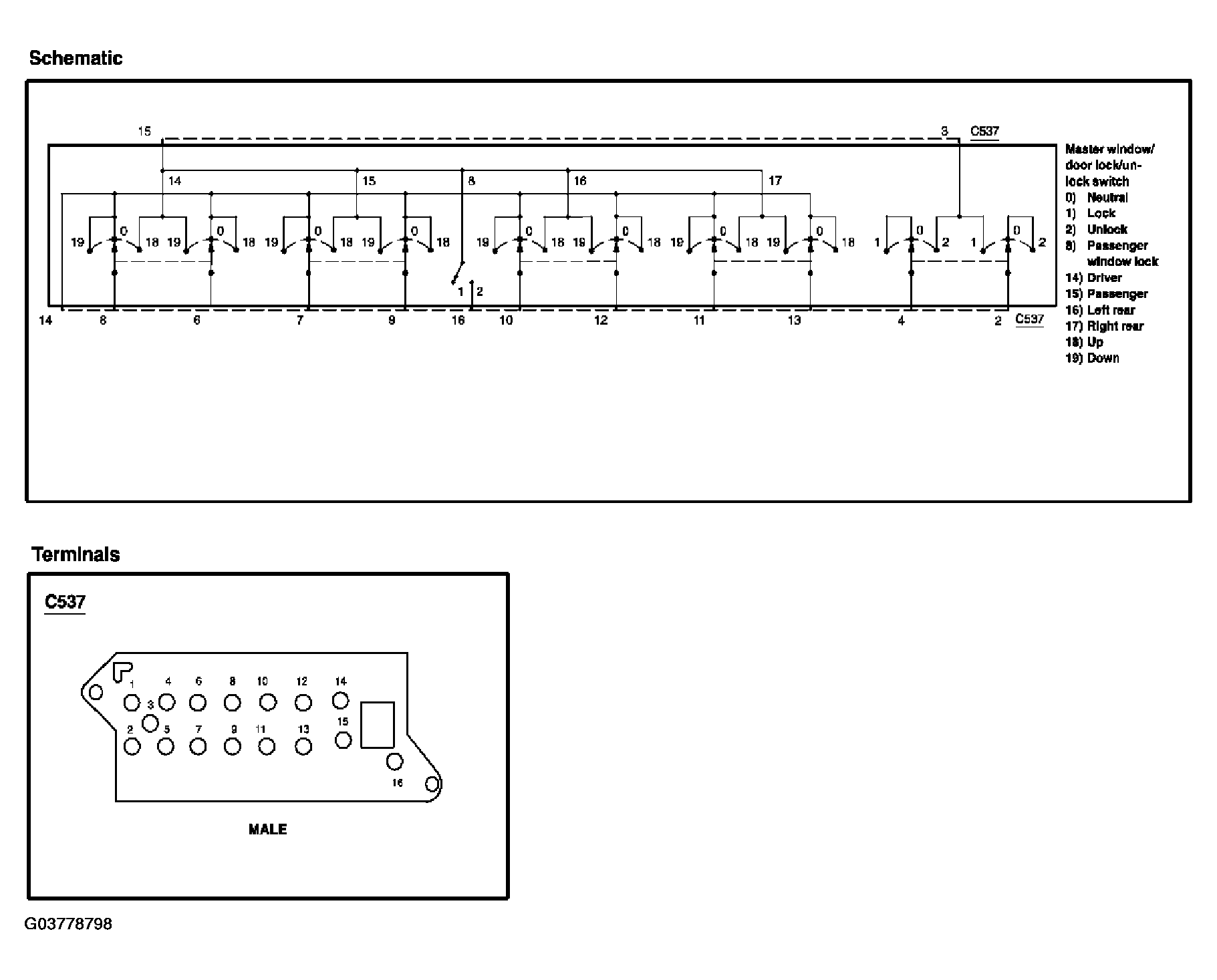

Fig 1: Testing Master Window/Door Lock/Unlock Switch, Convertible (1 Of 2)
G03778798Courtesy of FORD MOTOR CO.

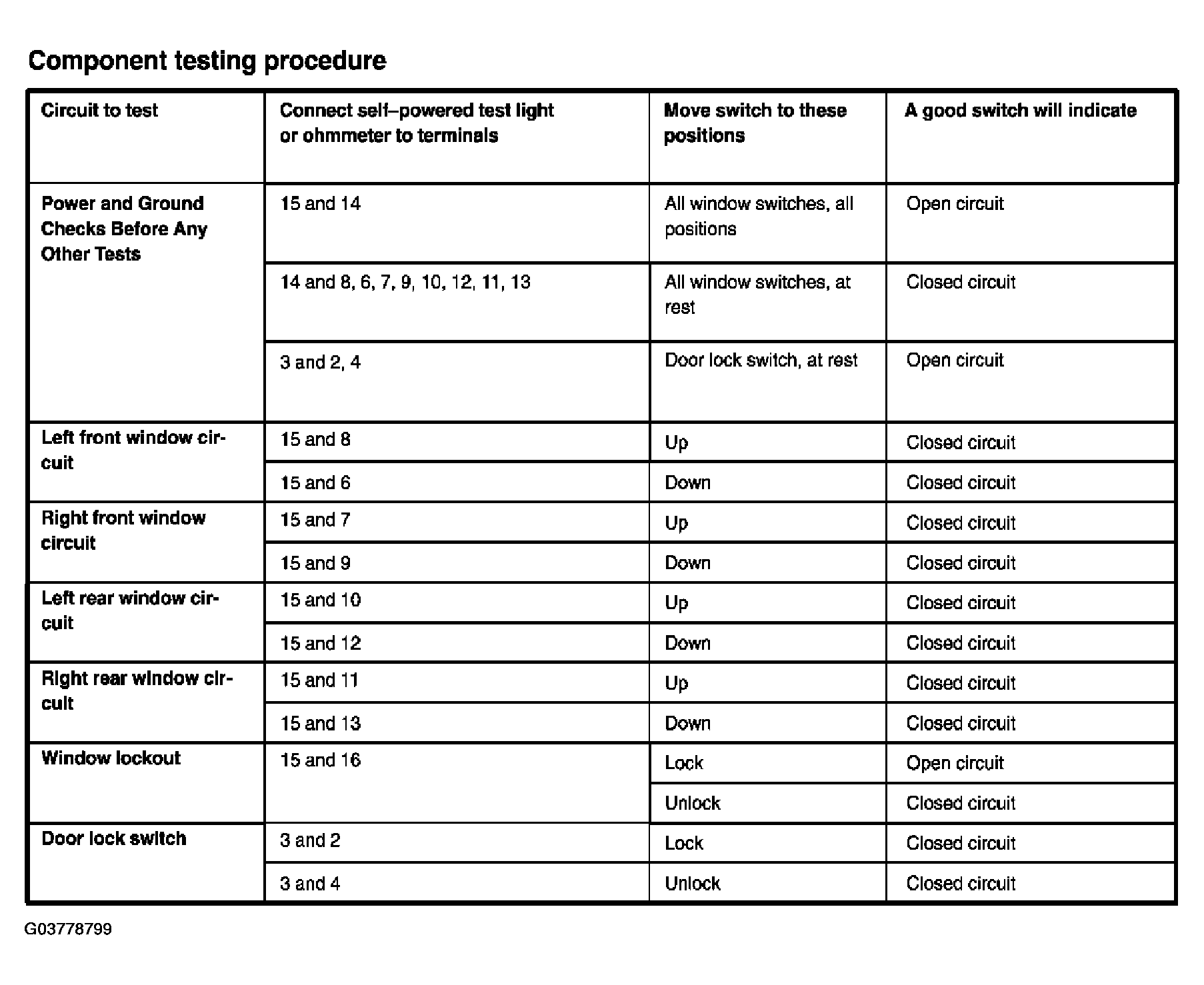

Fig 2: Testing Master Window/Door Lock/Unlock Switch, Convertible (2 Of 2)
G03778799Courtesy of FORD MOTOR CO.
