Removal And Installation: Module: Removal

  1. Remove the hydraulic control unit (HCU). REFER to HYDRAULIC CONTROL UNIT .
  2. Remove the pump motor electrical connector.

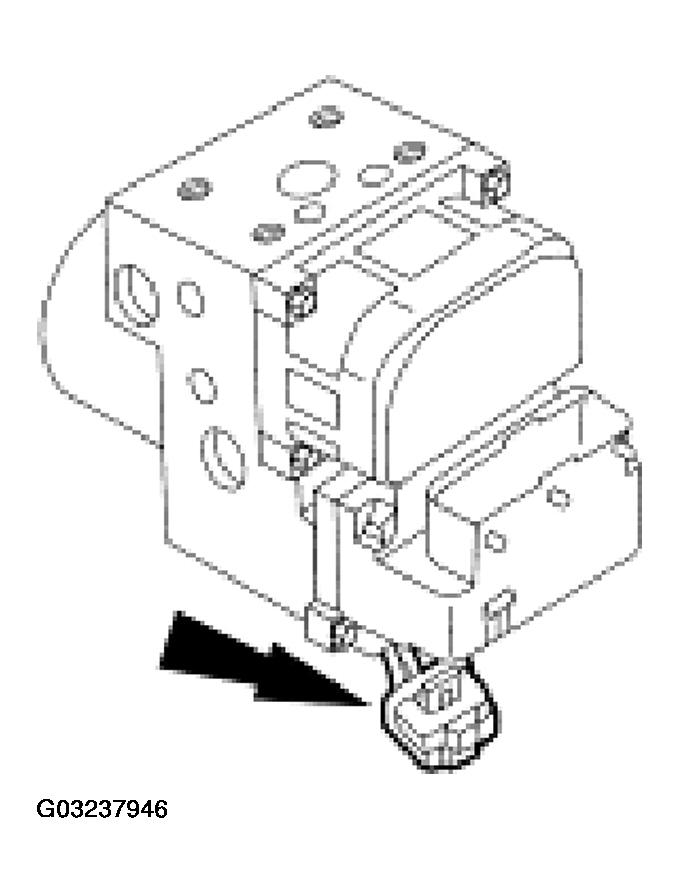

    Fig 1: Removing Pump Motor Electrical Connector
    G03237946Courtesy of FORD MOTOR CO.
  3. Remove the anti-lock-brake control module screws.

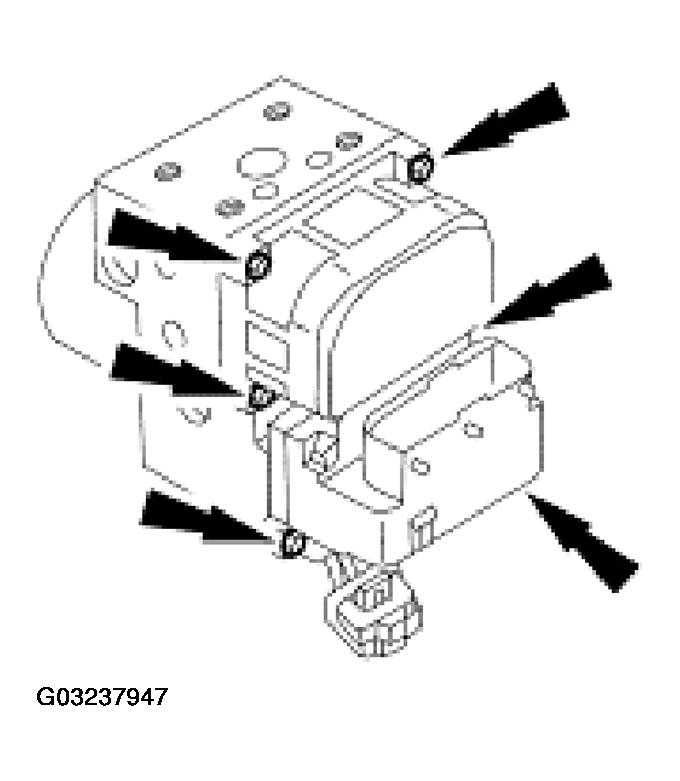

    Fig 2: Removing Anti-Lock-Brake Control Module From HCU
    G03237947Courtesy of FORD MOTOR CO.
  4. Remove the anti-lock-brake control module from the HCU.
