Piston - Diameter

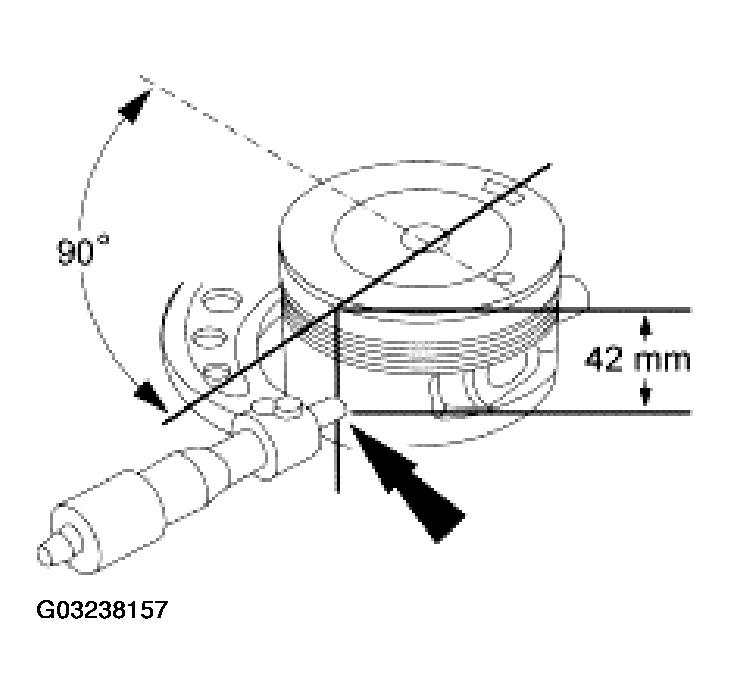

- Measure the piston diameter 90 degrees from the piston pin and 42 mm down from the top of the piston at the point indicated. Refer to ENGINE- 3.8L & 3.9L
or ENGINE- 4.6L (2V)
or ENGINE- COBRA 4.6L (4V)
or ENGINE - MACH1 4.6L (4V)
for the procedure
.
- If out of specification, install new components as necessary. Refer to ENGINE- 3.8L & 3.9L or ENGINE- 4.6L (2V) or ENGINE- COBRA 4.6L (4V) or ENGINE - MACH1 4.6L (4V) for the procedure .
