Fuel Line Fittings-Push Connect: Connect

NOTE: Lubricate the tube end with clean engine oil to ease assembly.

Connect the fitting.
- Align the tube to the fitting and push until you hear a click.

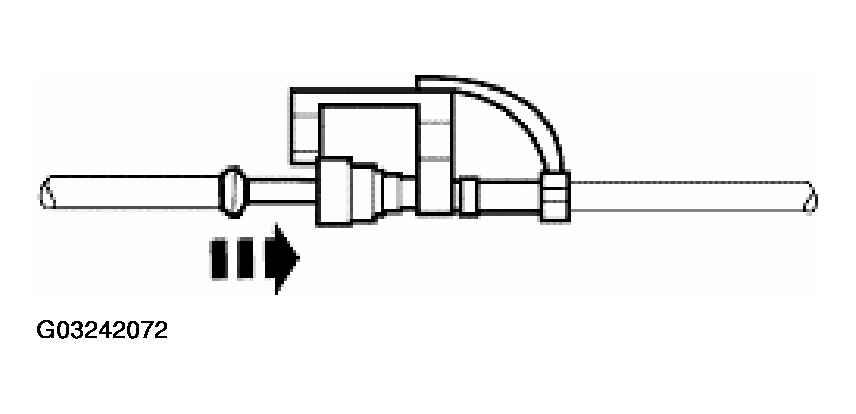

  Fig 1: Connecting Fitting
  Courtesy of FORD MOTOR CO.
Pull on the fitting to make sure it is fully engaged, then install the safety clip.

Fig 2: Installing Safety Clip
Courtesy of FORD MOTOR CO.
