Timing Chain: Removal

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing cover. For additional information, refer to ENGINE FRONT COVER .

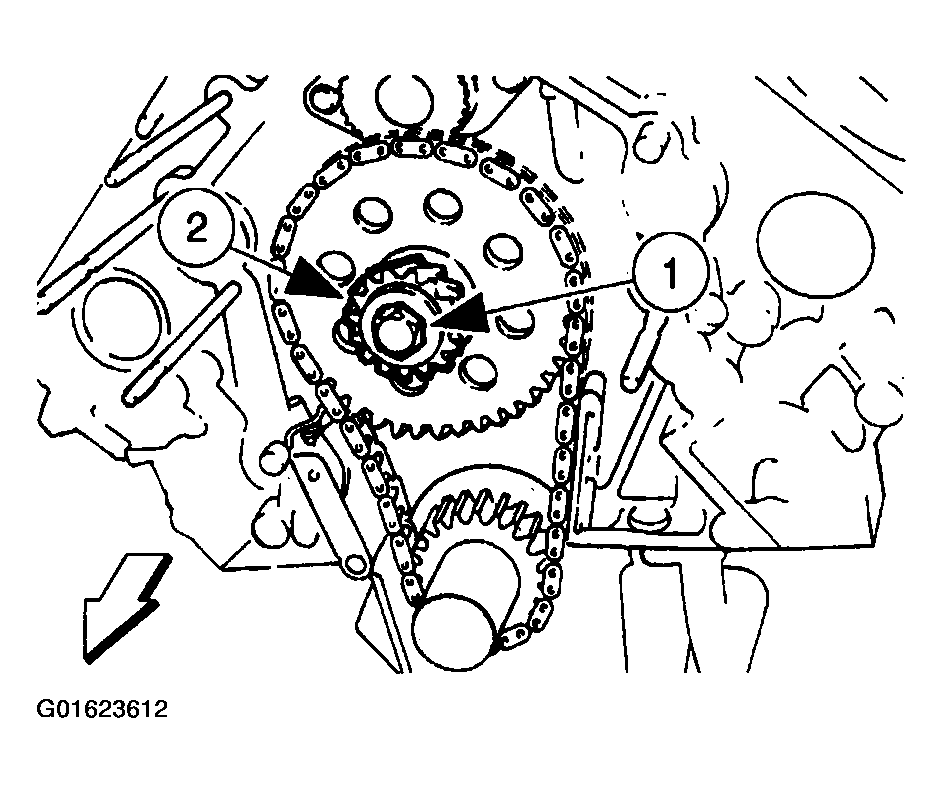

Remove the camshaft position sensor drive gear.
1. Remove the bolt.
2. Remove the camshaft position sensor drive gear.

  Fig 1: Removing Camshaft Position Sensor Drive Gear
  Courtesy of FORD MOTOR CO.

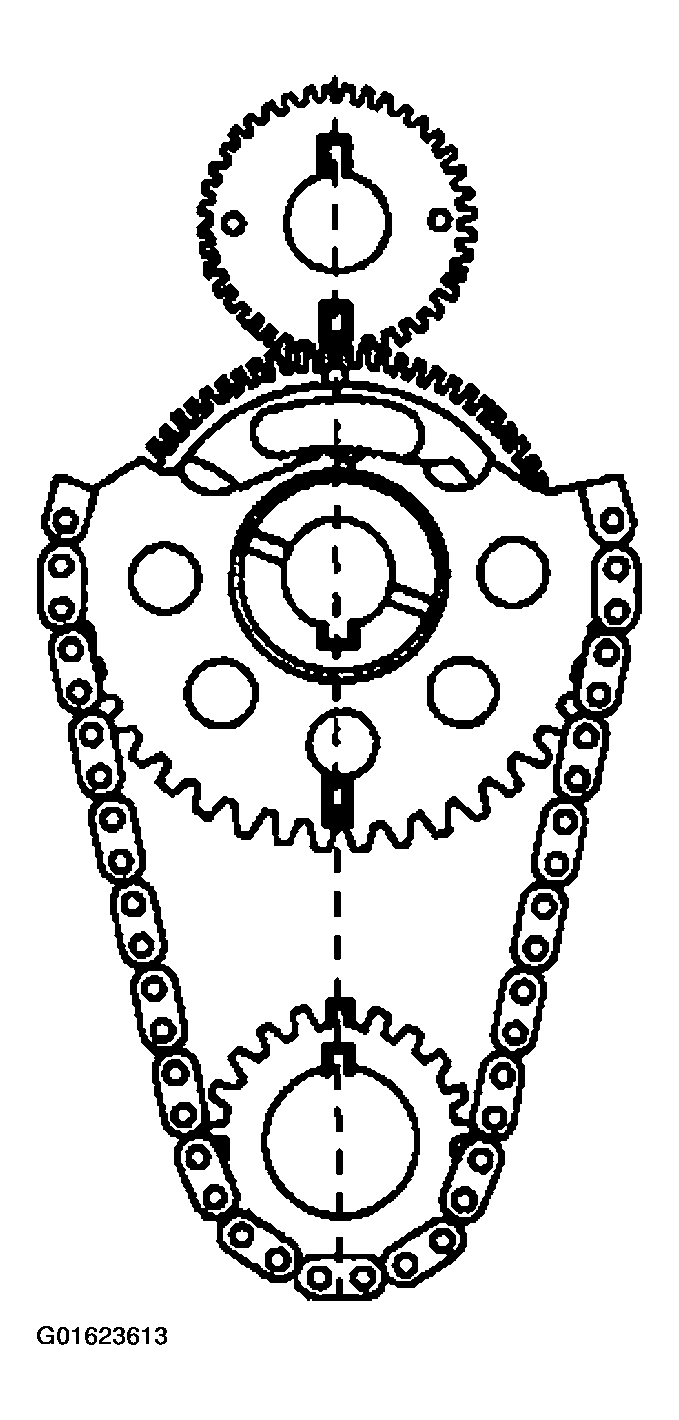

Rotate the crankshaft (6303) until the timing marks and keyways align.

Fig 2: Aligning Timing Marks And Keyway
Courtesy of FORD MOTOR CO.

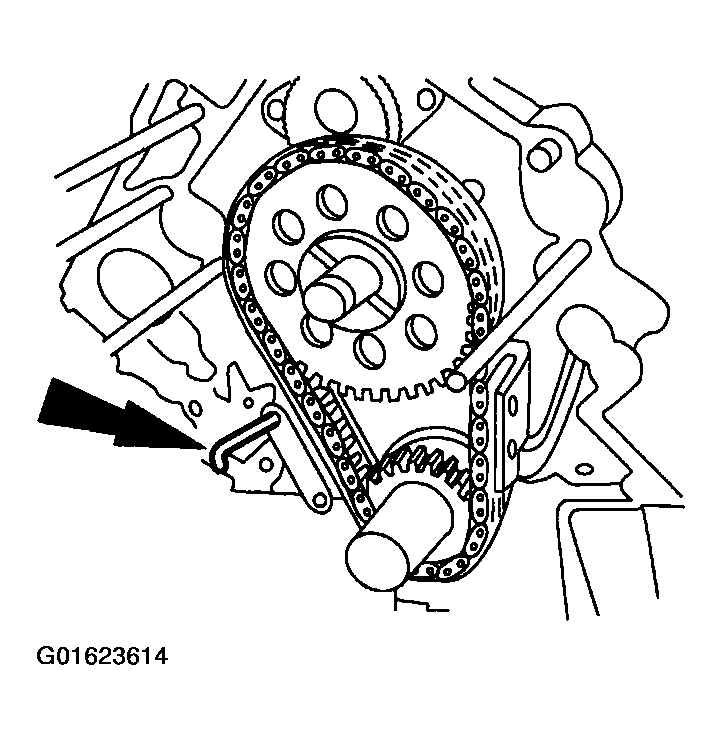

Compress and install a retaining pin to hold the timing chain tensioner (6L266).

Fig 3: Installing Retaining Pin To Hold Timing Chain Tensioner
Courtesy of FORD MOTOR CO.

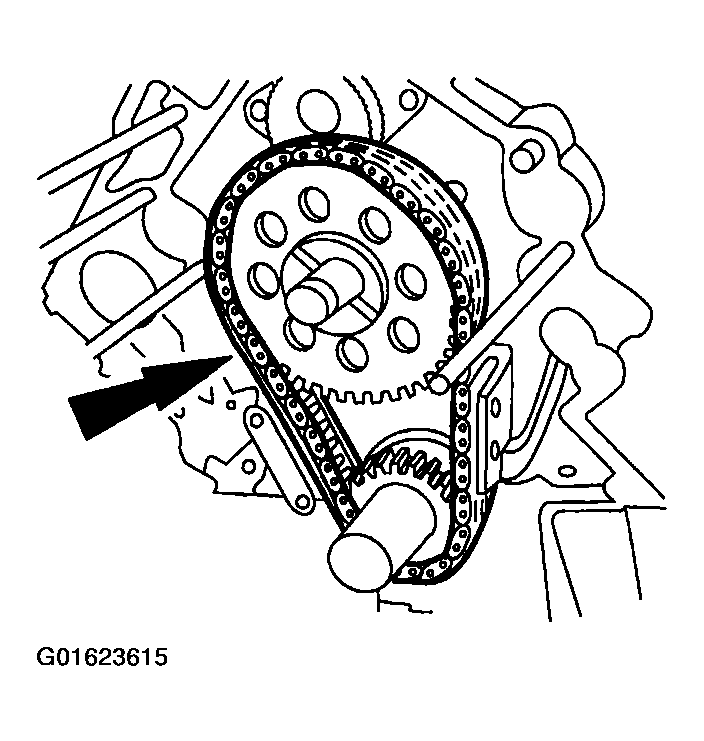

Remove the camshaft sprocket (6256), the crankshaft sprocket (6306) and the timing chain/belt (6268) as an assembly.

Fig 4: Removing Camshaft Sprocket And Timing Chain/Belt As An Assembly
Courtesy of FORD MOTOR CO.

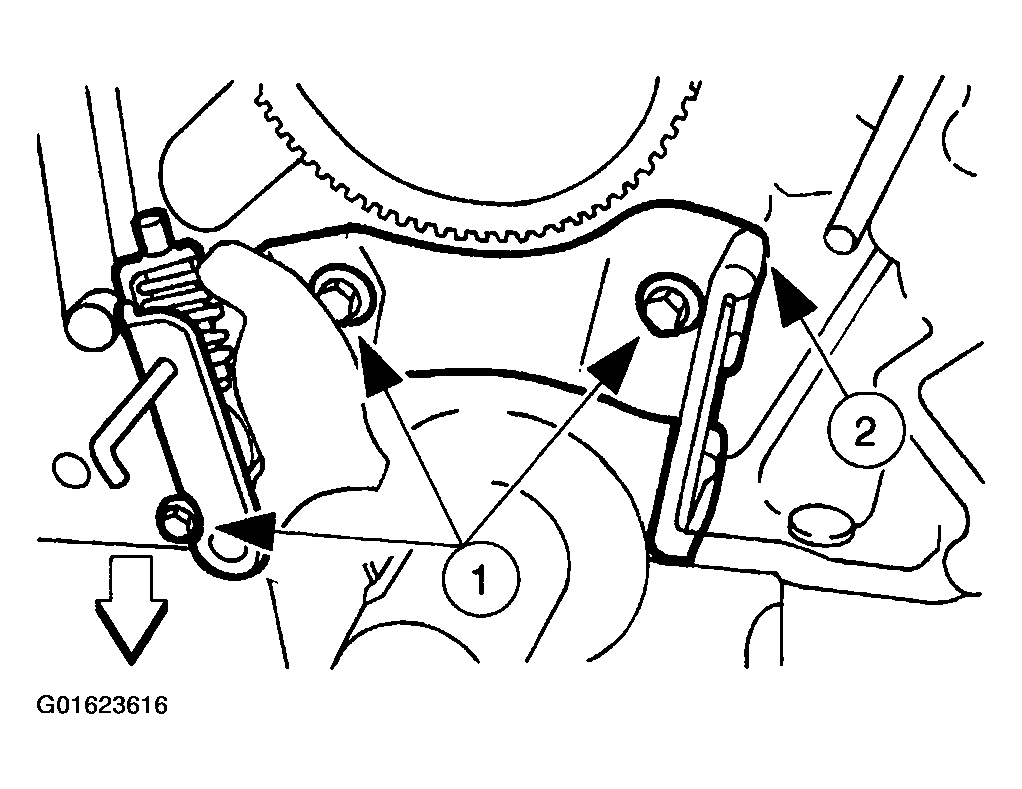

Remove the timing chain tensioner.
1. Remove the bolts.
2. Remove the timing chain tensioner.

  Fig 5: Removing Timing Chain Tensioner
