Selector Lever: Removal

Remove the shifter top control panel.

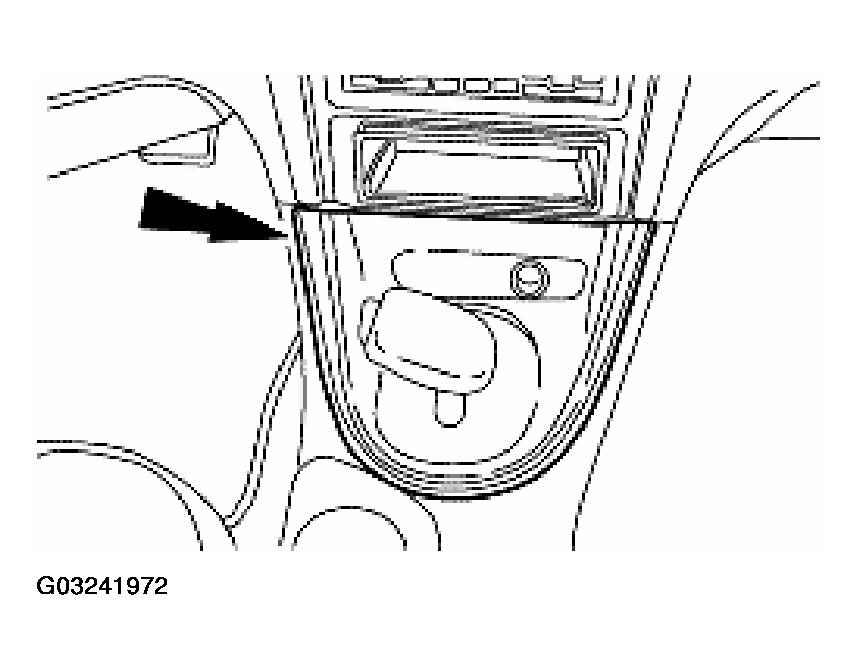

Fig 1: Removing Shifter Top Control Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

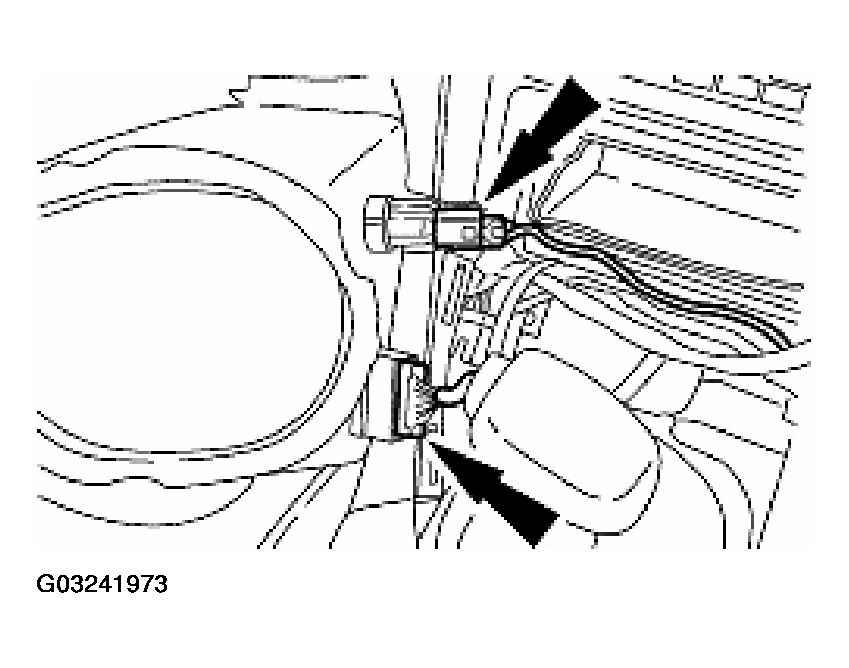

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the shifter bezel.

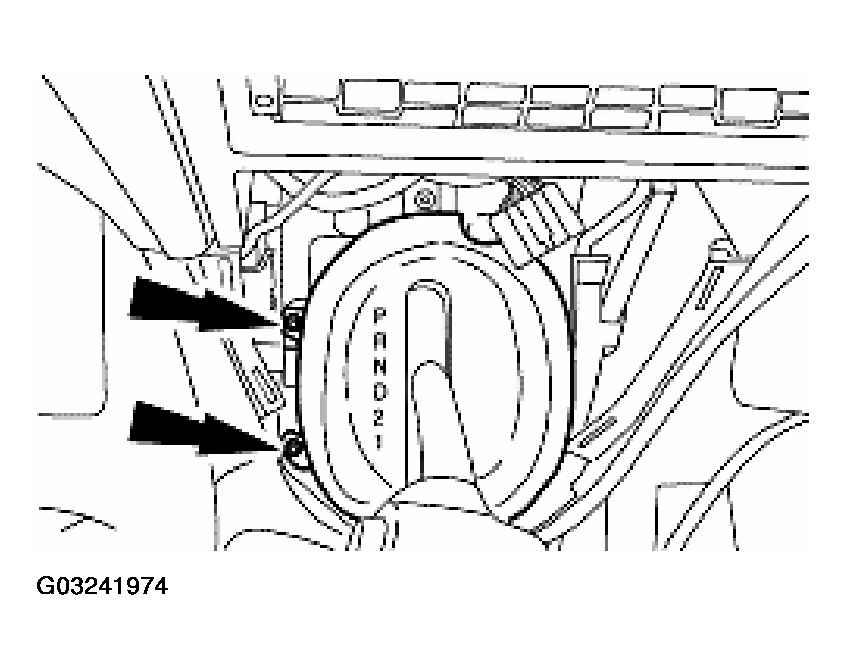

Fig 3: Removing Shifter Bezel
Courtesy of FORD MOTOR CO.
Remove the bulb from the bezel.

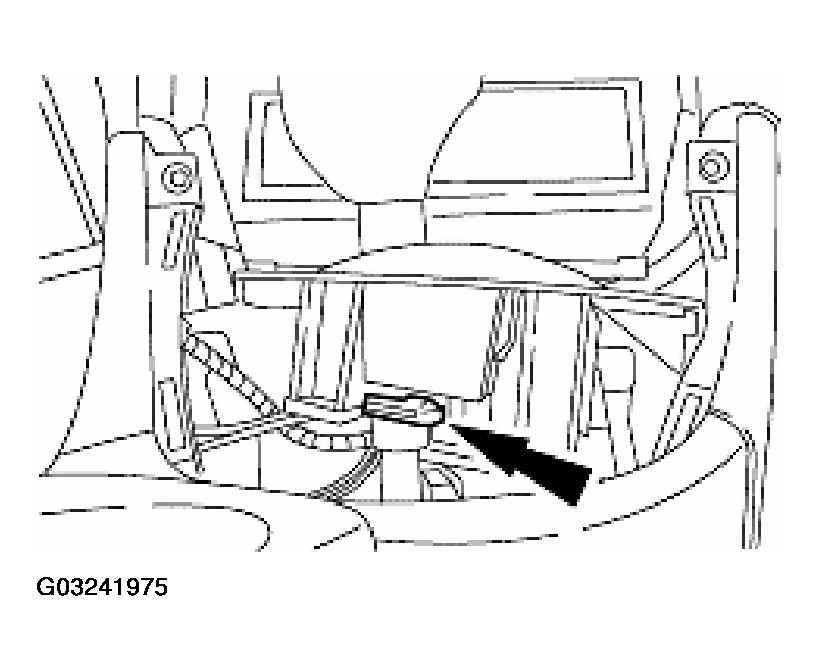

Fig 4: Removing Bulb From Bezel
Courtesy of FORD MOTOR CO.
Disconnect the TCS connector.

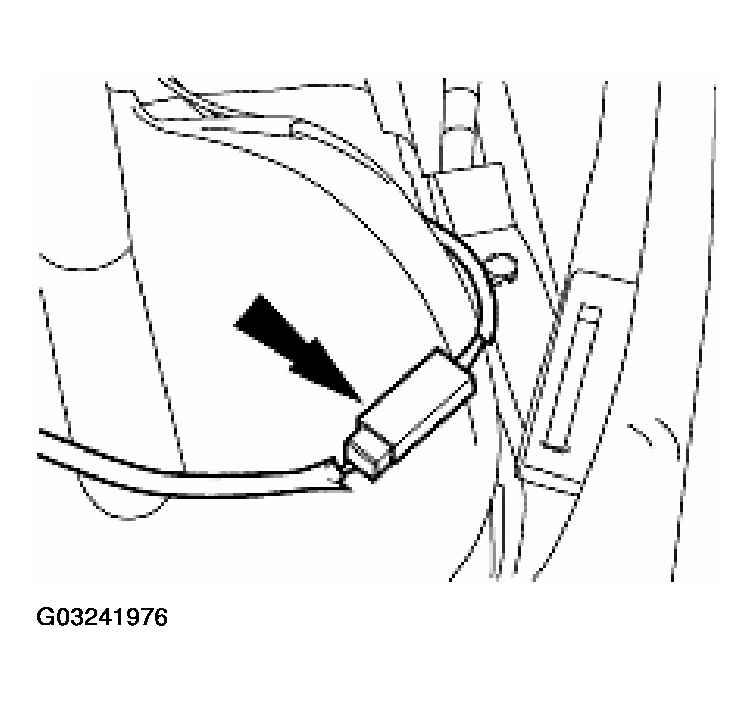

Fig 5: Disconnecting TCS Connector
Courtesy of FORD MOTOR CO.

CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled out of the switch.

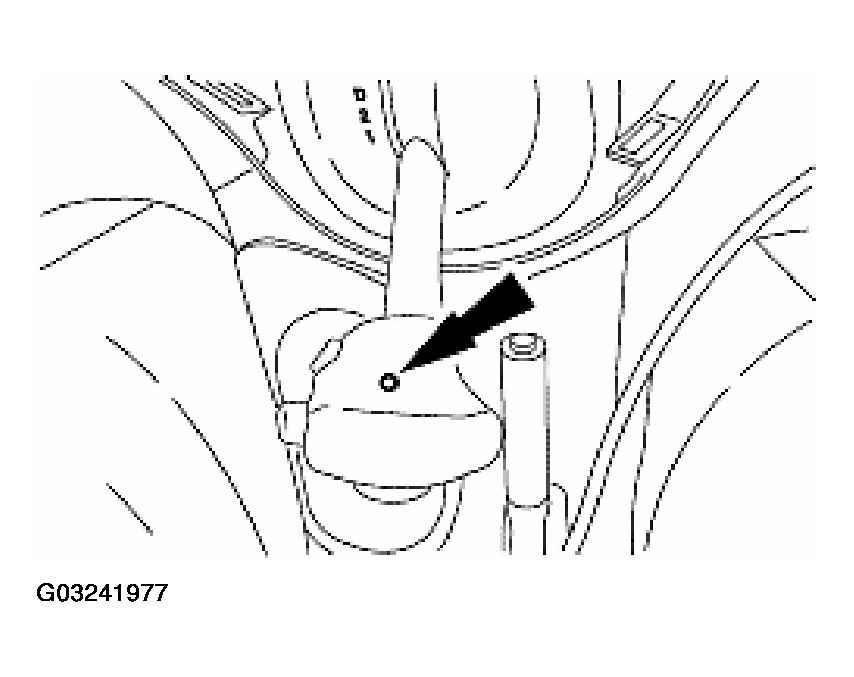

Fig 6: Removing Screw And Handle

Courtesy of FORD MOTOR CO.

Remove the screw and the handle.
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Disconnect the shift cable and discard the plastic clip.

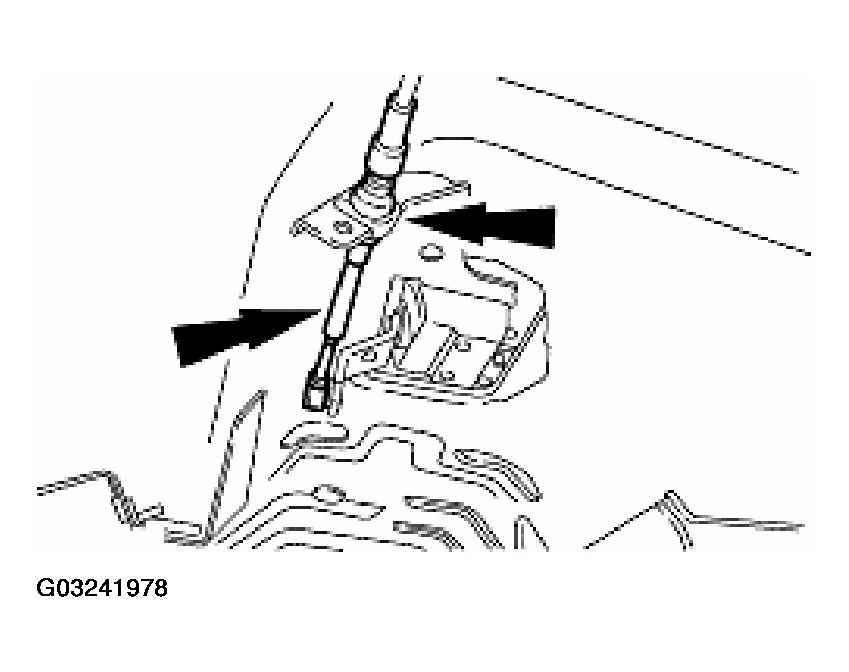

Fig 7: Disconnecting Shift Cable
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the shifter.

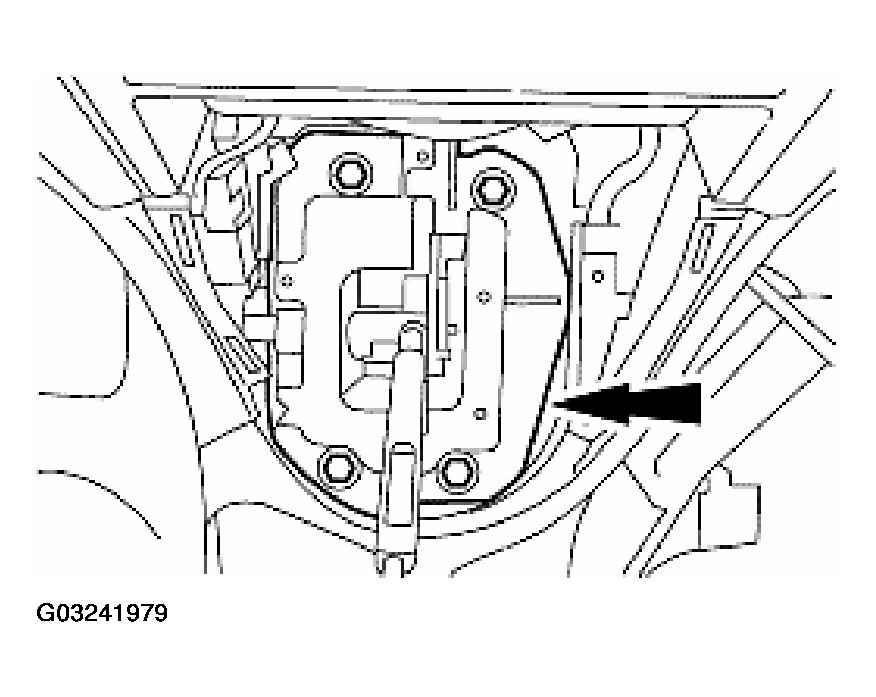

Fig 8: Removing Shifter
Courtesy of FORD MOTOR CO.
