Automatic Transmission - Disassembled View

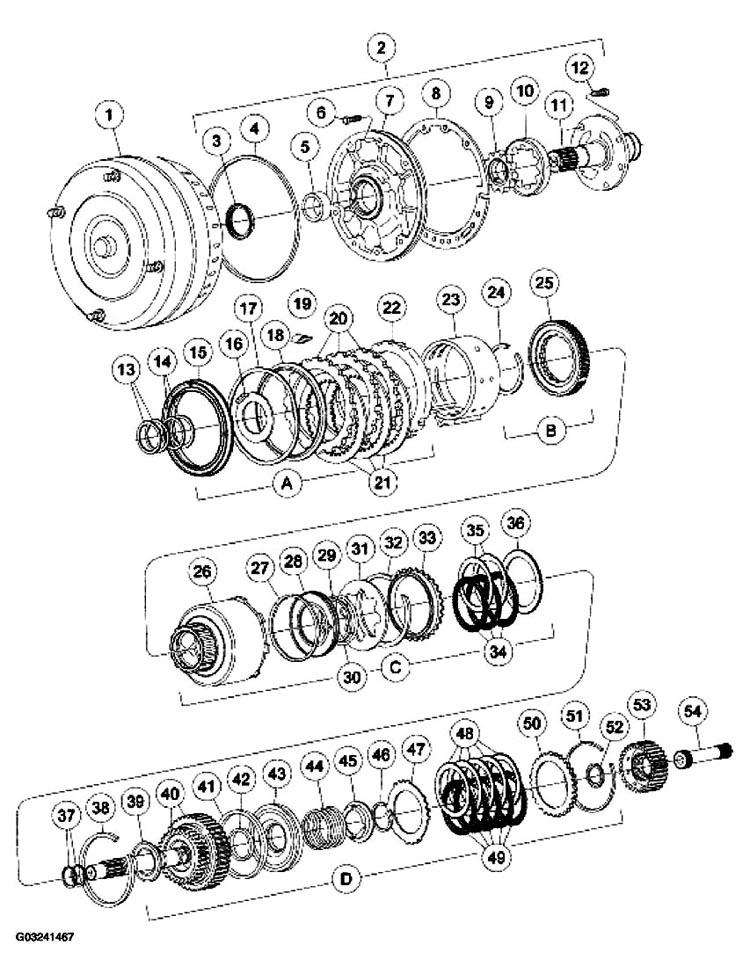

Fig 1: Exploded View Of Automatic Transmission System (1 Of 2)

Courtesy of FORD MOTOR CO.

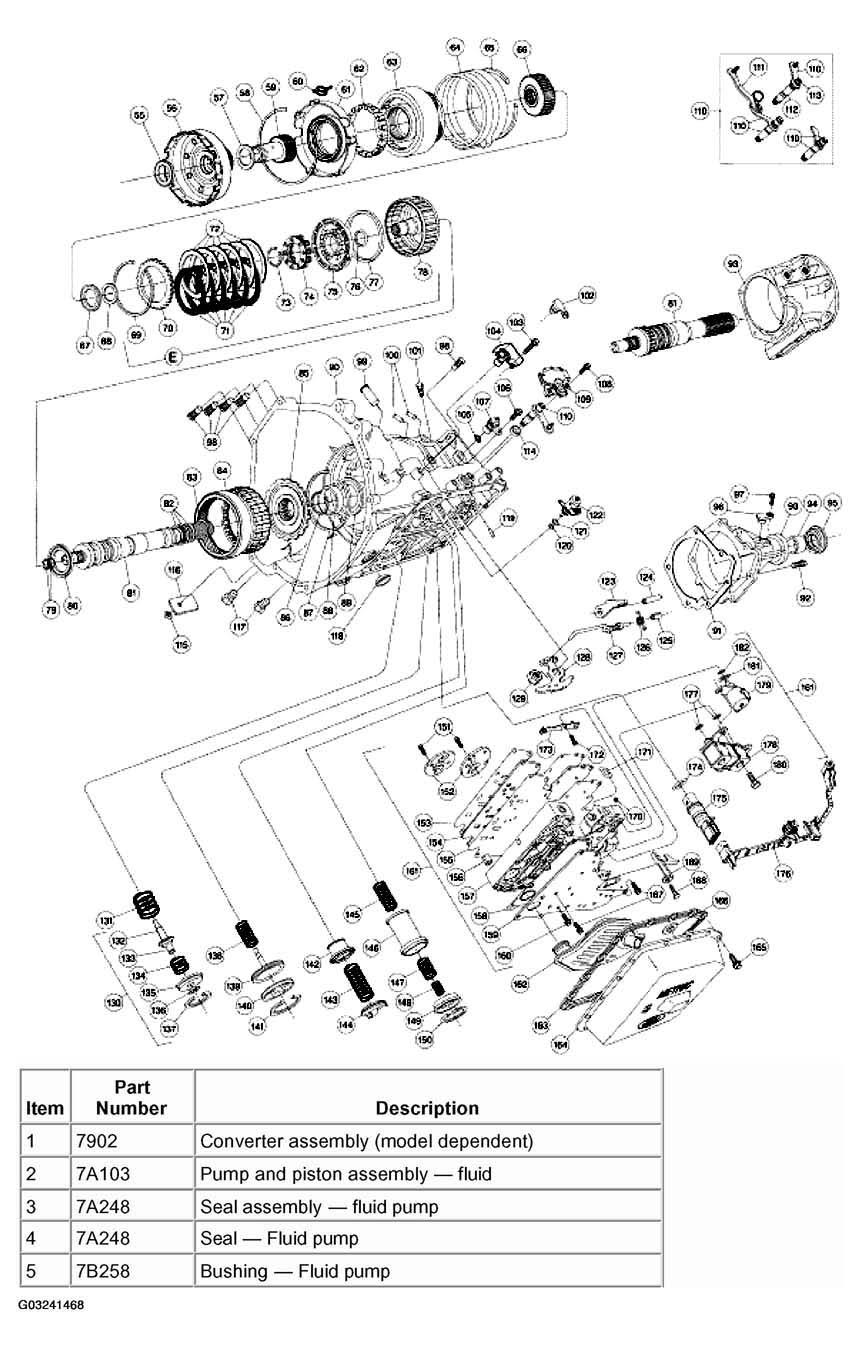

Fig 2: Exploded View Of Automatic Transmission System (2 Of 2) & Legend (Items 1-5)

Courtesy of FORD MOTOR CO.

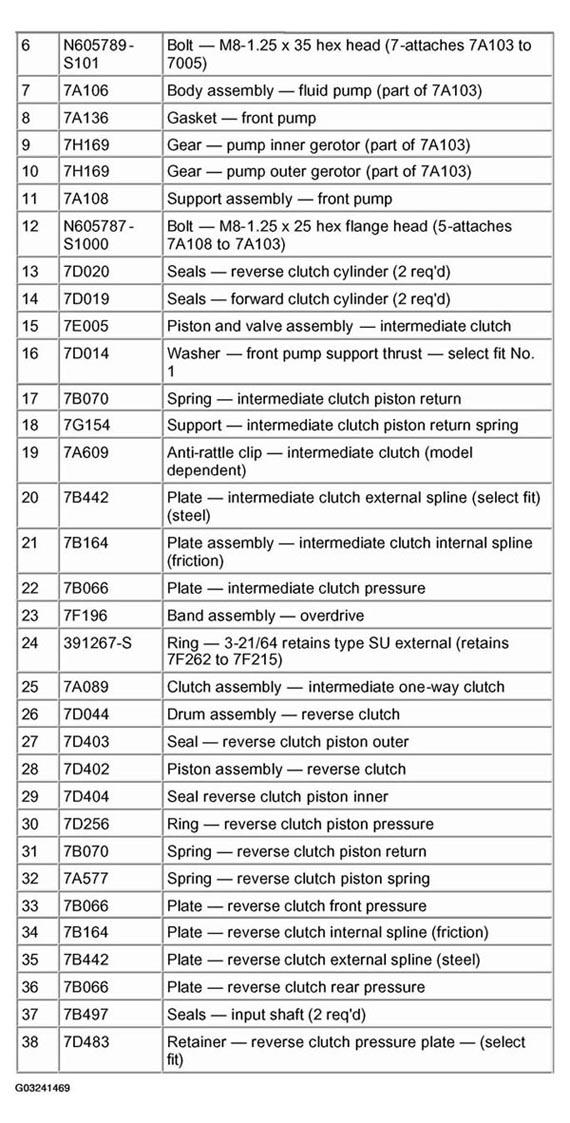

Fig 3: Automatic Transmission System Legend (Items 6-38)

Courtesy of FORD MOTOR CO.

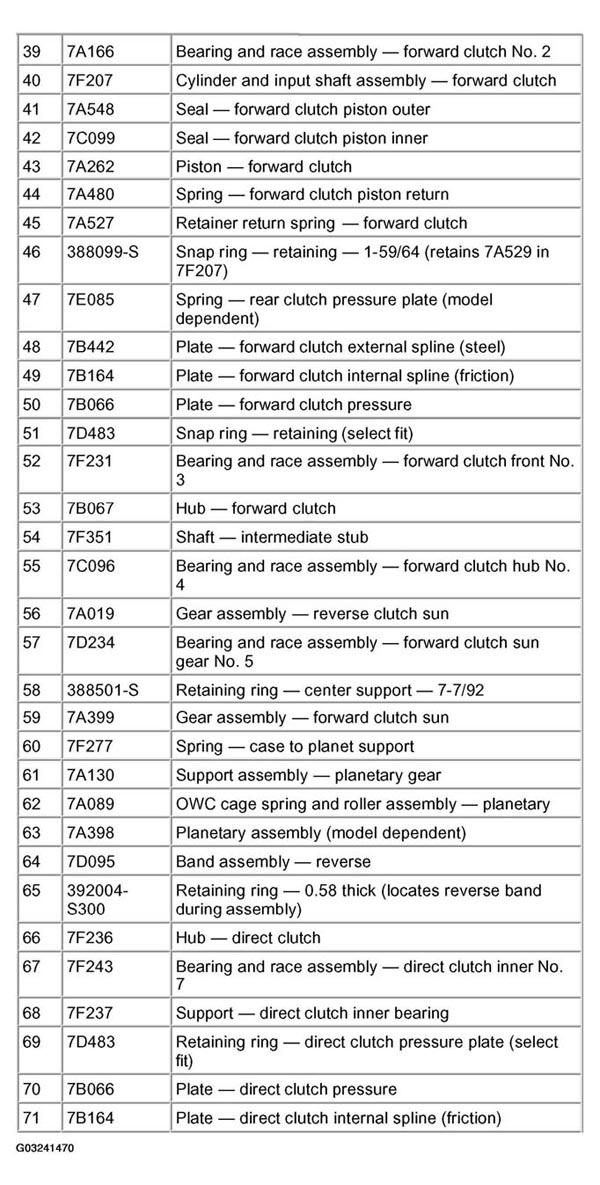

Fig 4: Automatic Transmission System Legend (Items 39-71)

Courtesy of FORD MOTOR CO.

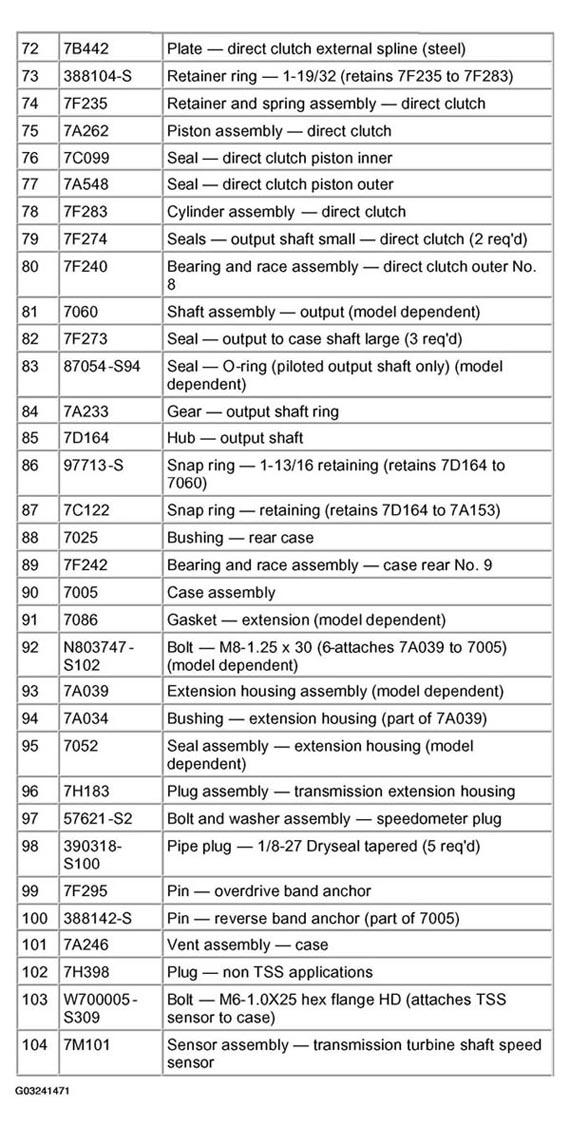

Fig 5: Automatic Transmission System Legend (Items 72-104)

Courtesy of FORD MOTOR CO.

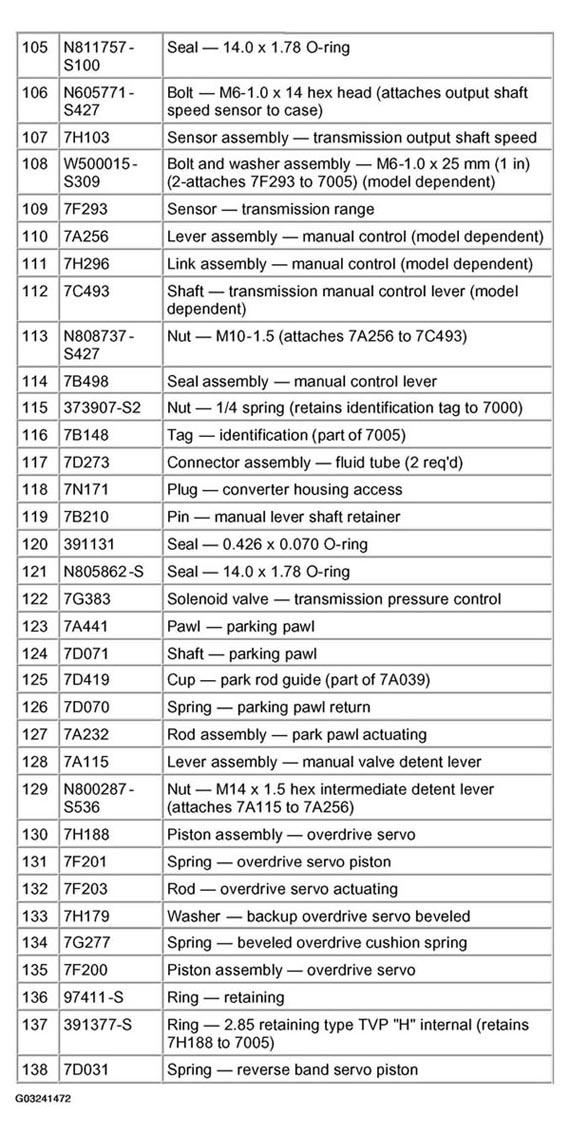

Fig 6: Automatic Transmission System Legend (Items 105-138)

Courtesy of FORD MOTOR CO.

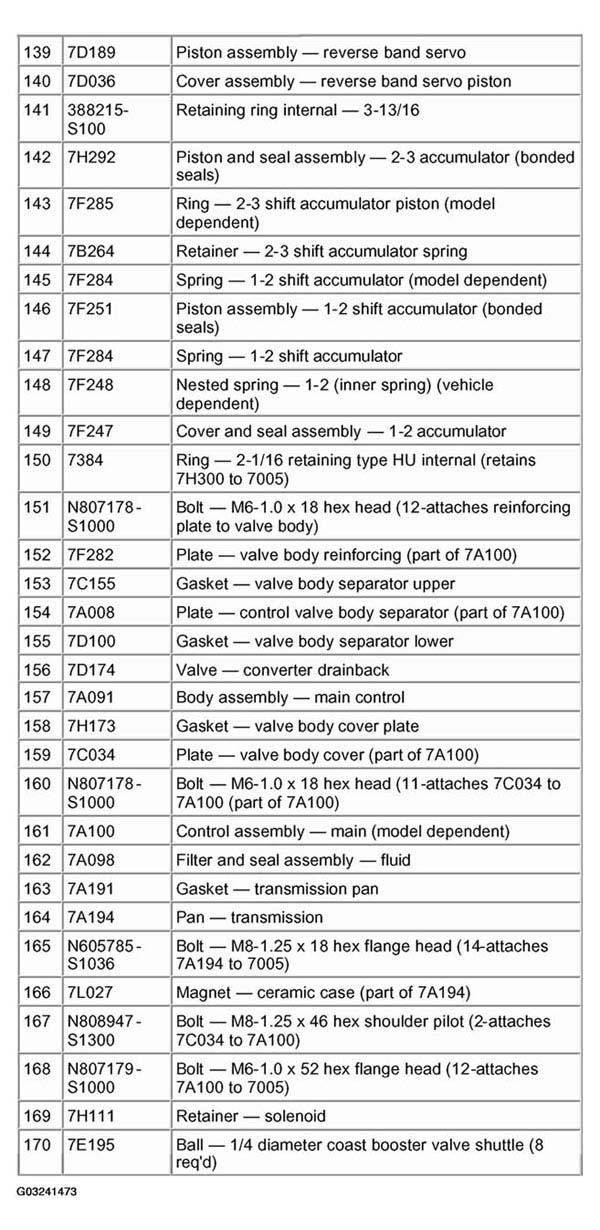

Fig 7: Automatic Transmission System Legend (Items 139-170)

Courtesy of FORD MOTOR CO.

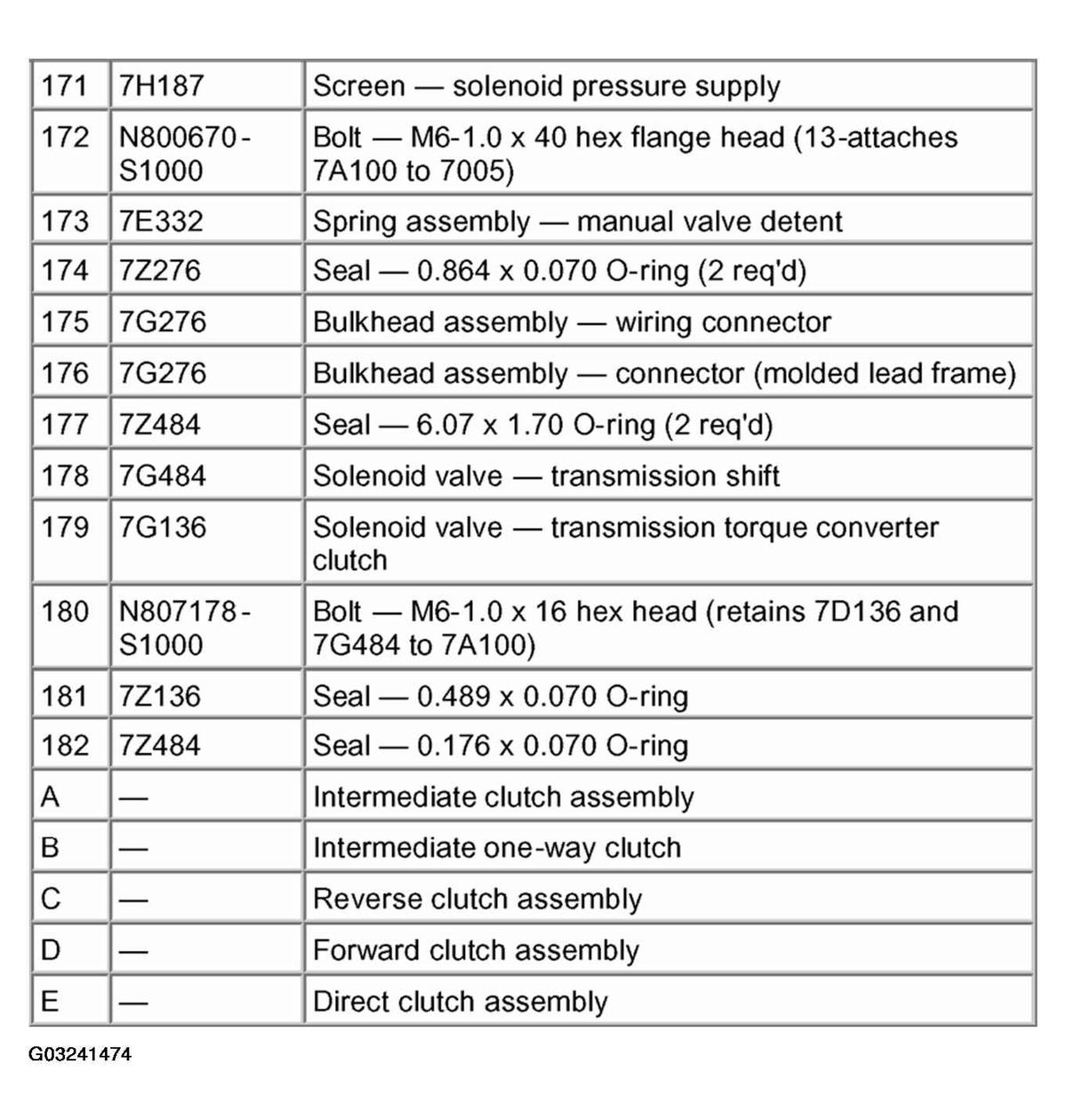

Fig 8: Automatic Transmission System Legend (Items 171-182 & Items A-E)

Courtesy of FORD MOTOR CO.
