Forward Clutch Cylinder: Material

MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic
Transmission Fluid
XT-5-QM		 MERCON® V

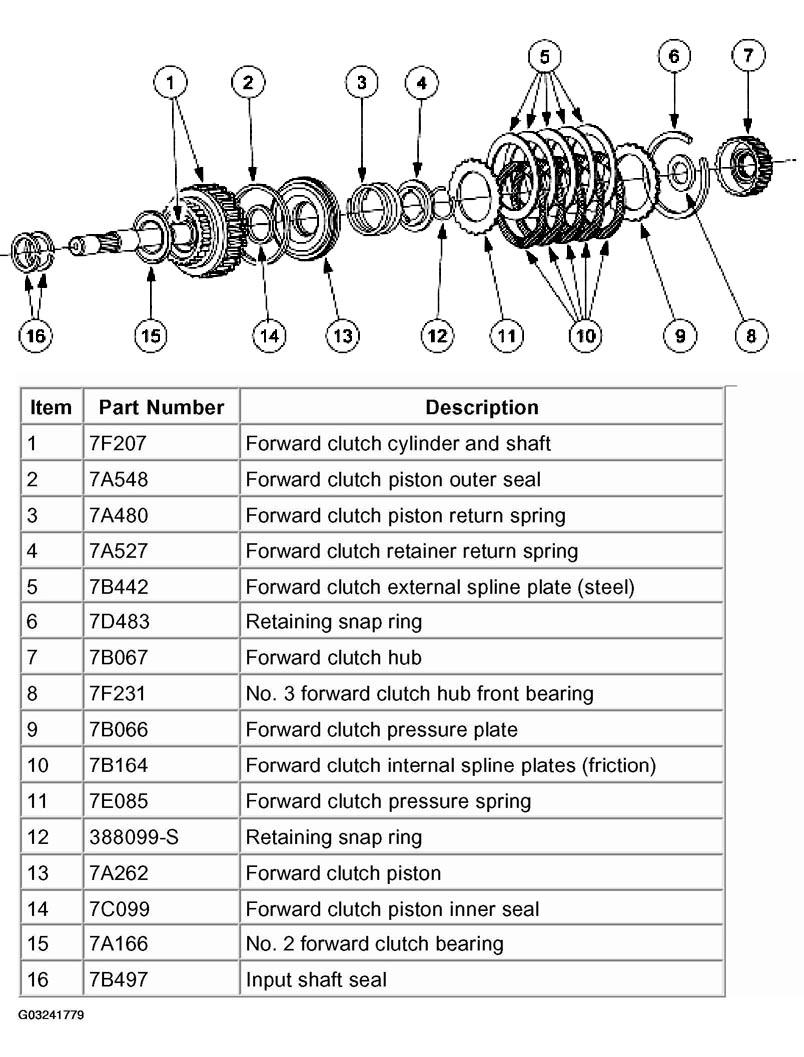

Fig 1: Identifying Forward Clutch Cylinder Components
G03241779Courtesy of FORD MOTOR CO.
