Intermediate One-Way Clutch: Disassembly

    NOTE: One tab that locks the reverse clutch drum into the reverse sun shell may be removed. This is done for balancing purposes.
  1. Remove the intermediate one-way clutch.
    1. Remove the snap ring.
    2. Remove the intermediate one-way clutch.

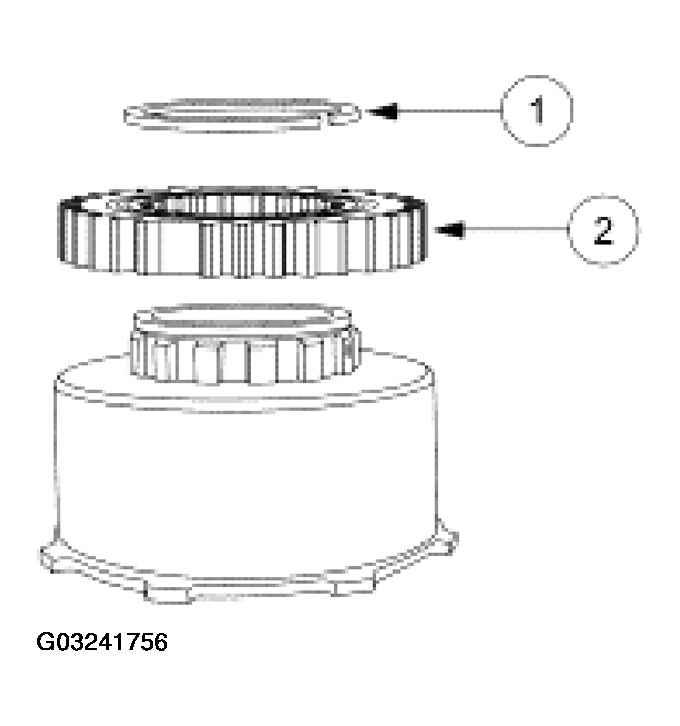

      Fig 1: Removing Intermediate One-Way Clutch
      G03241756Courtesy of FORD MOTOR CO.
