1-2 Accumulator: Removal

  1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.

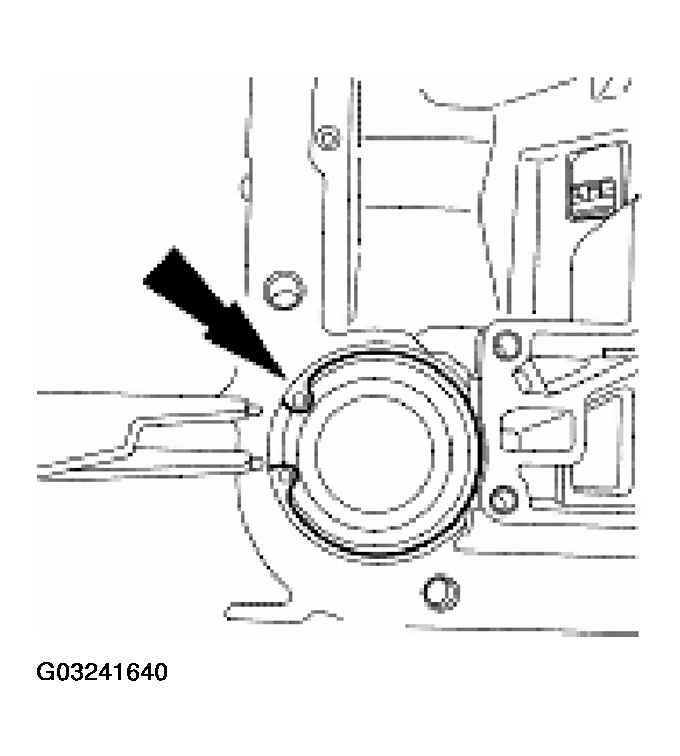

    Fig 1: Removing Accumulator Piston Retaining Ring
    G03241640Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.
  2. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the lower 1-2 accumulator spring.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.

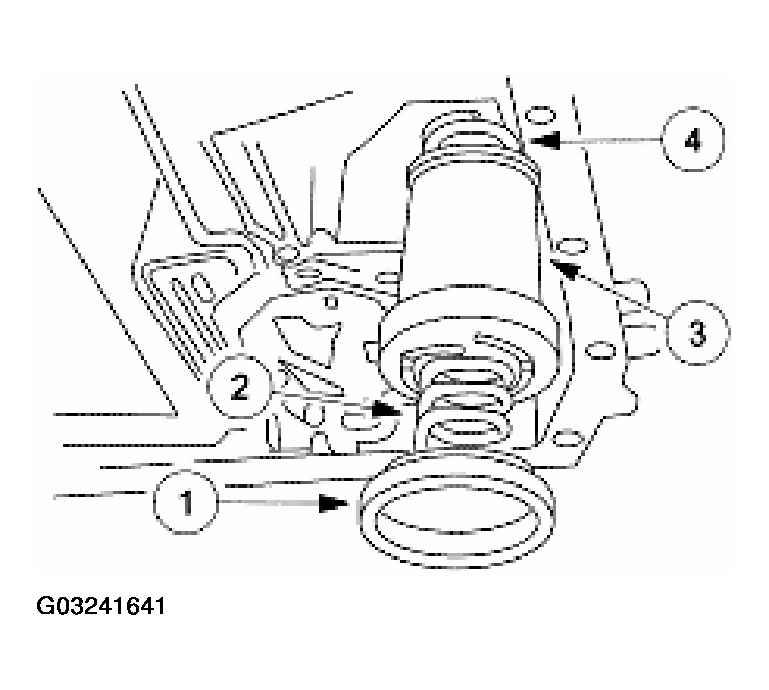

      Fig 2: Removing Upper 1-2 Accumulator Spring
      G03241641Courtesy of FORD MOTOR CO.
