Symptom Chart

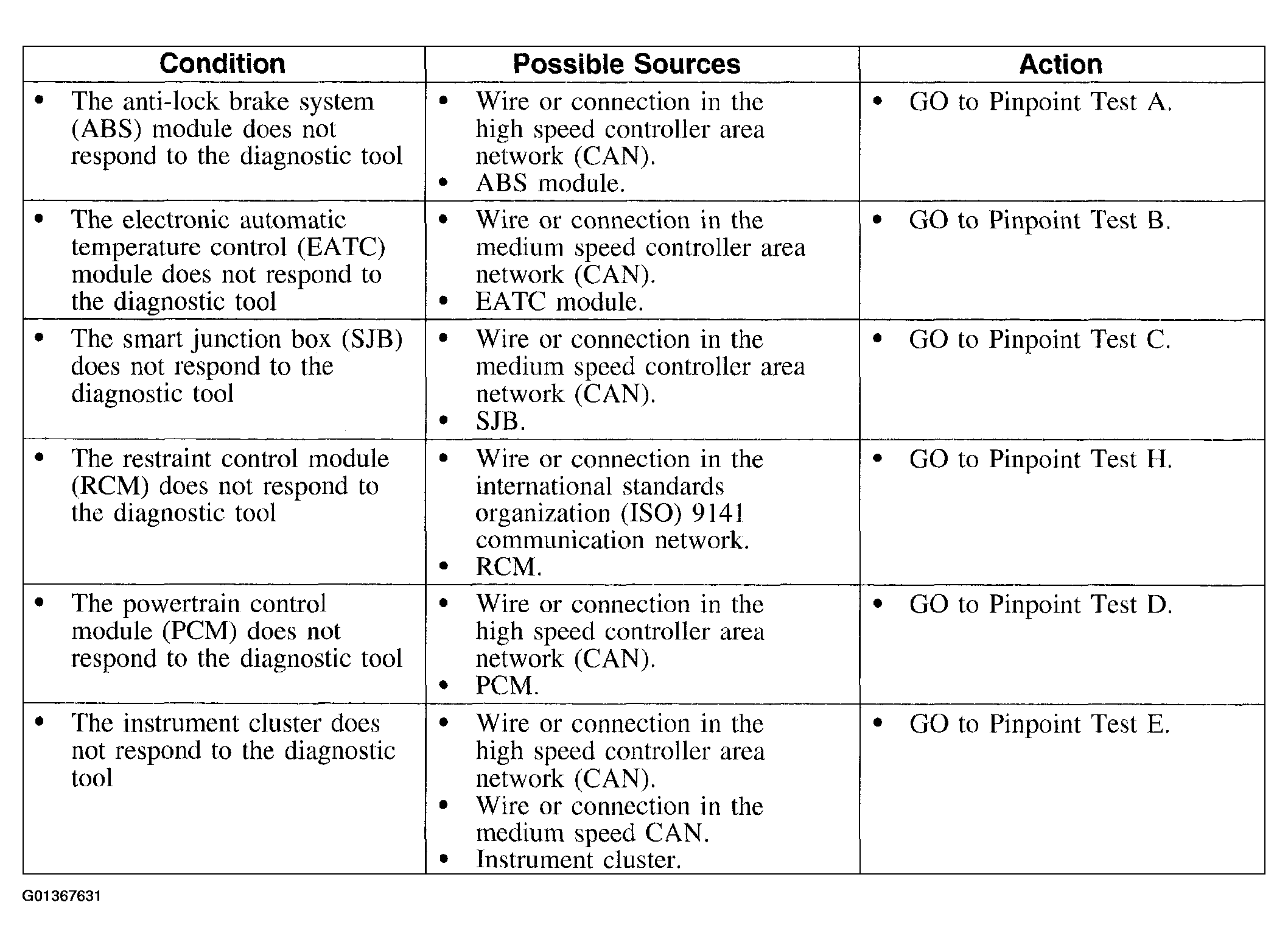

Fig 1: Symptom Chart (1 Of 2)
G01367631Courtesy of FORD MOTOR CO.

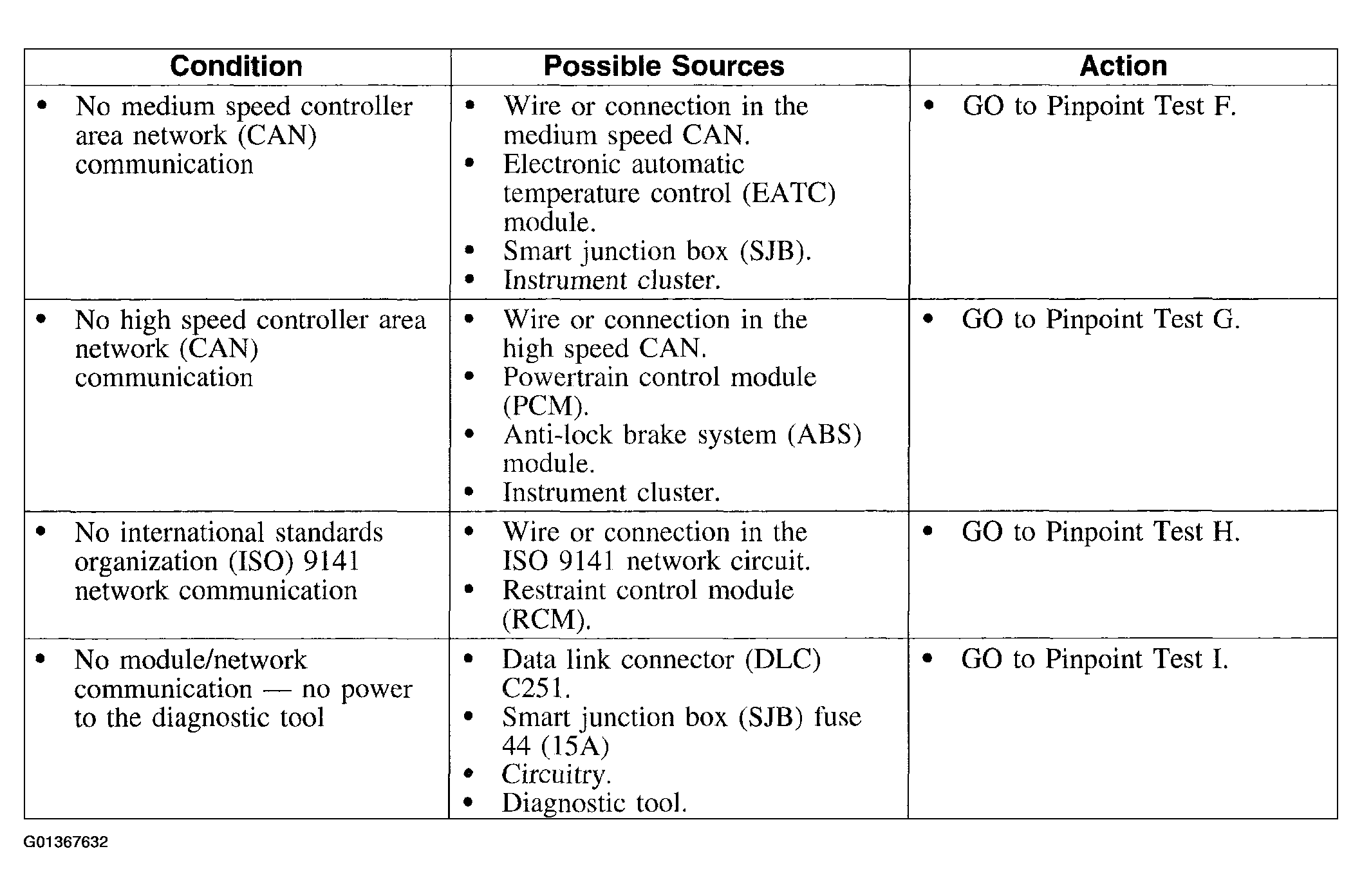

Fig 2: Symptom Chart (2 Of 2)
G01367632Courtesy of FORD MOTOR CO.
