Seat Control Switch: Removal

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
    The front impact severity sensor is located on the hood latch support bracket.
    The side impact sensors (if equipped) are located at or near the base of the B-pillar.
    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
  1. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Supplemental Restraint System (SRS) Deactivation and Reactivation procedure.
  3. Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Front Seat Removal and Installation procedure.
  5. Remove the driver seat. For additional information, refer to FRONT SEAT .
  6. Release the tab and disconnect the power seat track electrical connector.
    Fig 1: Disconnecting Power Seat Track Electrical Connector
    G01367969Courtesy of FORD MOTOR CO.
  7. Remove the recliner handle.
    Fig 2: Removing Recliner Handle
    G01367970Courtesy of FORD MOTOR CO.
  8. Remove the side shield screw.
    Fig 3: Removing Side Shield Screw
    G01367971Courtesy of FORD MOTOR CO.
  9. Carefully pull out on the outer side shield releasing the two hidden clips (shown) to the inner side shield and the two hidden clips to the recliner mechanism.
    Fig 4: Removing Outer Side Shield
    G01367972Courtesy of FORD MOTOR CO.
  10. Remove the outer side shield.
    1. Carefully pull out on the side of the outer side shield releasing the clips to the inner side shield and one hidden clip at the side of the seat cushion frame.
    2. Carefully pull forward on the side shield releasing the hidden clip at the front of the seat cushion frame.
    3. While routing the wire harness out of the seat cushion frame, slide the side shield forward to clear the recliner handle and remove the outer side shield.

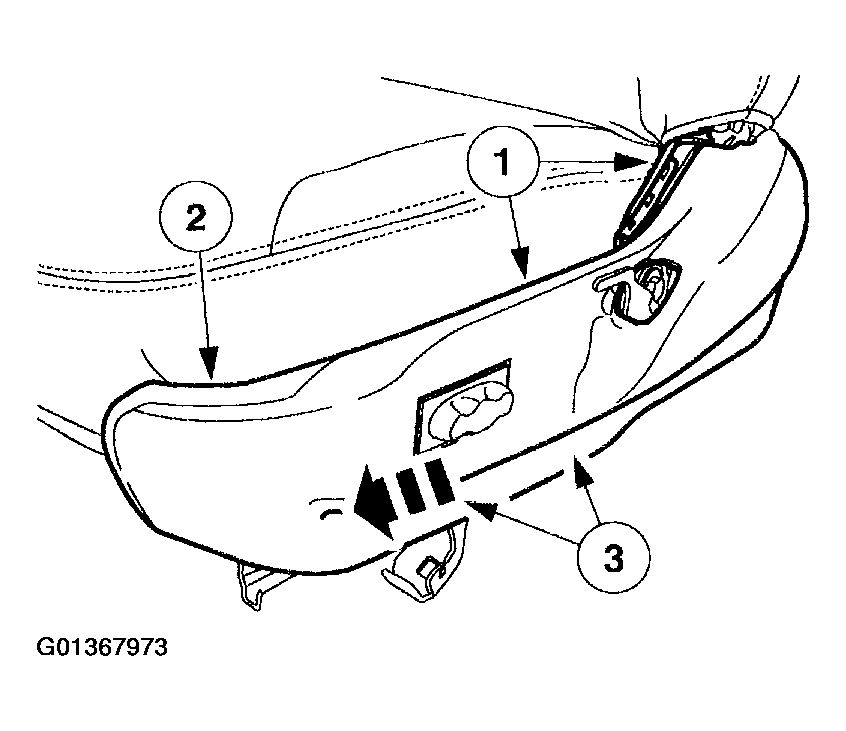

      Fig 5: Removing Outer Side Shield
      G01367973Courtesy of FORD MOTOR CO.
  11. Remove the screws and the switch.

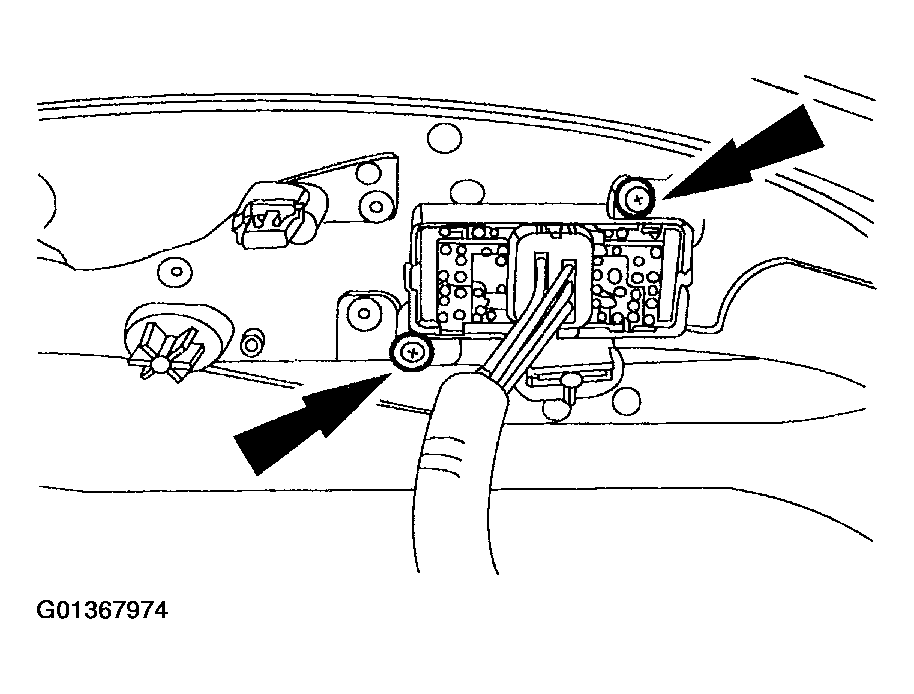

    Fig 6: Removing Screws And Switch
    G01367974Courtesy of FORD MOTOR CO.
