FixVault
Home
›
Ford
›
2004
›
Taurus SES, 3.0 2
›
Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emission Control System
›
Specifications
›
Torque Specifications
Torque Specifications

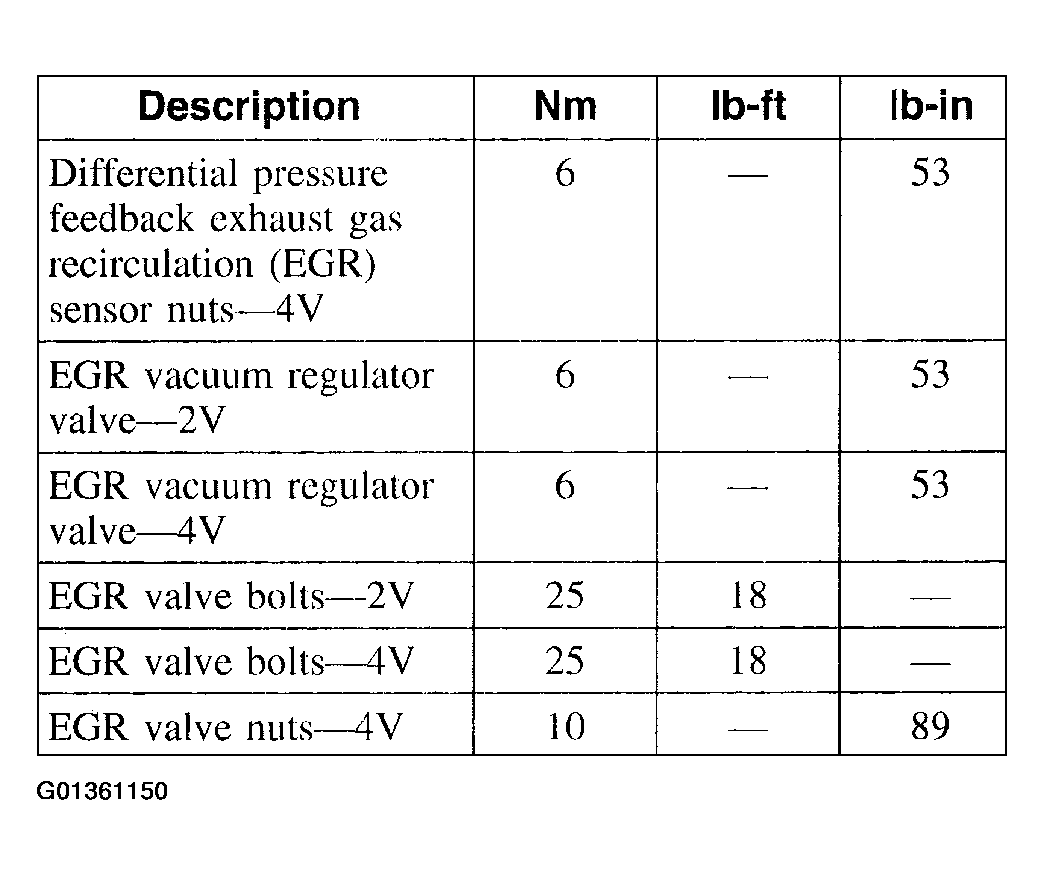

Fig 1: Torque Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.

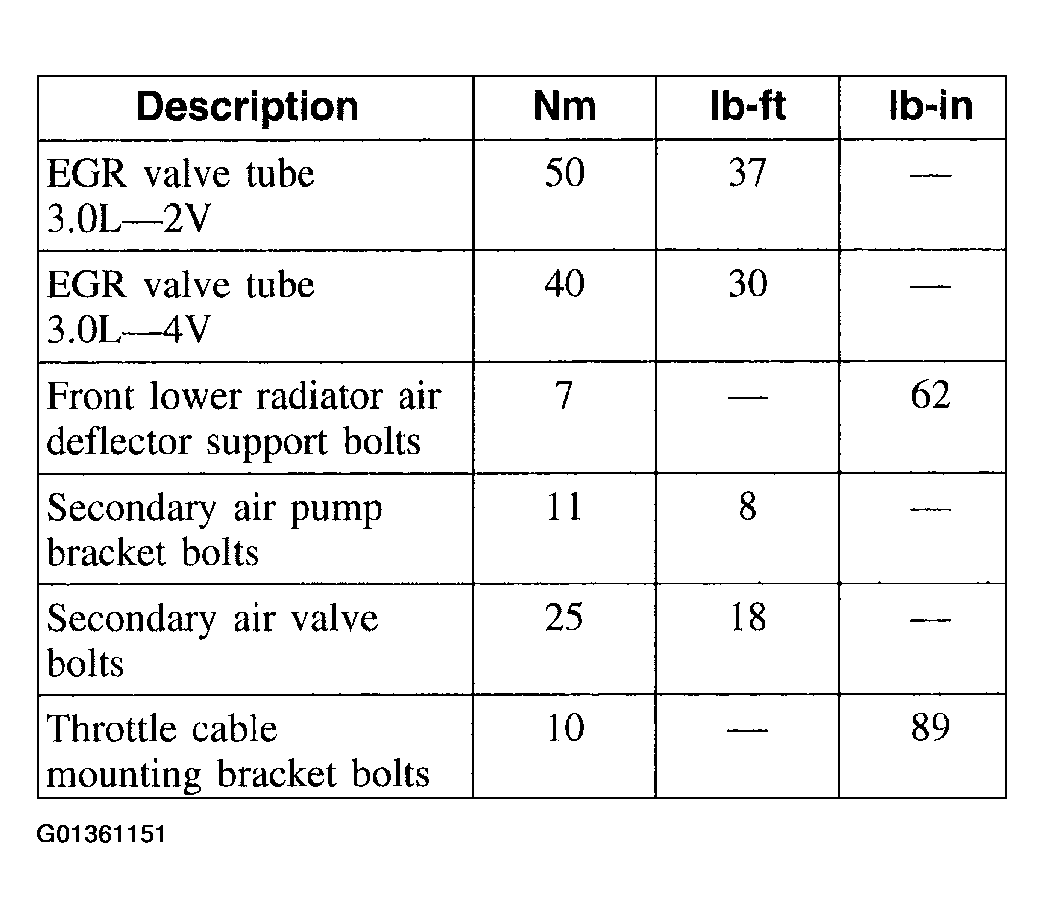

Fig 2: Torque Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
