Pinpoint Test B: High Engine Idle Speed

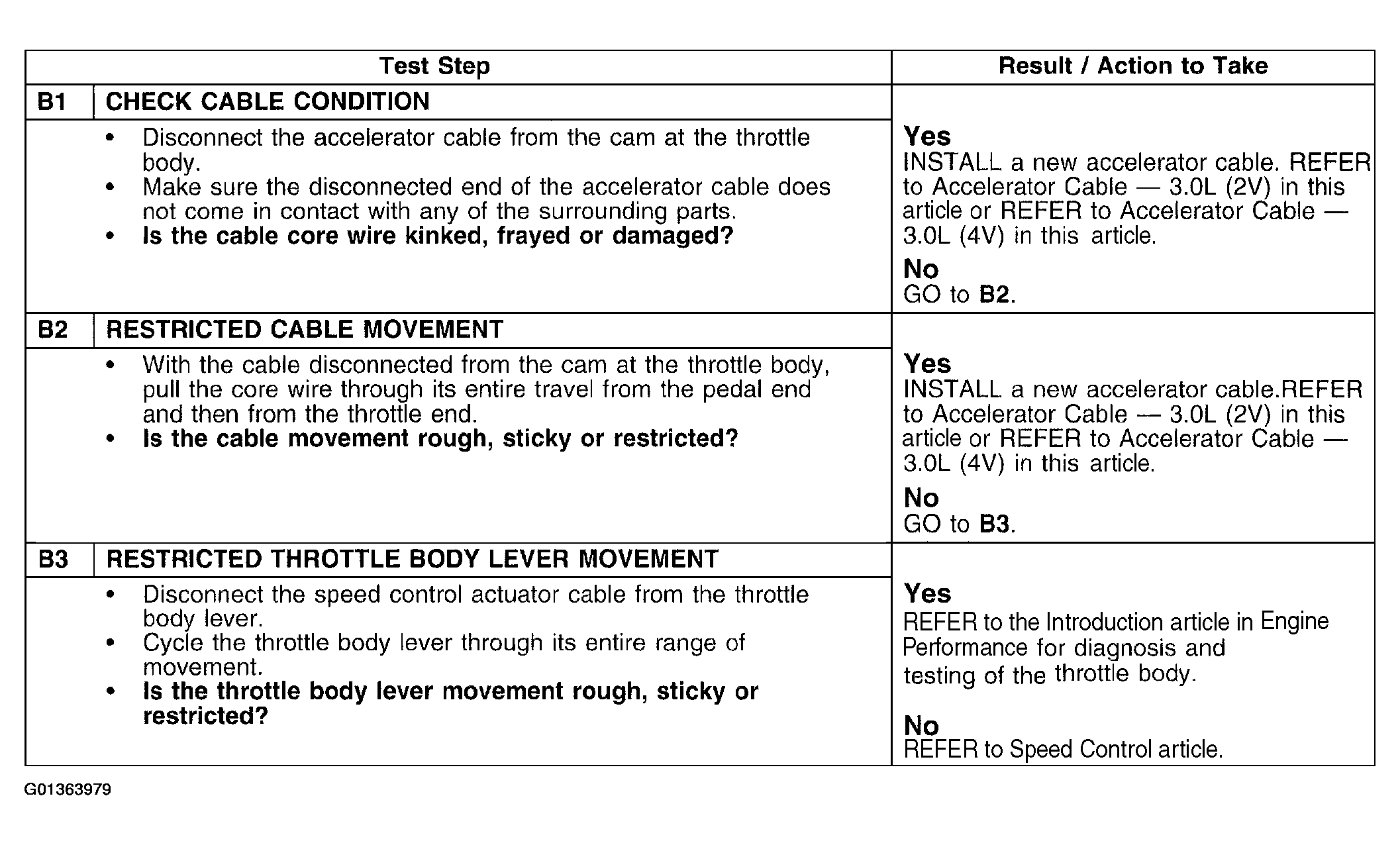

Fig 1: Pinpoint Test B: High Engine Idle Speed (Step B1-B3)
G01363979Courtesy of FORD MOTOR CO.
