Climate Control Assembly

ALL VEHICLES

Using the special tool, pull out the integrated control panel (18C858).

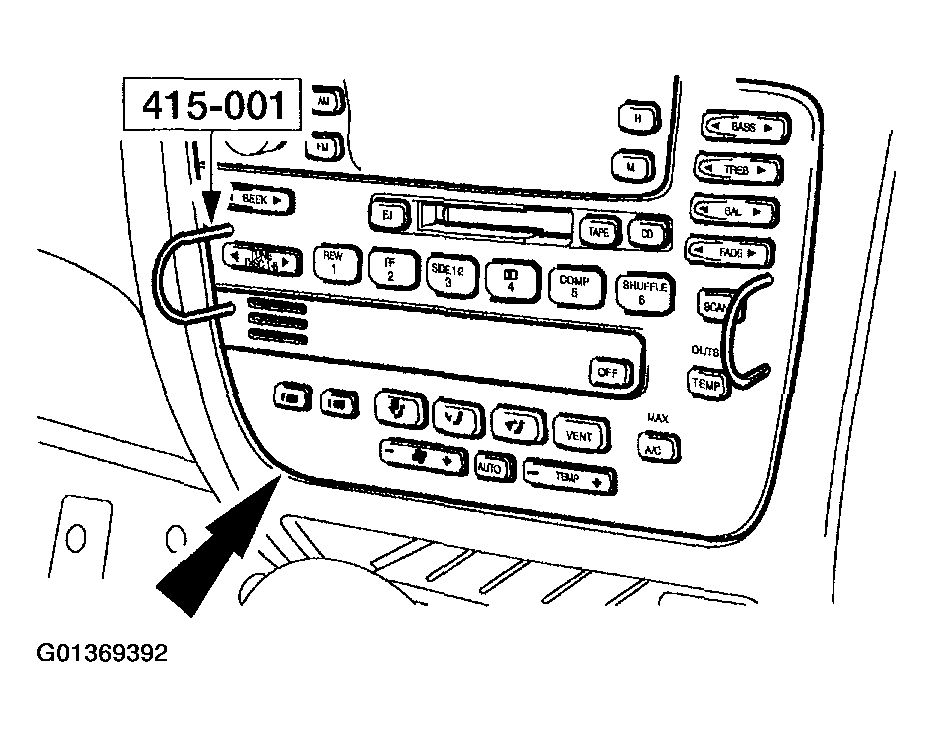

Fig 2: Pulling Out Integrated Control Panel

Courtesy of FORD MOTOR CO.

VEHICLES WITH MANUAL CLIMATE CONTROL

Label and disconnect the electrical connectors. Remove the integrated control panel.

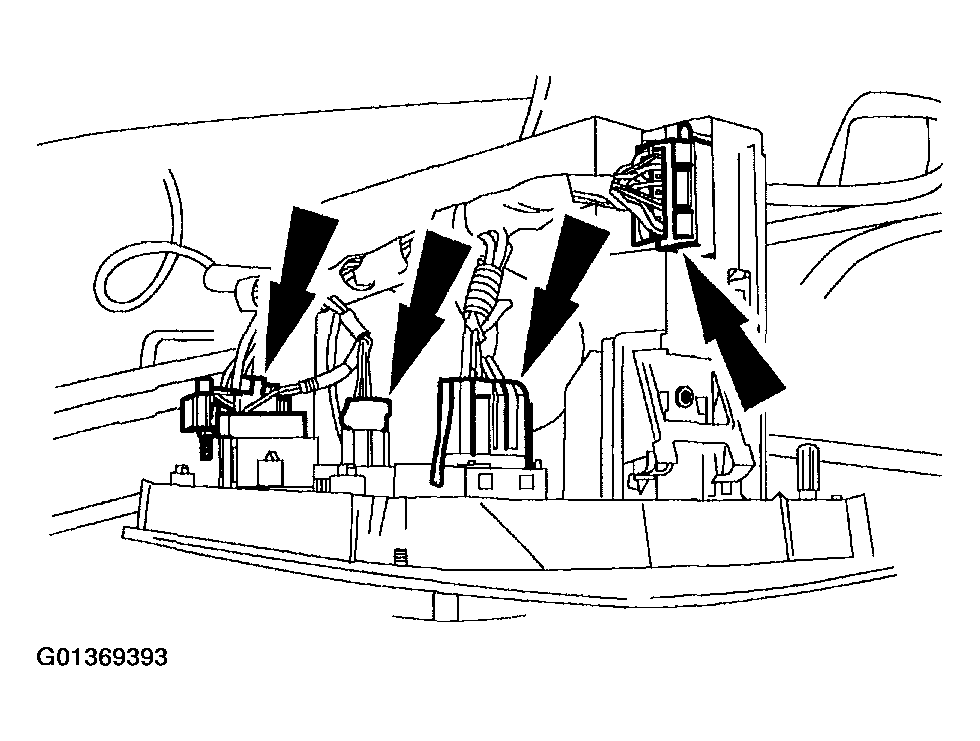

Fig 3: Disconnecting Electrical Connectors

Courtesy of FORD MOTOR CO.

VEHICLES WITH ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC)

Label and disconnect the electrical connectors and the in-car temperature sensor hose (19D888). Remove the integrated control panel.

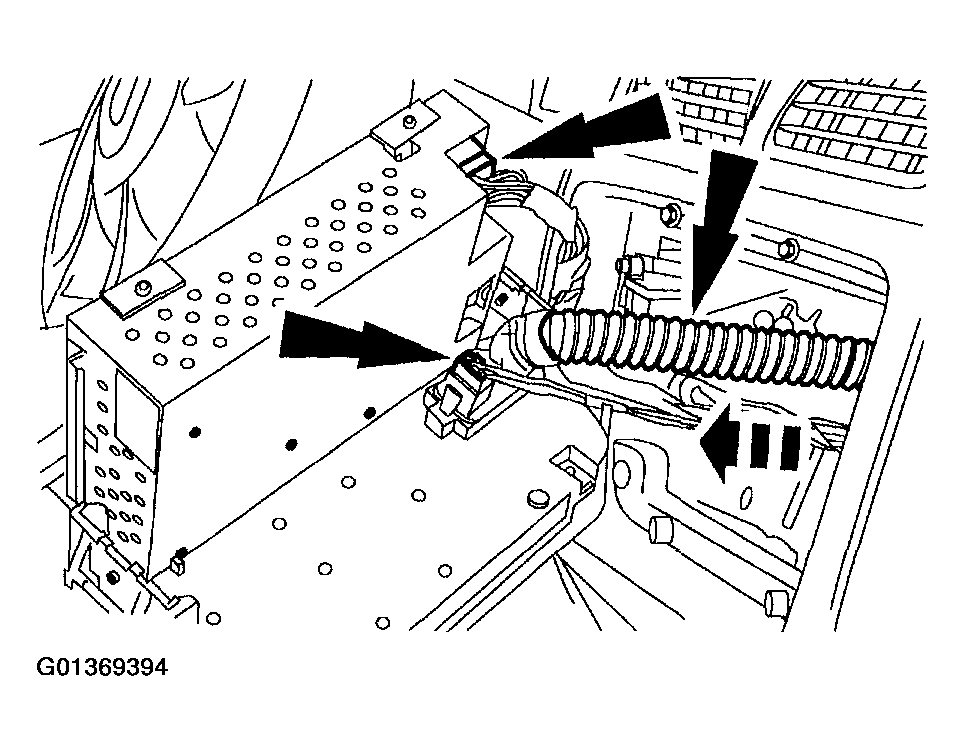

Fig 4: Disconnecting Electrical Connectors And In-Car Temperature Sensor Hose

Courtesy of FORD MOTOR CO.

ALL VEHICLES
