Main Components and Functions

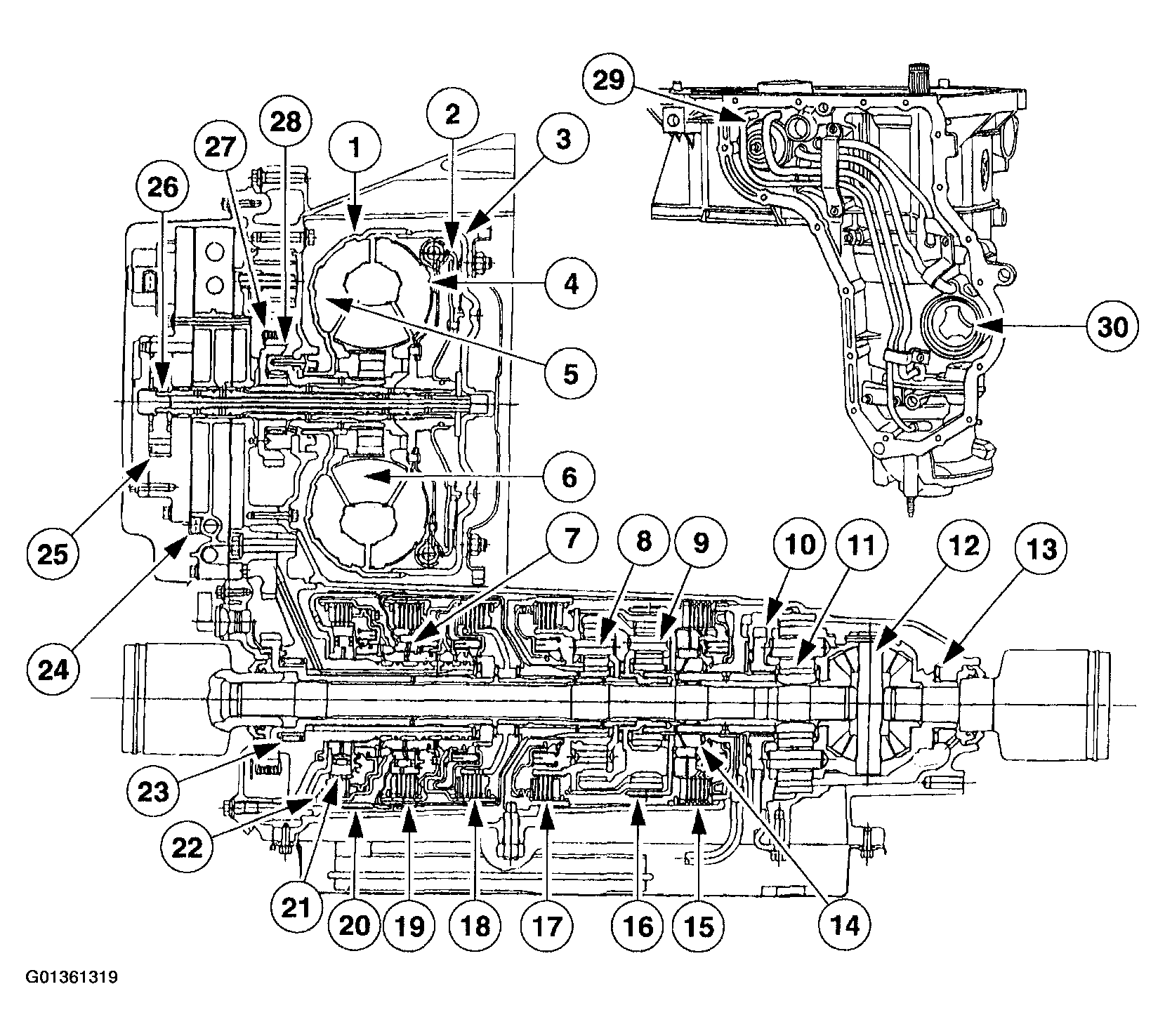

Fig 1: Identifying Automatic Transaxle/Transmission Main Components

Courtesy of FORD MOTOR CO.

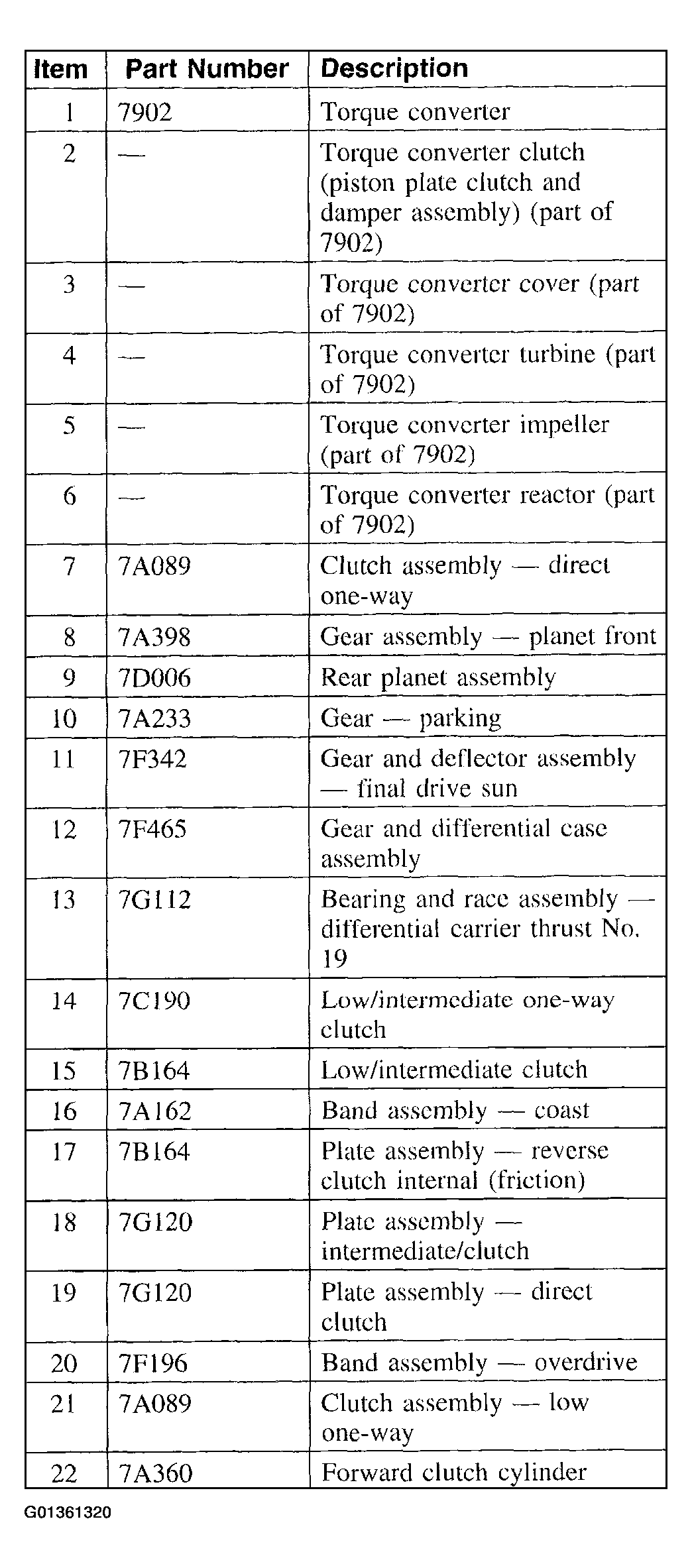

Fig 2: Parts Description Chart (Items 1-22)

Courtesy of FORD MOTOR CO.

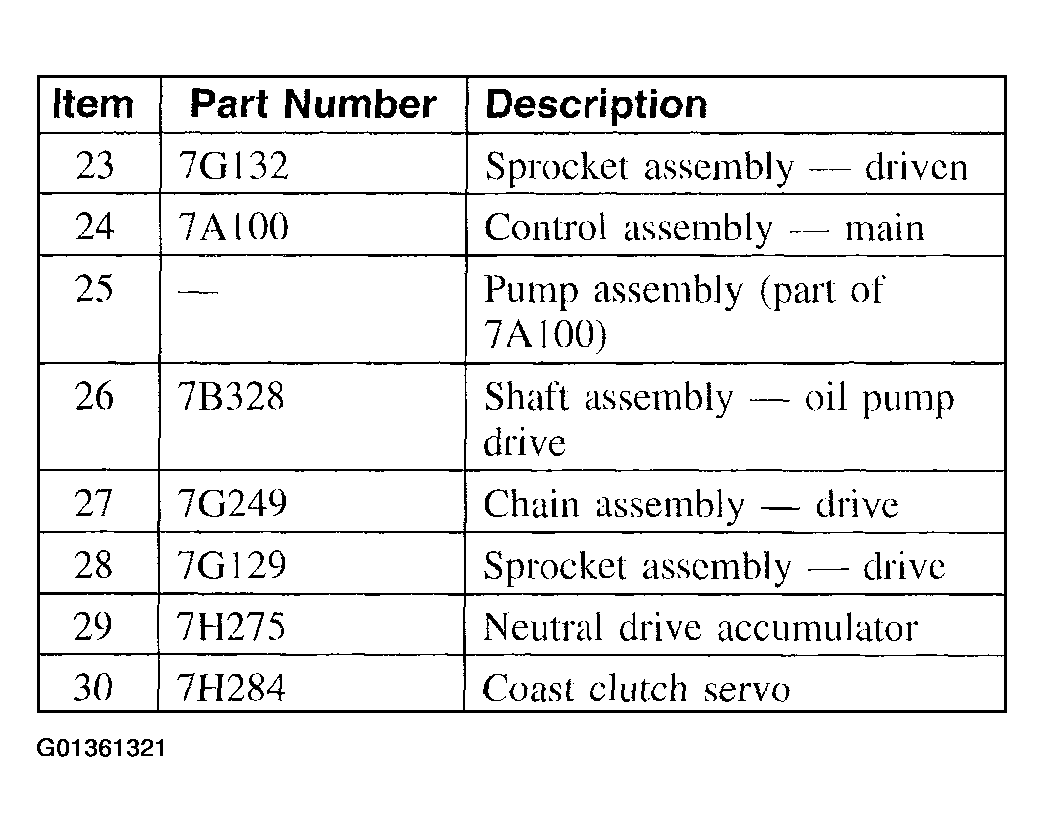

Fig 3: Parts Description Chart (Items 23-30)

Courtesy of FORD MOTOR CO.
