Main Control Valve Body: Notes

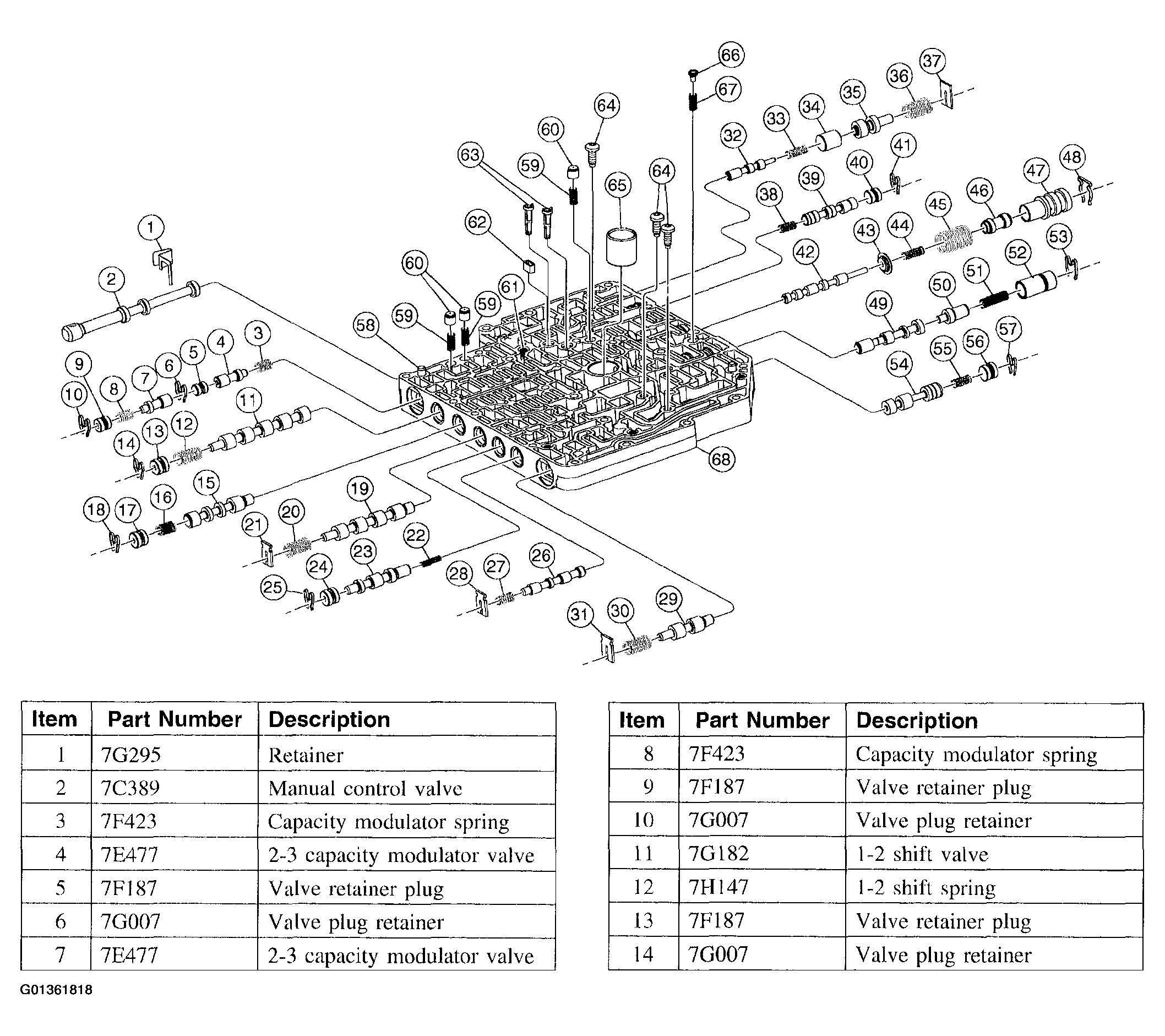

Fig 1: Identifying Main Control Valve Body (Items 1-14)

Courtesy of FORD MOTOR CO.

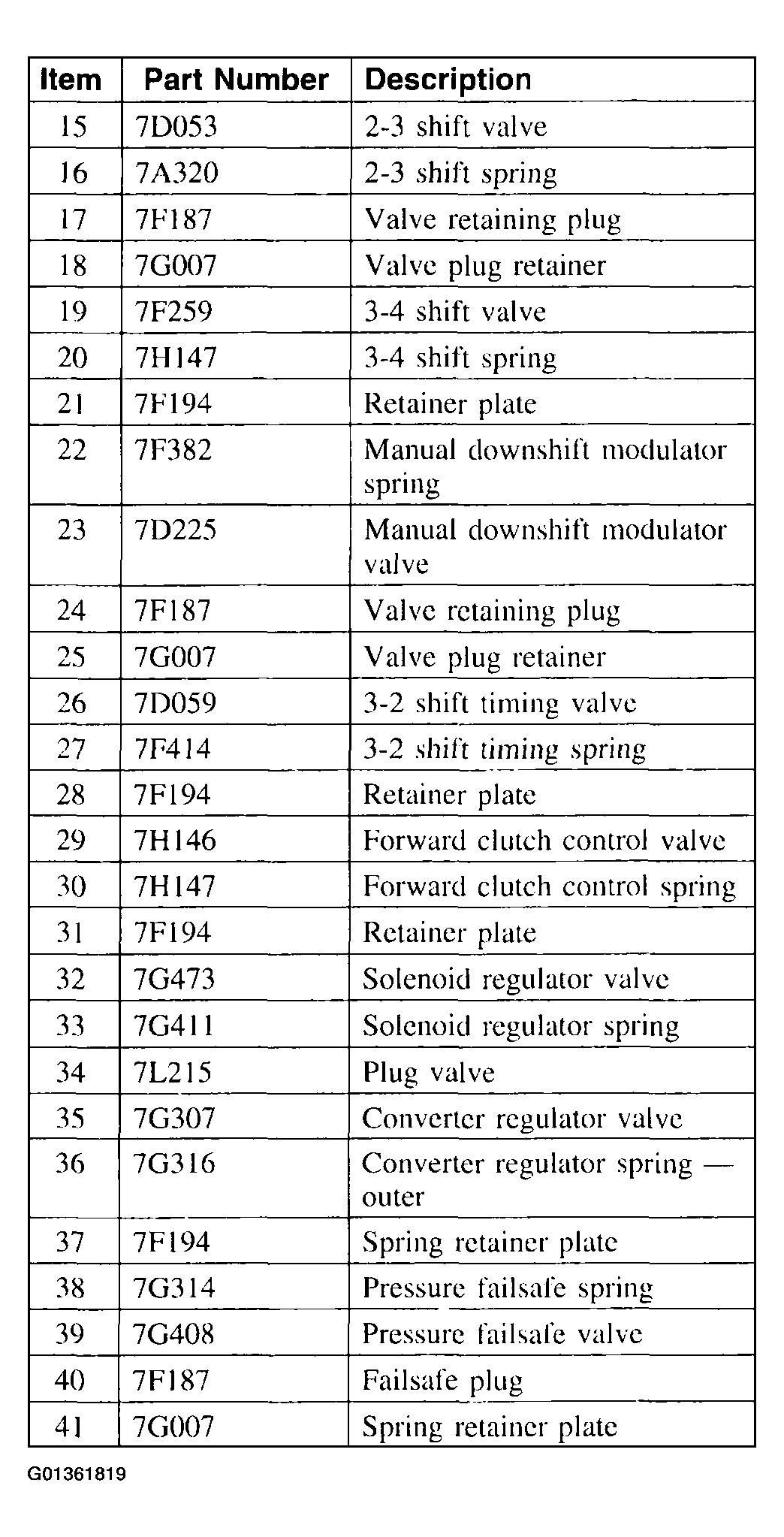

Fig 2: Parts Description Chart (Items 15-41)

Courtesy of FORD MOTOR CO.

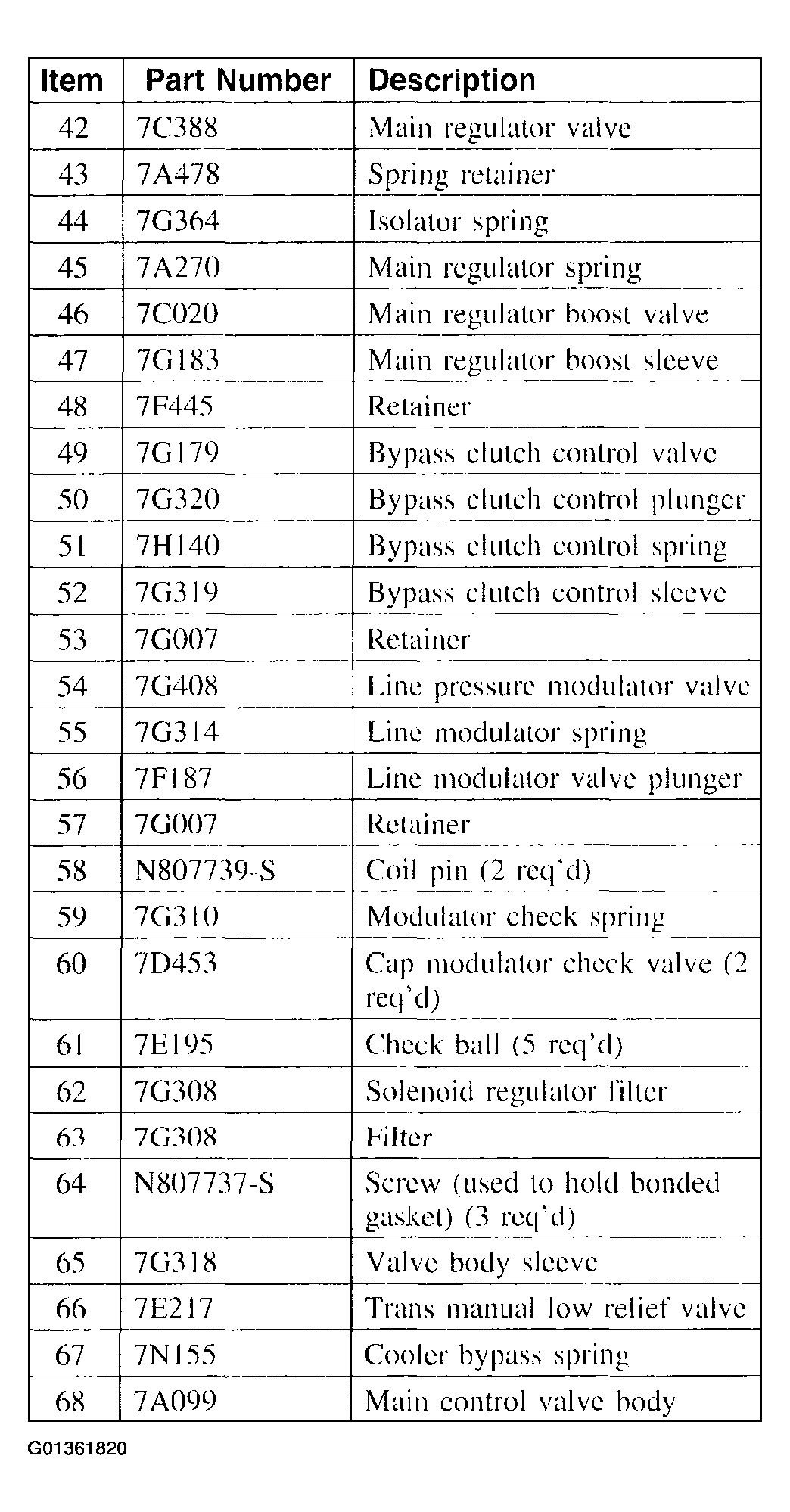

Fig 3: Parts Description Chart (Items 42-68)

Courtesy of FORD MOTOR CO.
