Neutral Drive Accumulator

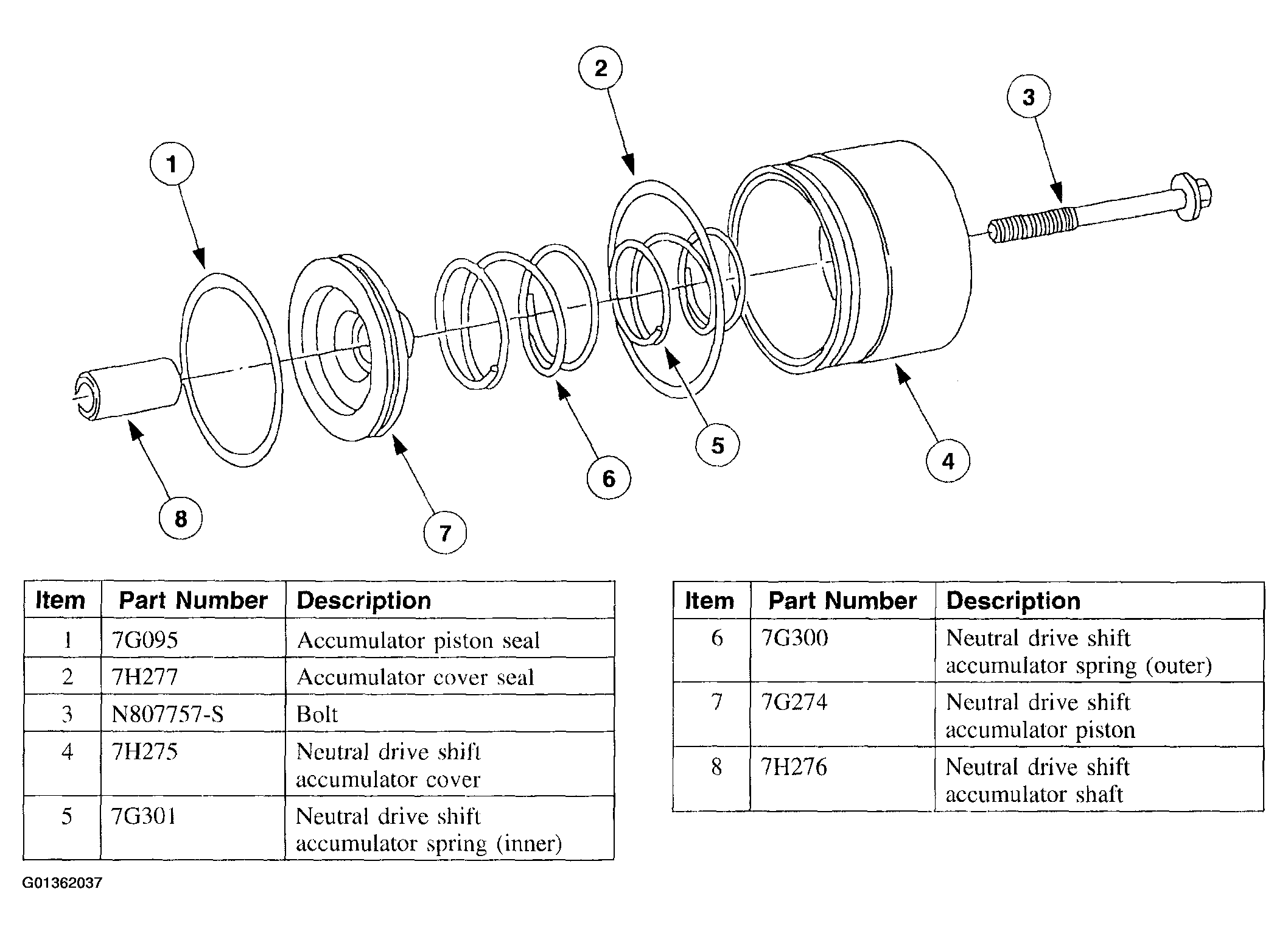

Fig 1: Identifying Neutral Drive Accumulator Components
G01362037Courtesy of FORD MOTOR CO.
  1. Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
      • Fig 2: Removing/Installing A New Neutral Drive Accumulator Cover And Piston Seal
      G01362039Courtesy of FORD MOTOR CO.
