Main Control Pump Assembly

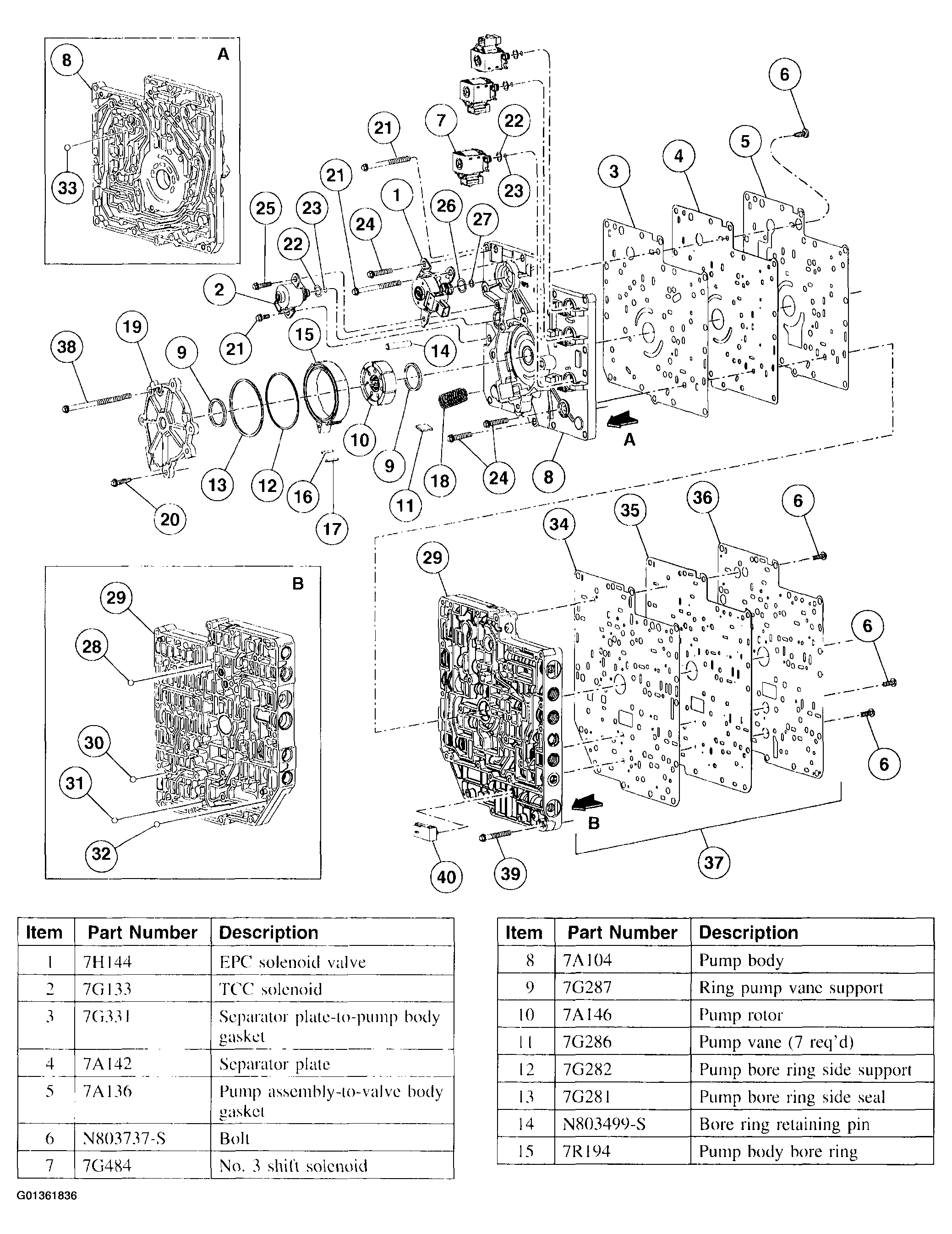

Fig 1: Identifying Main Control Pump Assembly (Items 1-15)
G01361836Courtesy of FORD MOTOR CO.

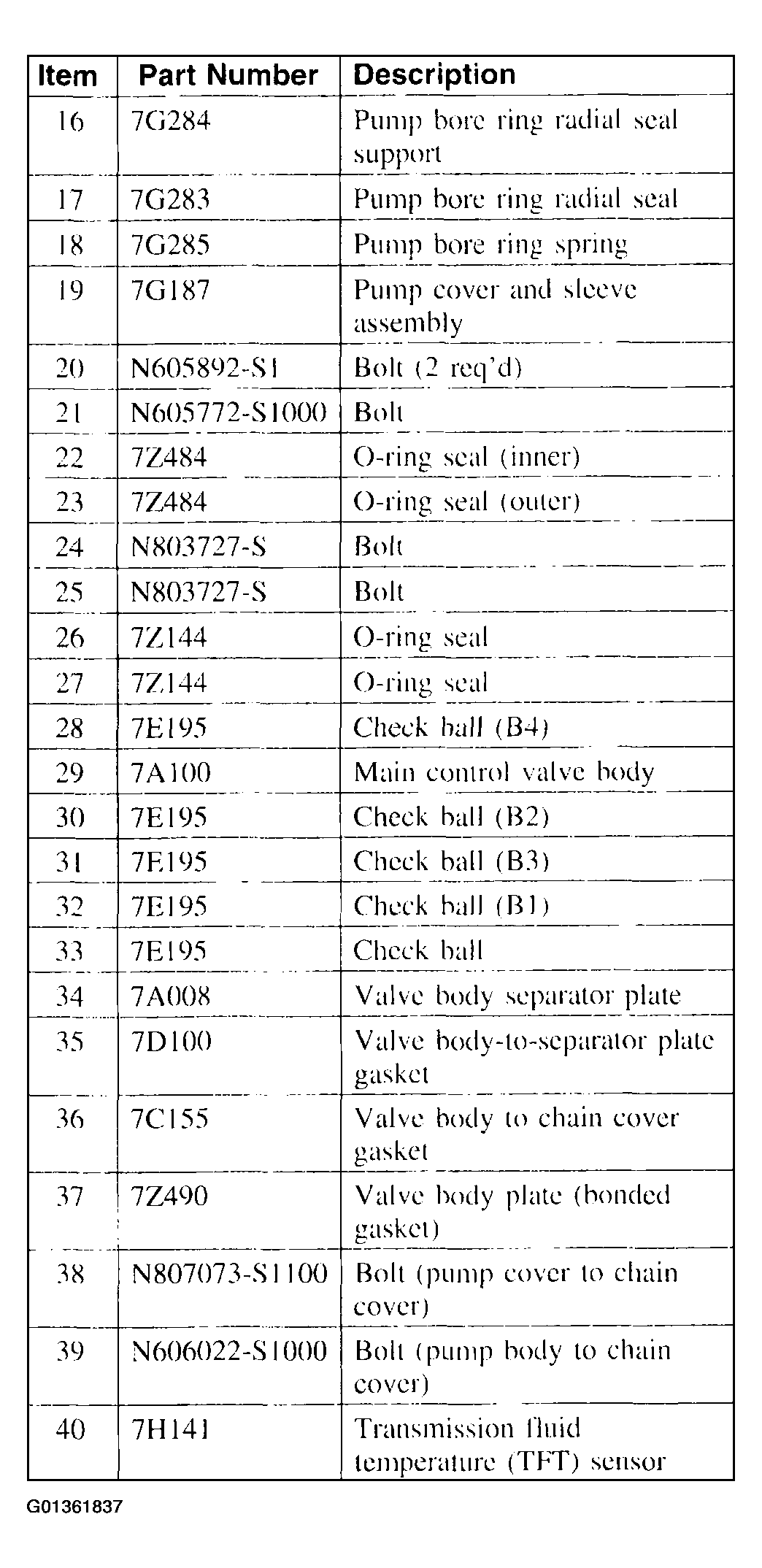

Fig 2: Parts Description Chart (Items 16-40)
G01361837Courtesy of FORD MOTOR CO.
