Sun and Shell Assembly - Disassembly: Notes

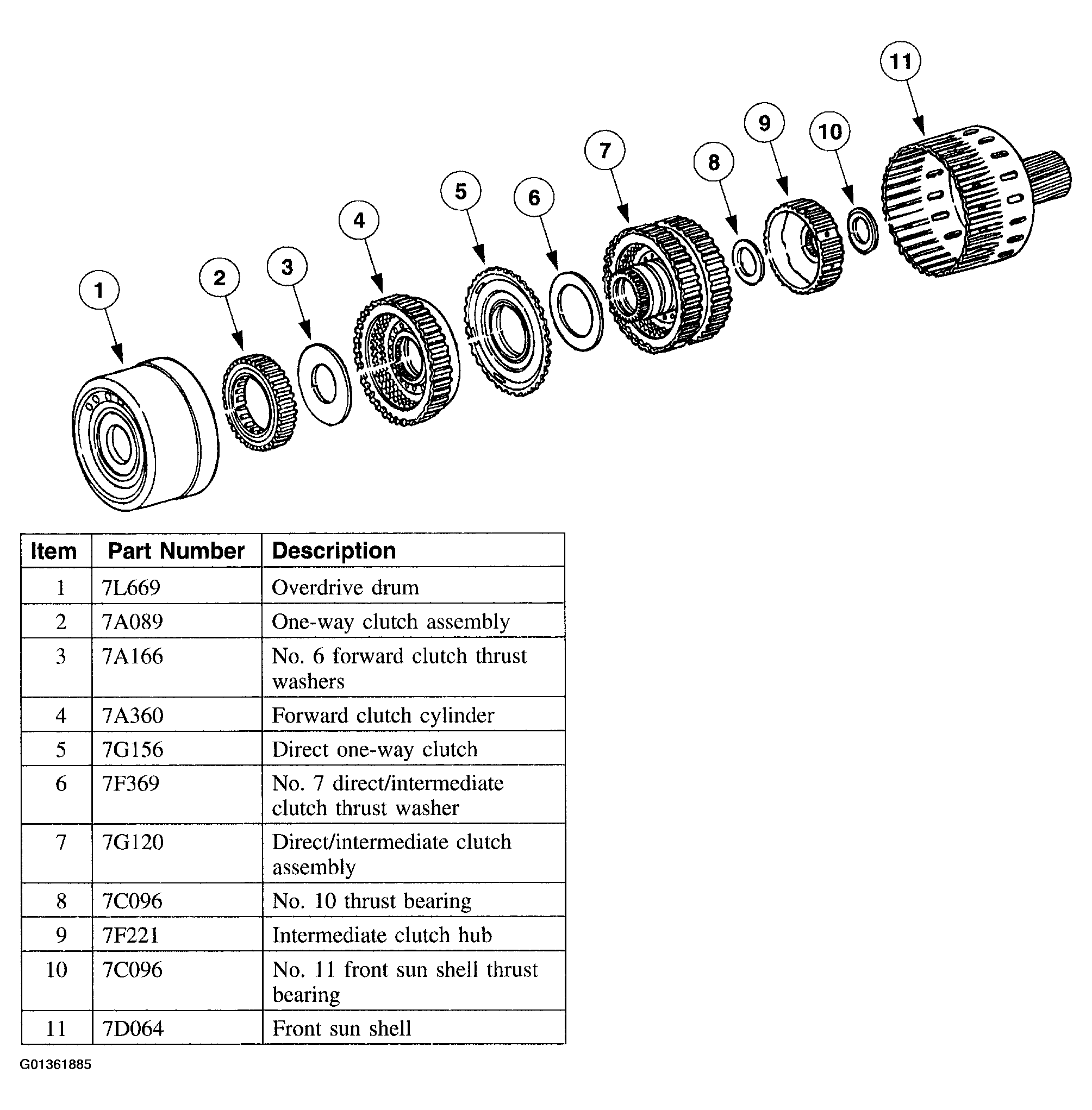

Fig 1: Identifying Sun And Shell Assembly
G01361885Courtesy of FORD MOTOR CO.
