Torque Converter End Play Check

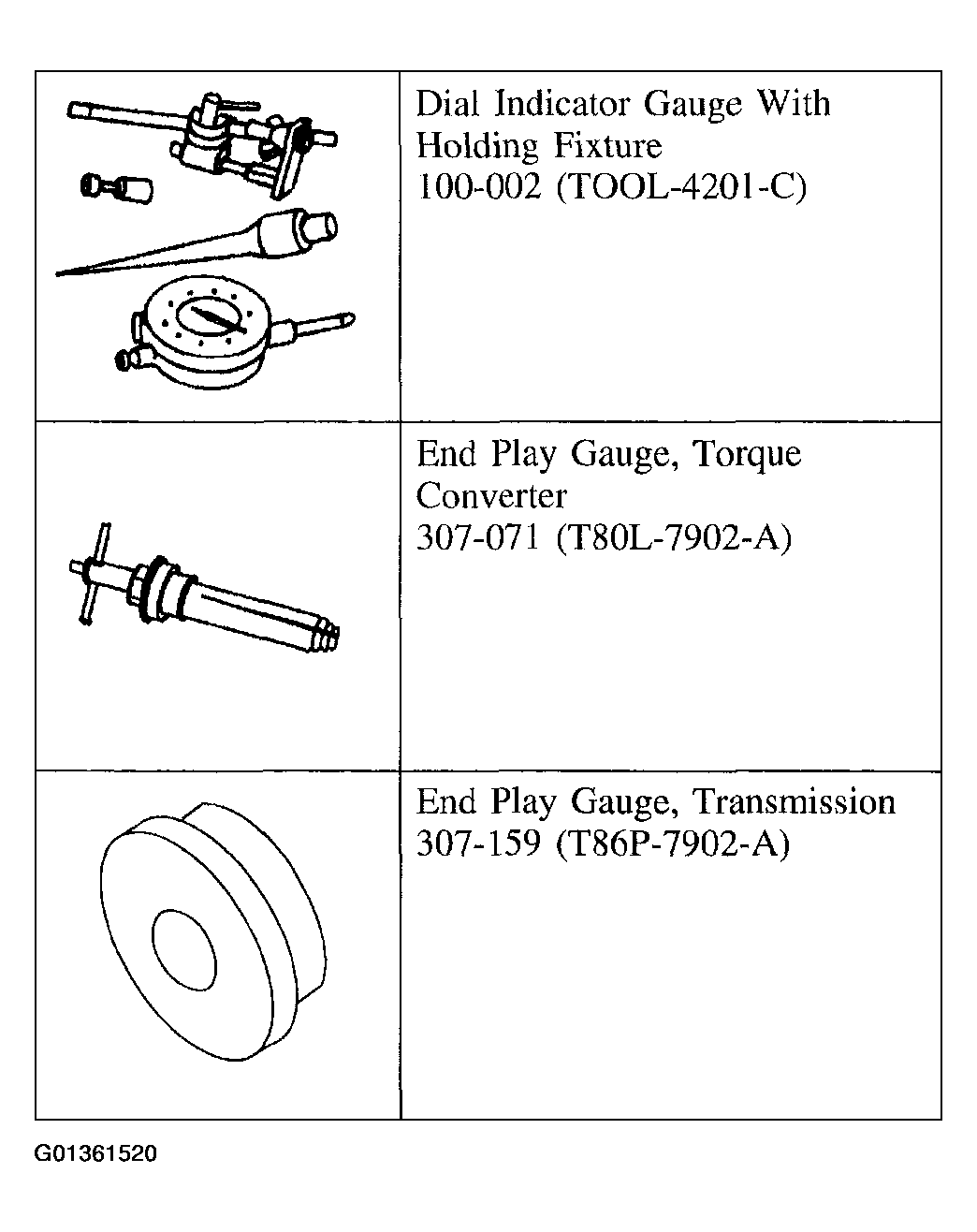

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Install the special tools.

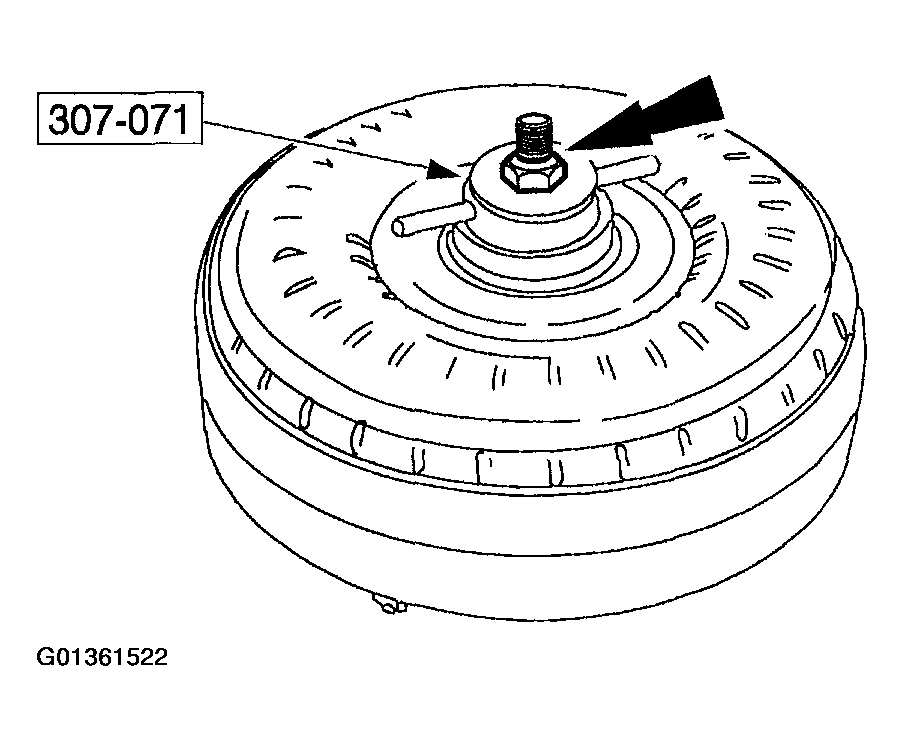

   Fig 2: Installing Special Tools

   Courtesy of FORD MOTOR CO.
2. Tighten the nut.
   Fig 3: Tightening Nut

   Courtesy of FORD MOTOR CO.
3. Install the special tools.
   Fig 4: Installing Special Tools

   Courtesy of FORD MOTOR CO.
NOTE: If the indicator reading is above specification, replace the torque converter.
4. With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
