Differential Fluid Seals: Installation

Using the special tools install the LH differential seal.

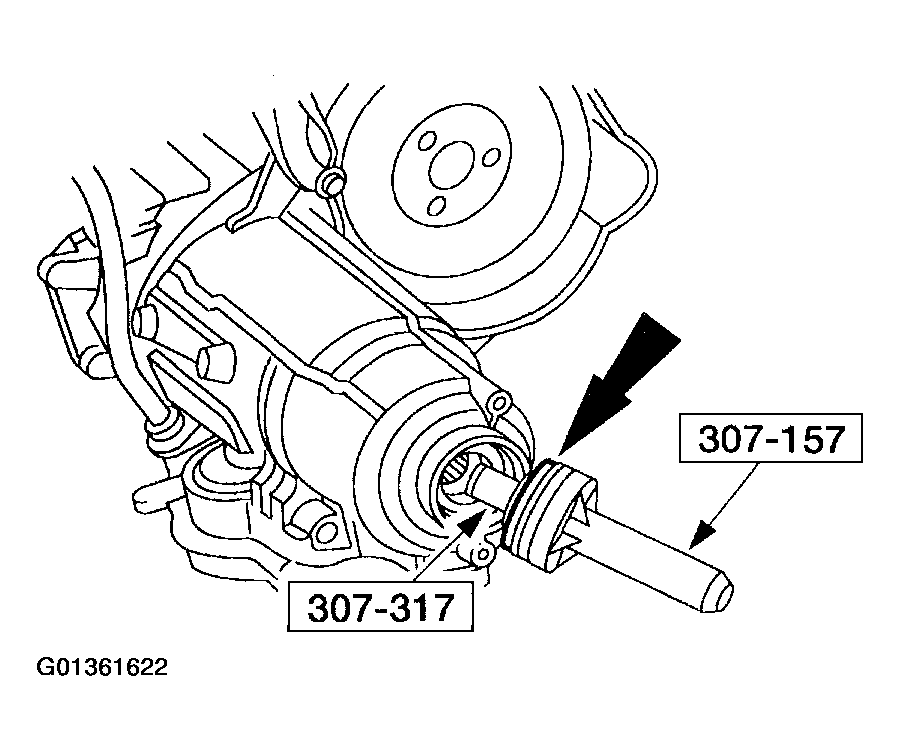

Fig 1: Installing LH Differential Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Using the special tools install the RH seal.

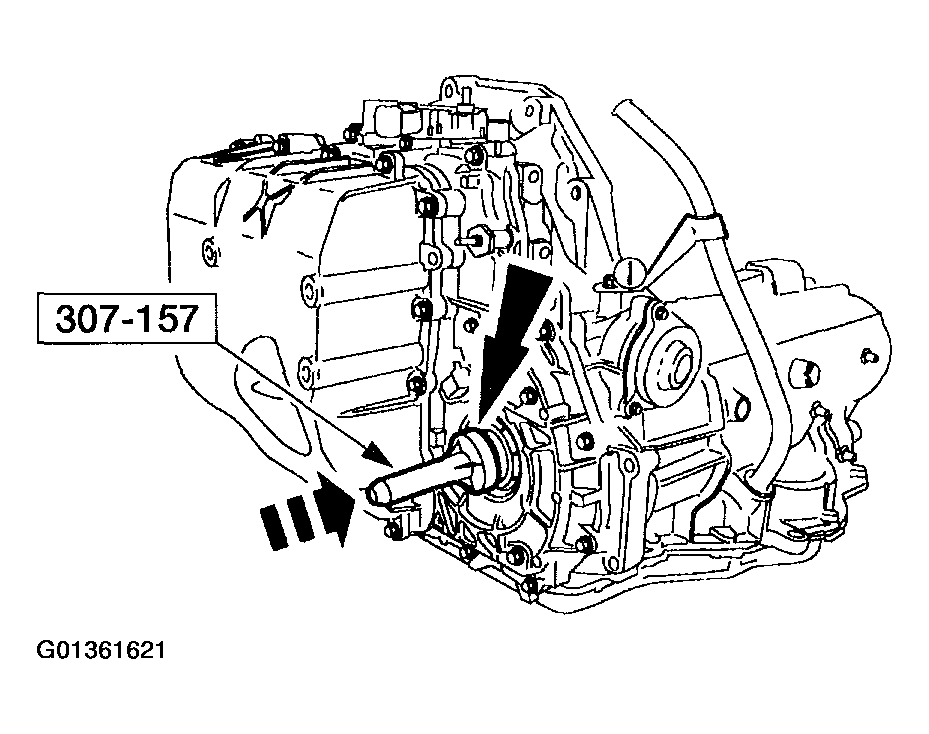

Fig 2: Installing RH Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Install the RH halfshaft assembly.
Using a new nut, connect the RH lower control arm.

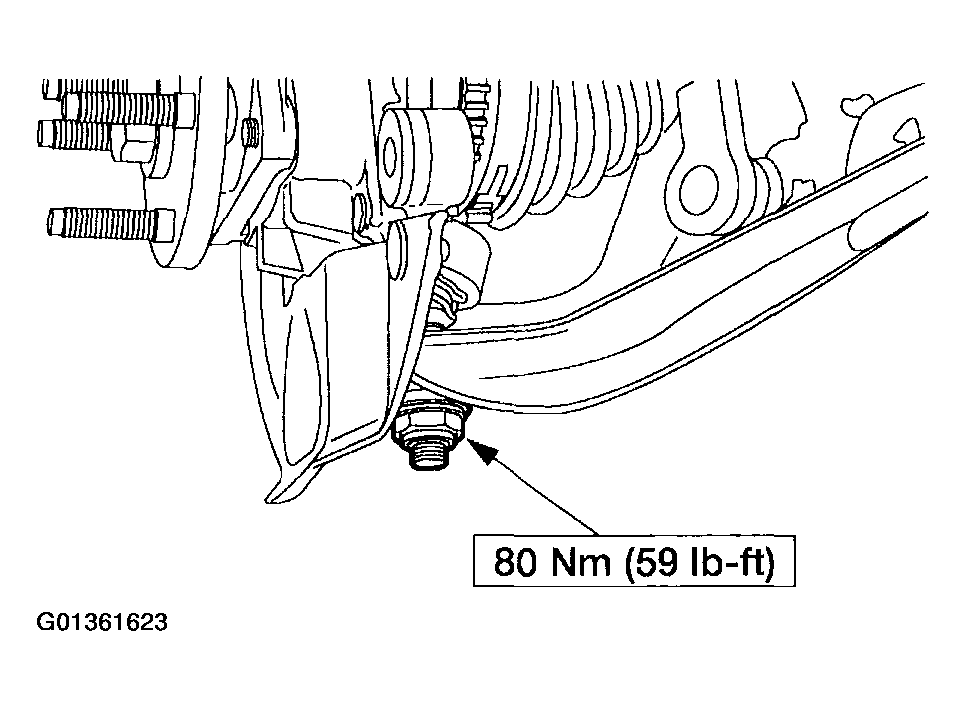

Fig 3: Connecting RH Lower Control Arm Using New Nut
Courtesy of FORD MOTOR CO.
Using a new nut, connect the RH stabilizer bar.

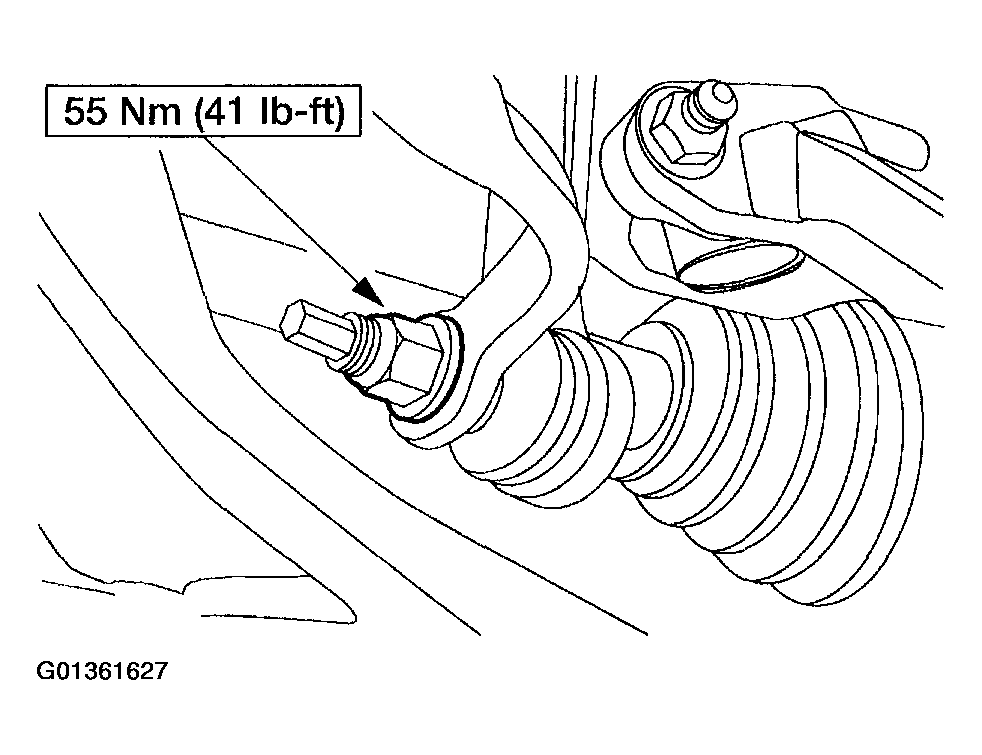

Fig 4: Connecting RH Stabilizer Bar Using A New Nut
Courtesy of FORD MOTOR CO.
Using a new nut and cotter pin, connect the RH tie-rod end.

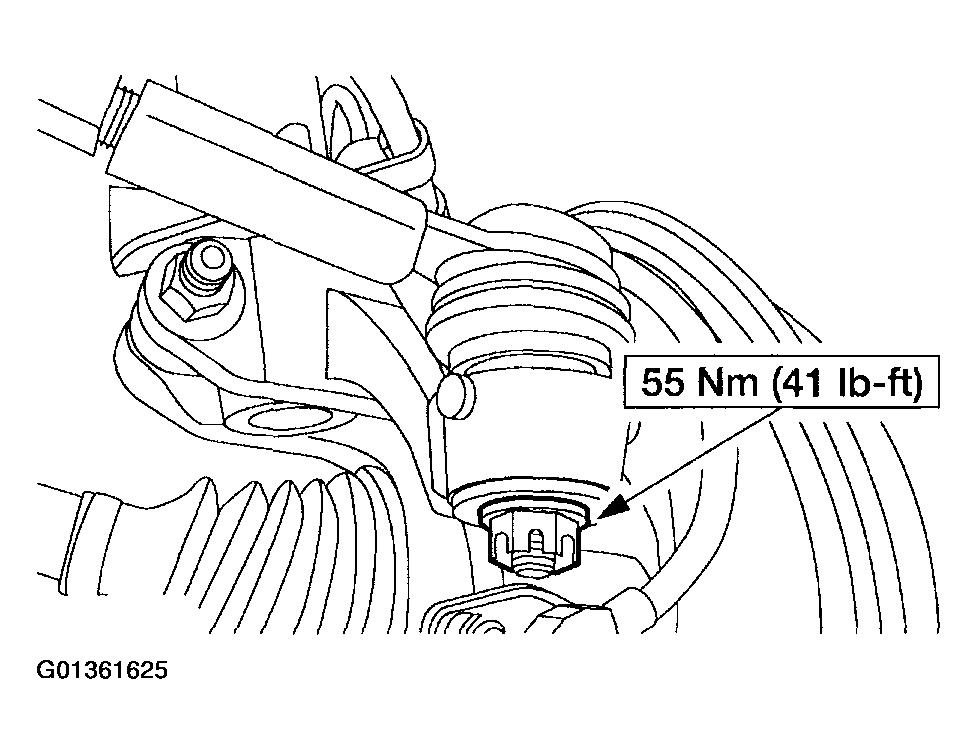

Fig 5: Connecting RH Tie-Rod End Using A New Nut And Cotter Pin
Courtesy of FORD MOTOR CO.
Install the LH halfshaft assembly.
Using a new nut, connect the LH lower control arm.

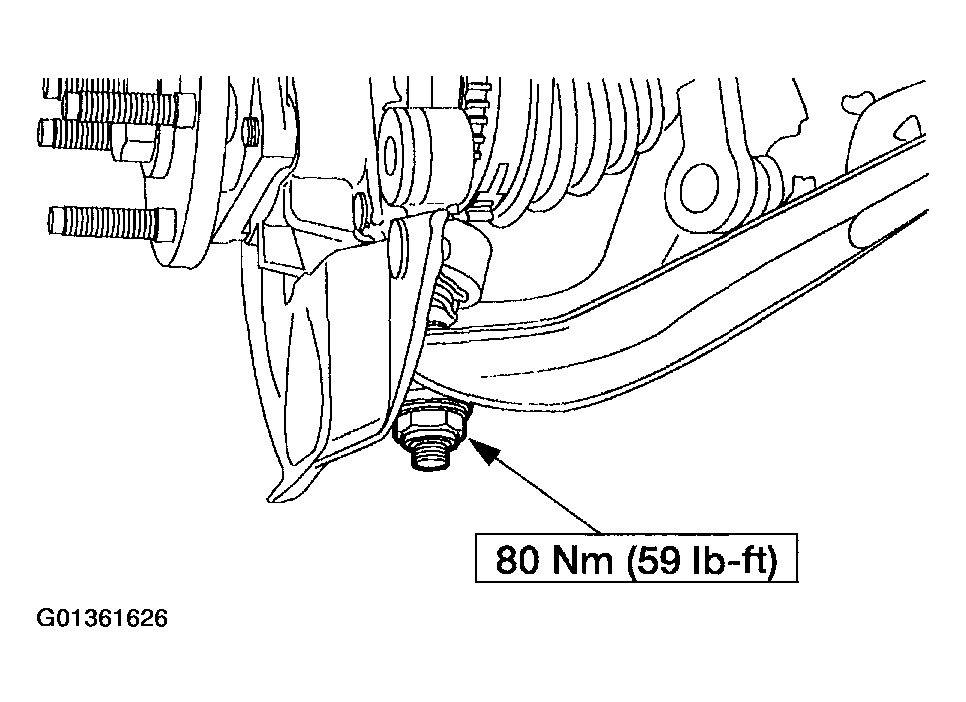

Fig 6: Using A New Nut To Connect LH Lower Control Arm
Courtesy of FORD MOTOR CO.
Using a new nut, connect the LH stabilizer bar.

Fig 7: Using New Nut To Connect LH Stabilizer Bar
Courtesy of FORD MOTOR CO.
Using a new nut and cotter pin, connect the LH tie-rod end.

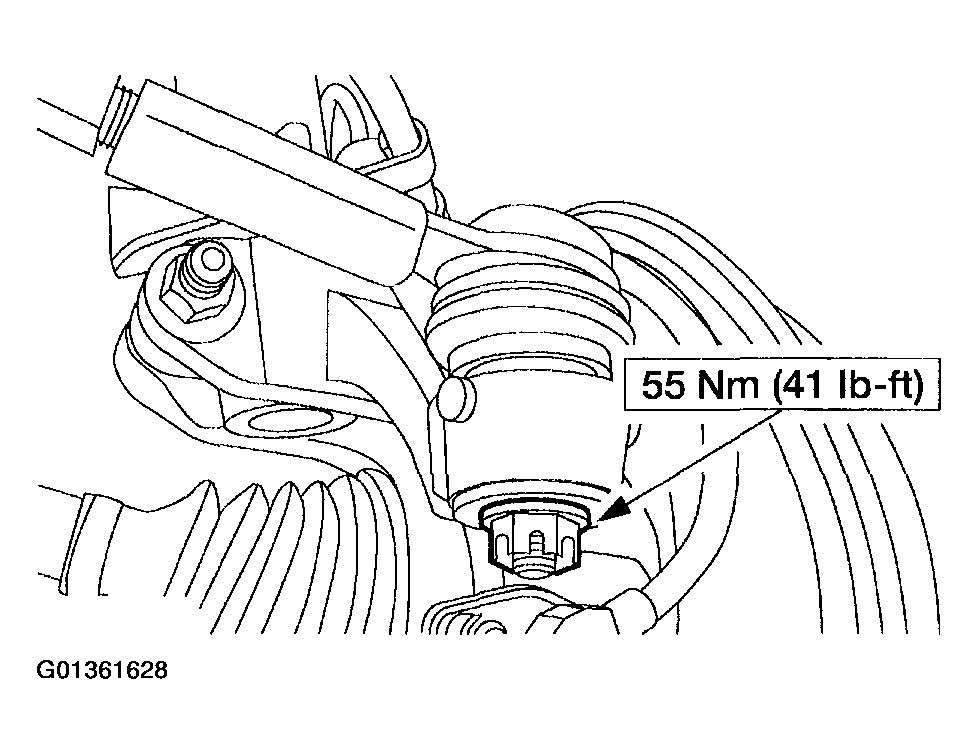

Fig 8: Using New Nut And Cotter Pin To Connect LH Tie-Rod End
