Symptom Chart

NOTE: The Self-Test Diagnostics must be carried out before proceeding to the SYMPTOM CHART.

NOTE: New speed control diagnostic software is available on some diagnostic tools.

NOTE: Refer to the SYSTEM WIRING DIAGRAMS (Taurus) or SYSTEM WIRING DIAGRAMS (Sable) for connector numbers stated in the pinpoint test.

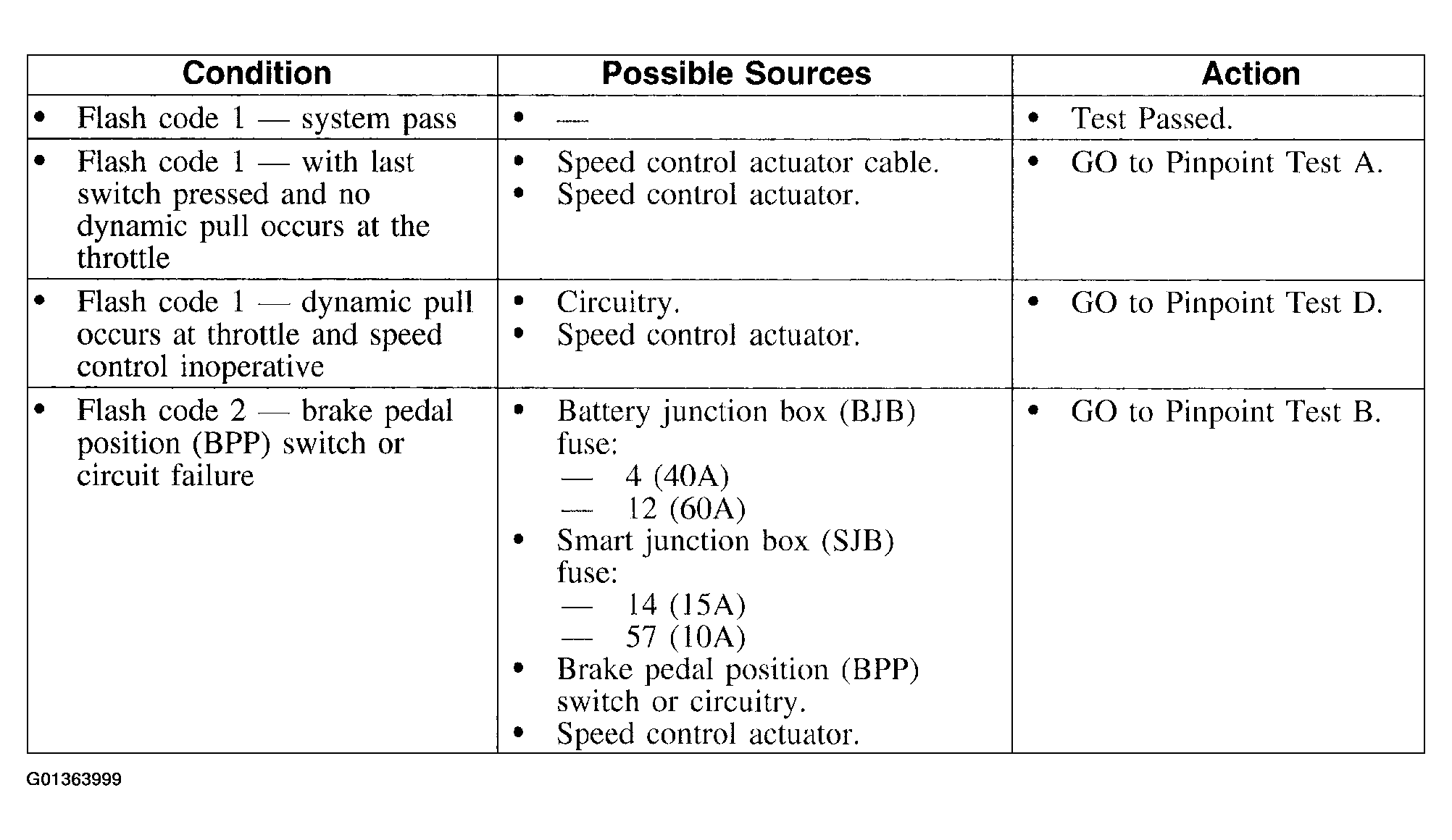

Fig 1: Problem Symptom Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

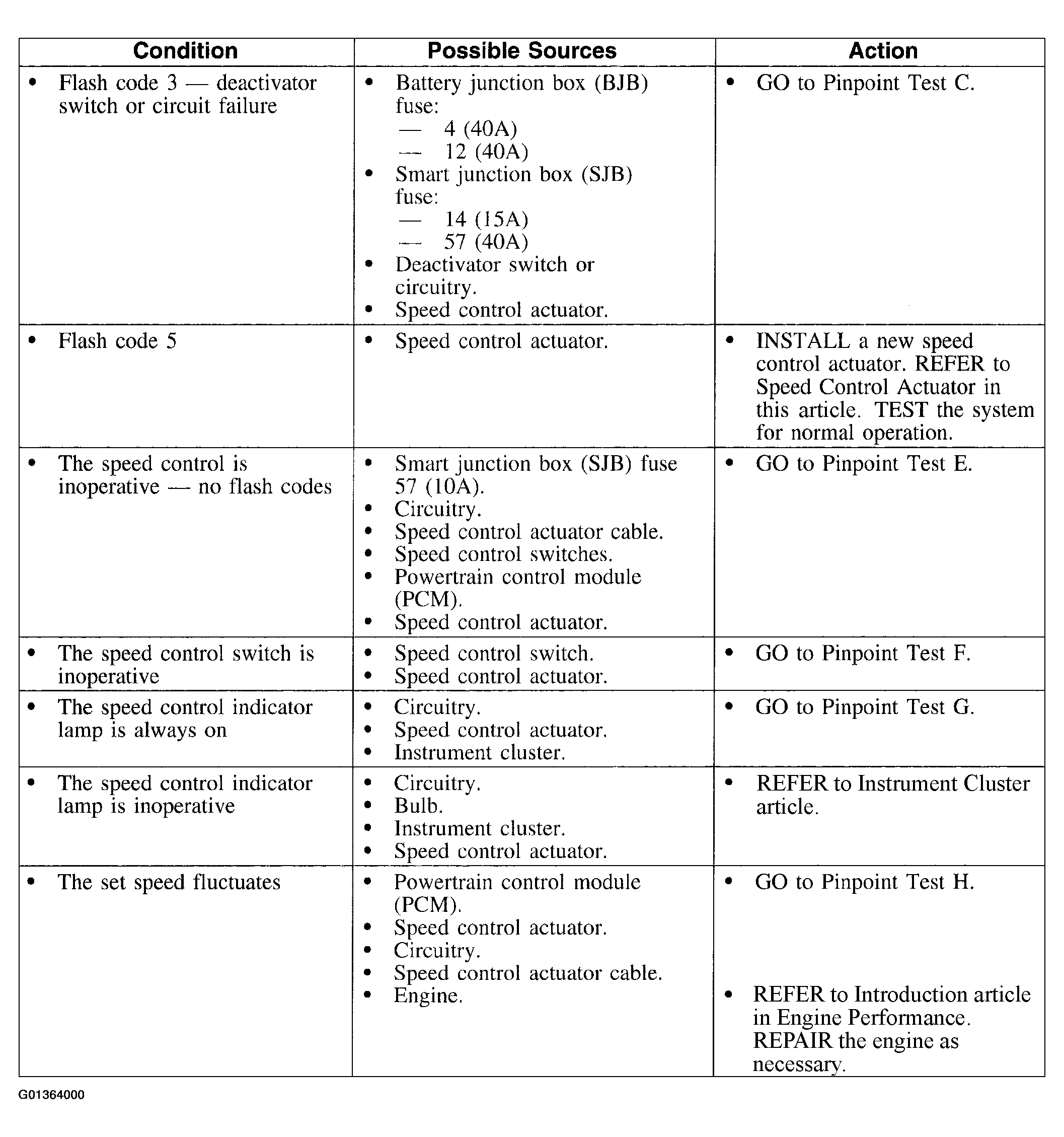

Fig 2: Problem Symptom Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
