Seat Control Switch: Installation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.
  1. Position the switch and install the screws.

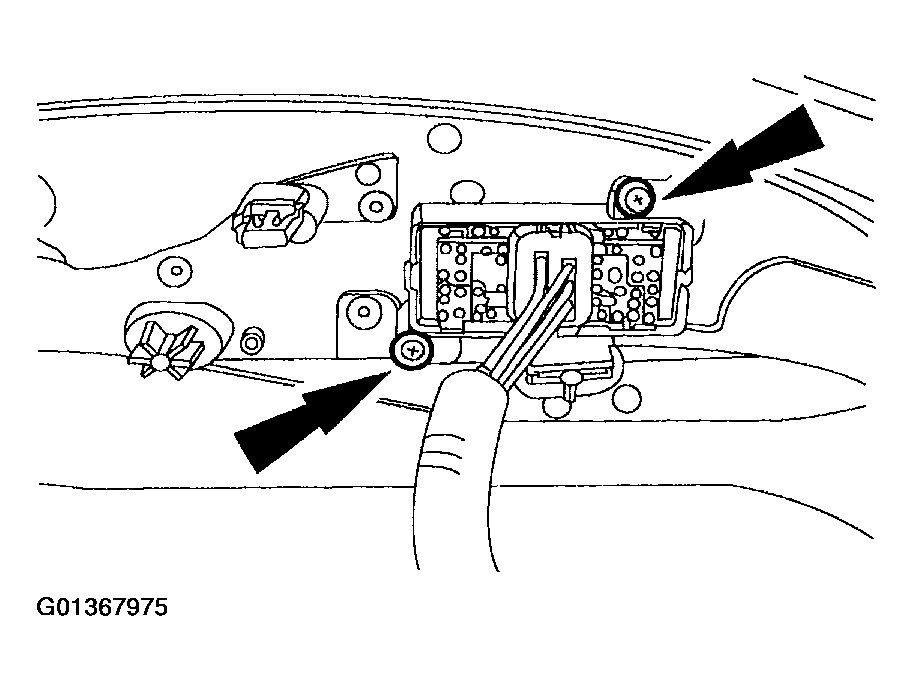

    Fig 1: Installing Switch
    G01367975Courtesy of FORD MOTOR CO.
  2. Position the inner side shield to the seat.

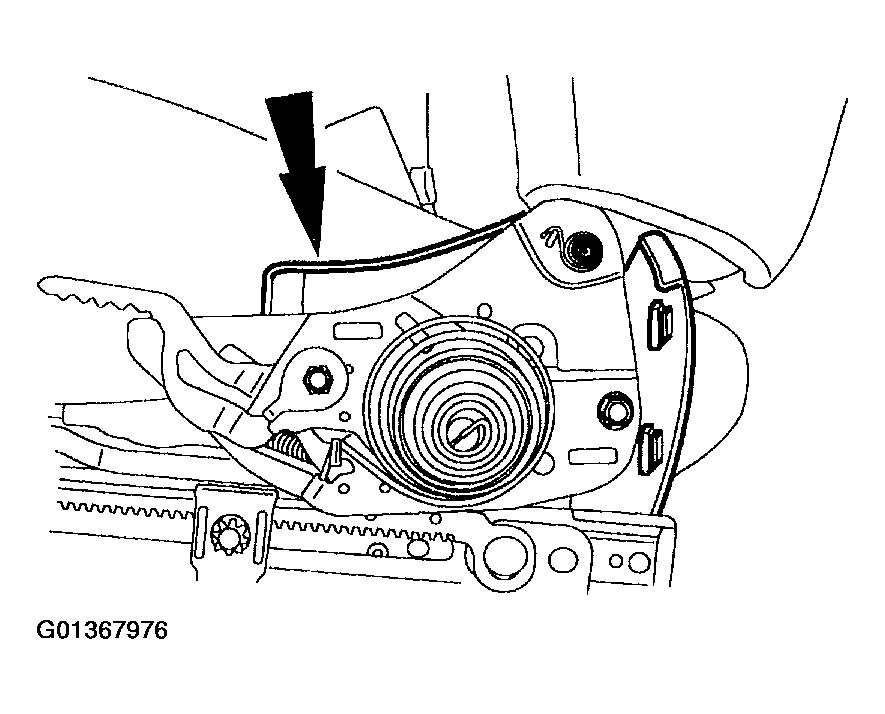

    Fig 2: Positioning Inner Side Shield To Seat
    G01367976Courtesy of FORD MOTOR CO.
  3. Install the outer side shield to the seat.
      NOTE: Route the power seat (if equipped) switch wire harness through the side of the seat while positioning the outer side shield to the seat.
    1. Position the outer side shield to the seat and push in where indicated to install the retaining clips.
    2. Squeeze the inner and outer side shields together to seat the clips.
      Fig 3: Squeezing Inner And Outer Side Shields Together To Seat Clips
      G01367977Courtesy of FORD MOTOR CO.
  4. Install the outer side shield screw.
    Fig 4: Installing Outer Side Shield Screw
    G01367978Courtesy of FORD MOTOR CO.
  5. Install the recliner handle.
    Fig 5: Installing Recliner Handle
    G01367979Courtesy of FORD MOTOR CO.
  6. Connect the power seat track electrical connector (if equipped).
    Fig 6: Connecting Power Seat Track Electrical Connector
    G01367980Courtesy of FORD MOTOR CO.
    7. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Front Seat Removal and Installation procedure.
  7. Install the driver seat. For additional information, refer to FRONT SEAT .
    8. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Supplemental Restraint System (SRS) Deactivation and Reactivation procedure.
  8. Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
    9. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of the vehicle safety standards.
  9. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  10. Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
