Spring Codes

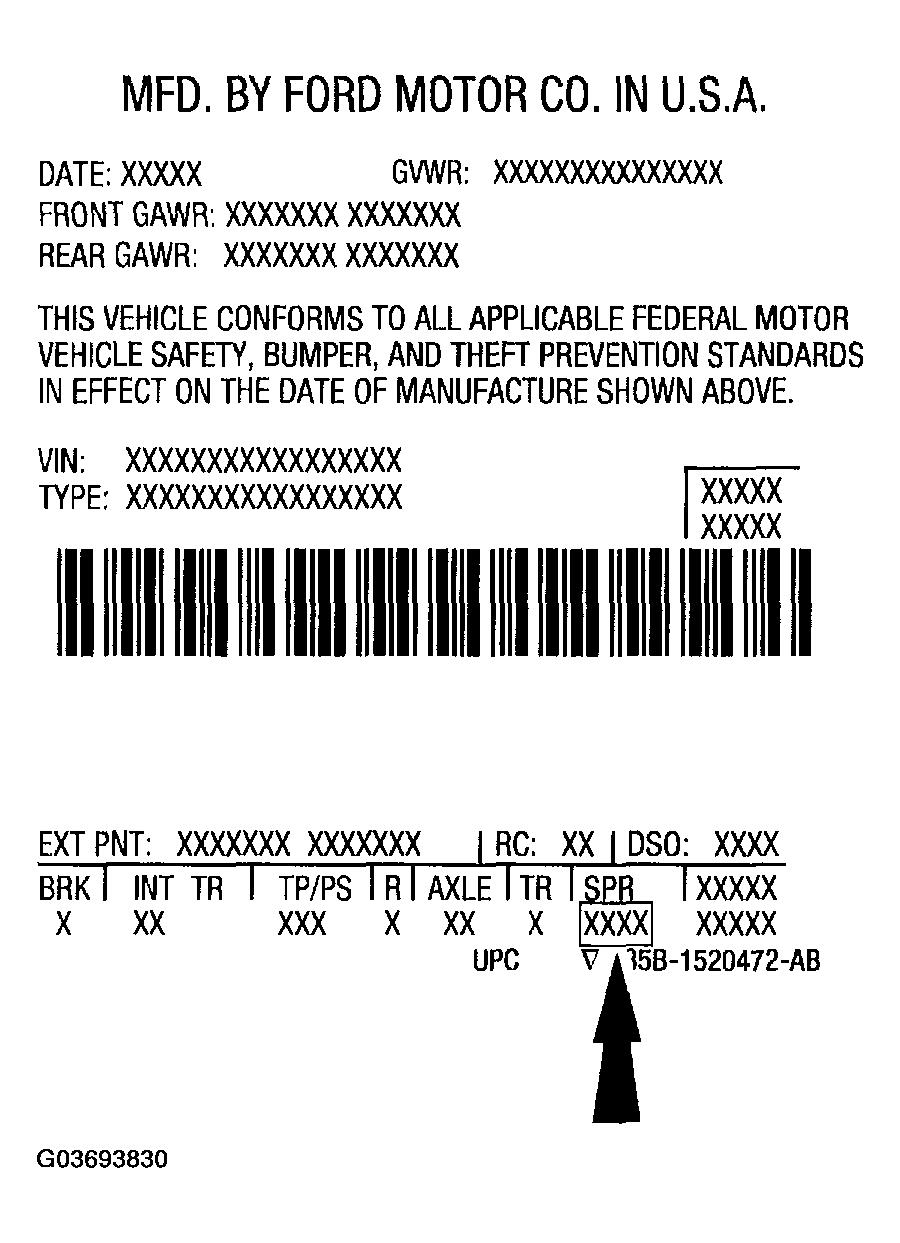

Fig 1: Spring Codes (Vehicle Certification Label)

Courtesy of FORD MOTOR CO.

Spring codes list both front and rear spring codes. The first set of characters identify the front springs. The second set of characters identify the rear springs.

The following lists the available front spring codes:

• A - YF1C-5310-AA
• B - YF1C-5310-BA
• C - YF1C-5310-CA
• D - YF1C-5310-DA

The following lists the available rear spring codes:

• A - 3F13-5560-AA
• B - 3F13-5560-BA
• C - 3F13-5560-CA
• D - 3F13-5560-DA
• E - 3F13-5560-EA
• F - 3F13-5560-FA
• G - 3F13-5560-GA
• 1 - YF12-5560-BDB
• 2 - 2F12-5560-BEA
• 3 - 2F12-5560-BFA
