Heated Seat Switch: Notes

  1. Remove the components in the order listed in the following illustrations and table. To remove individual components, carry out only the following steps:
    COMPONENTS REMOVING STEPS

    Component Steps
    Driver heated seat switch 1-4
    Passenger heated seat switch 1-2, 5-6

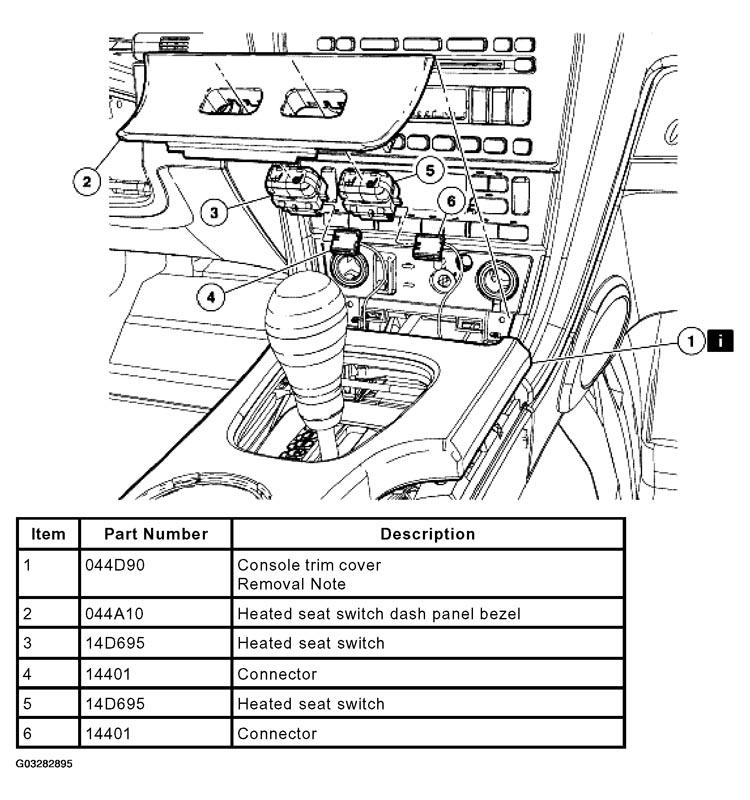

    2. Fig 1: Heated Seat Switch Removal Sequence
    G03282895Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
