Front Electronic Module (FEM) C201b

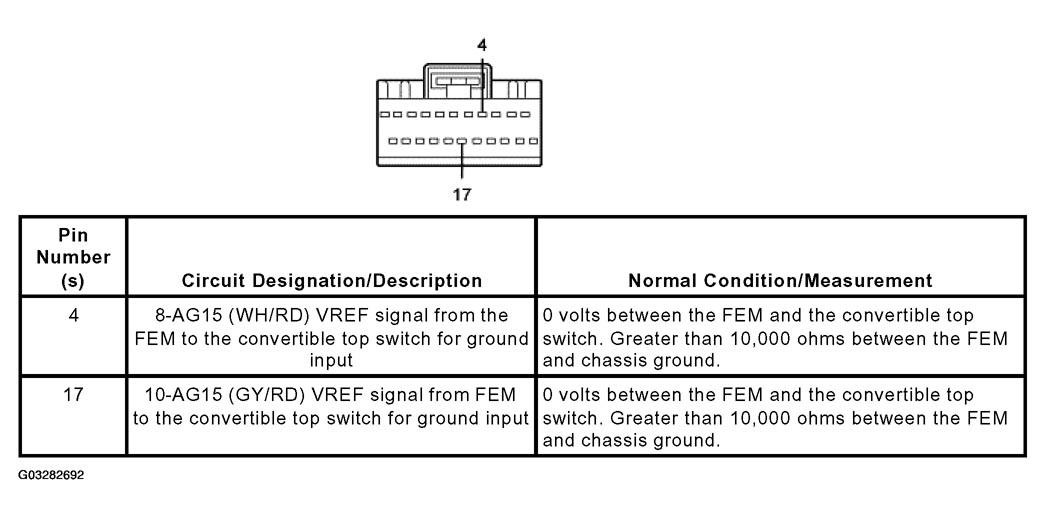

Fig 1: Identifying Front Electronic Module (FEM) C201B
G03282692Courtesy of FORD MOTOR CO.
