Removal And Installation: Fender: Notes

Remove the front bumper cover. For additional information, refer to FRONT BUMPER .
Remove the wheel and tire assembly. For additional information, refer to WHEEL AND TIRE -- FRONT or WHEEL AND TIRE -- REAR .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts only carry, out the listed steps:

FENDER COMPONENT REMOVAL STEPS

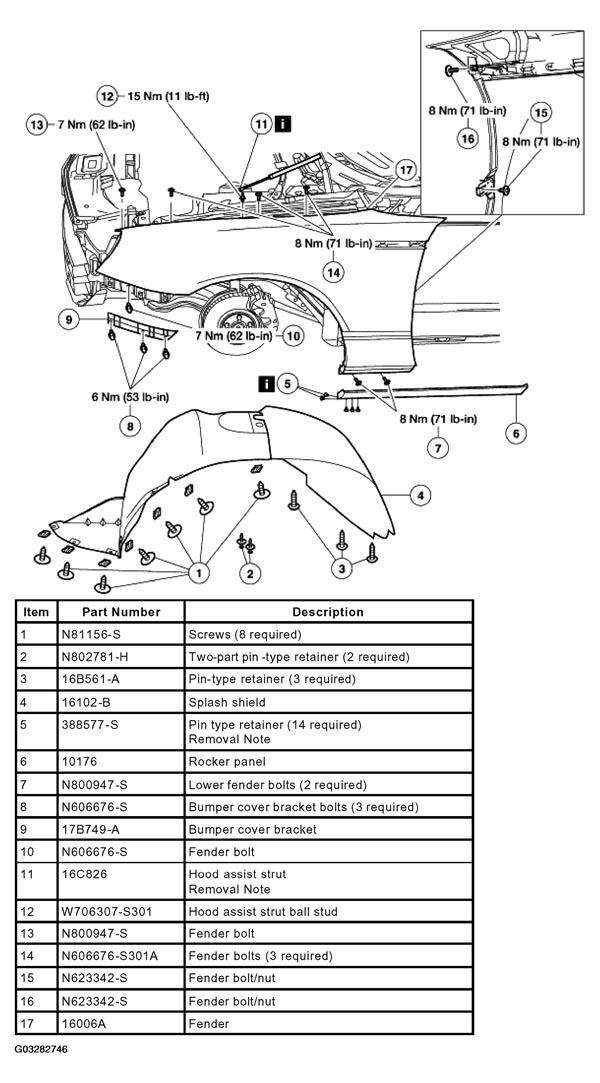

Fig 1: Removing Sequence Of Fender

Courtesy of FORD MOTOR CO.
