Rear Bumper: Notes

Special Tool(s)

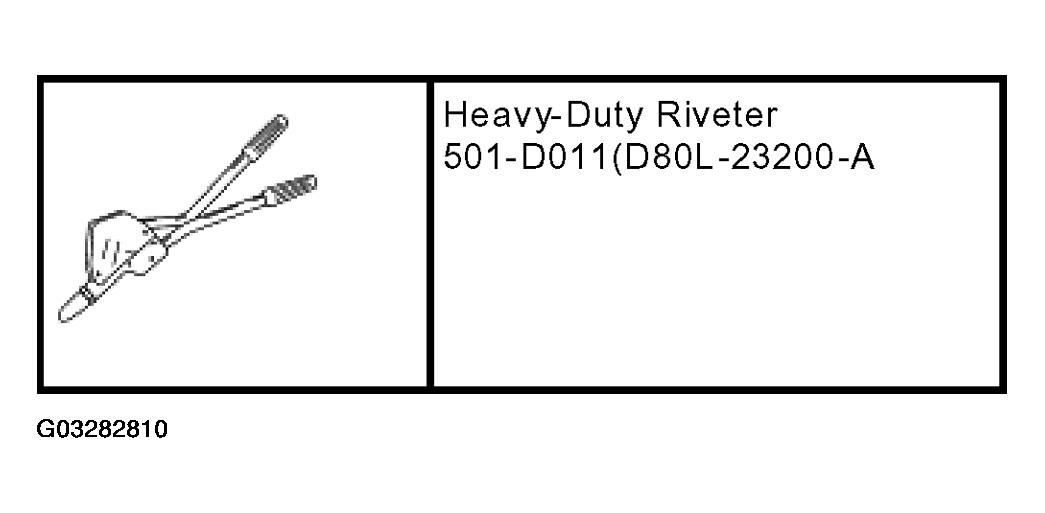

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the parts in the order indicated in the following illustration and table.

   To remove individual parts, only carry out the listed steps:

   REAR BUMPER COMPONENT REMOVAL STEPS



   Part	Steps
   Rear bumper cover	1-6
   Licence plate housing	1-6, 9, 10
   Rear bumper isolator	1-6, 11, 12
   Rear bumper	1-6, 11-16

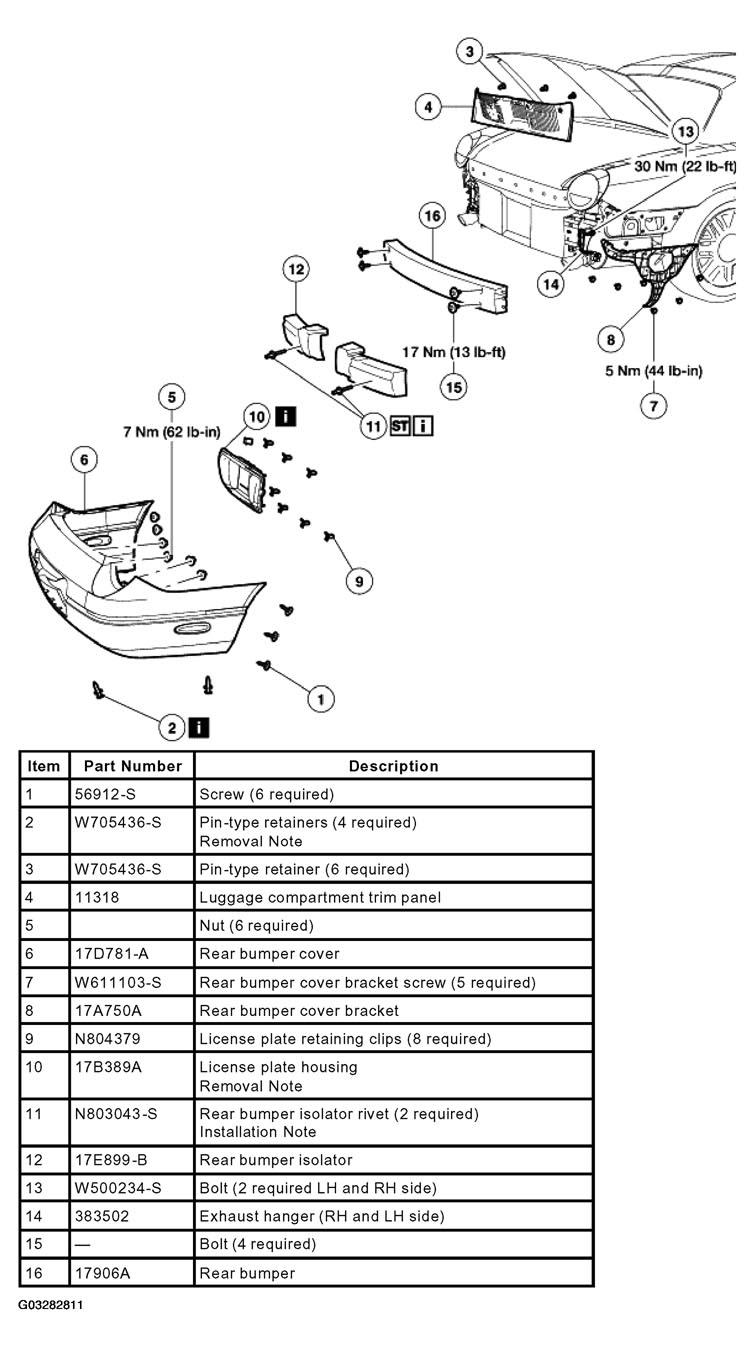

   Fig 2: Rear Bumper Removal Sequence

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.
