Rear Axle Assembly: Notes

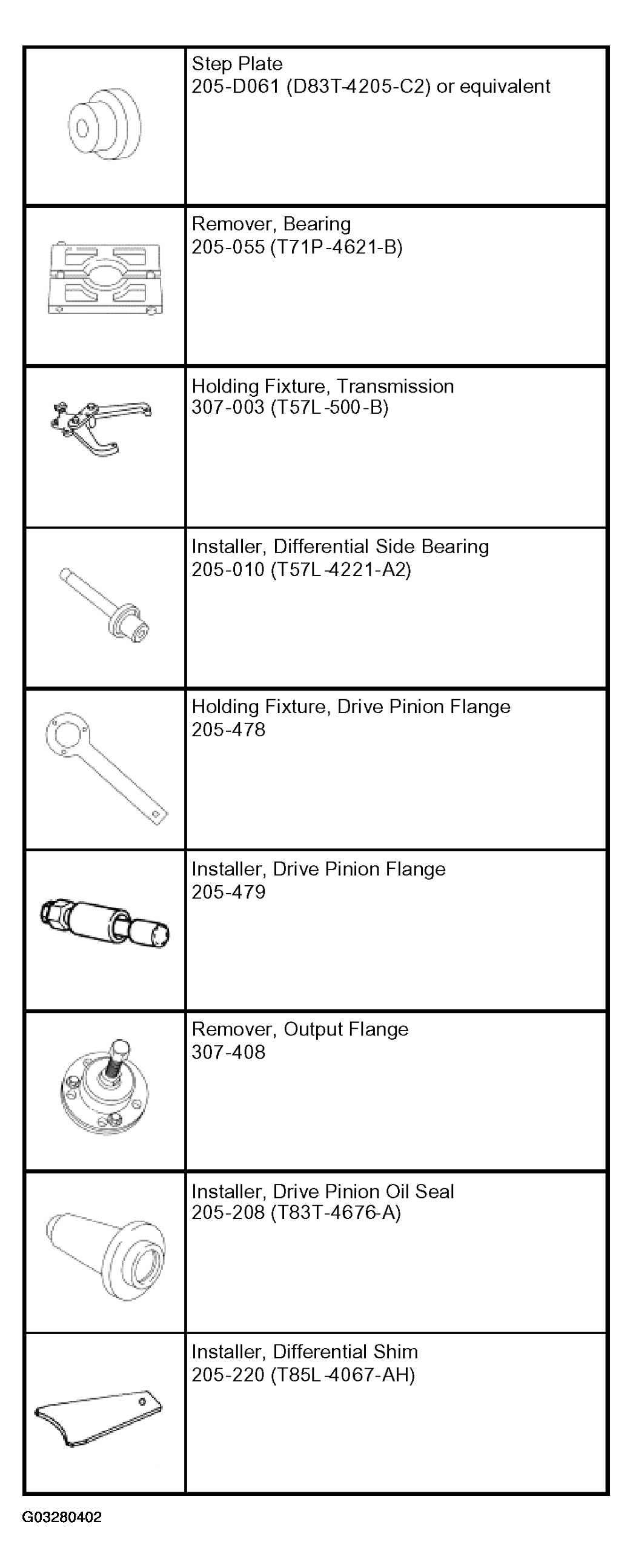

Fig 1: Identifying Special Tool(s) (1 Of 3)

Courtesy of FORD MOTOR CO.

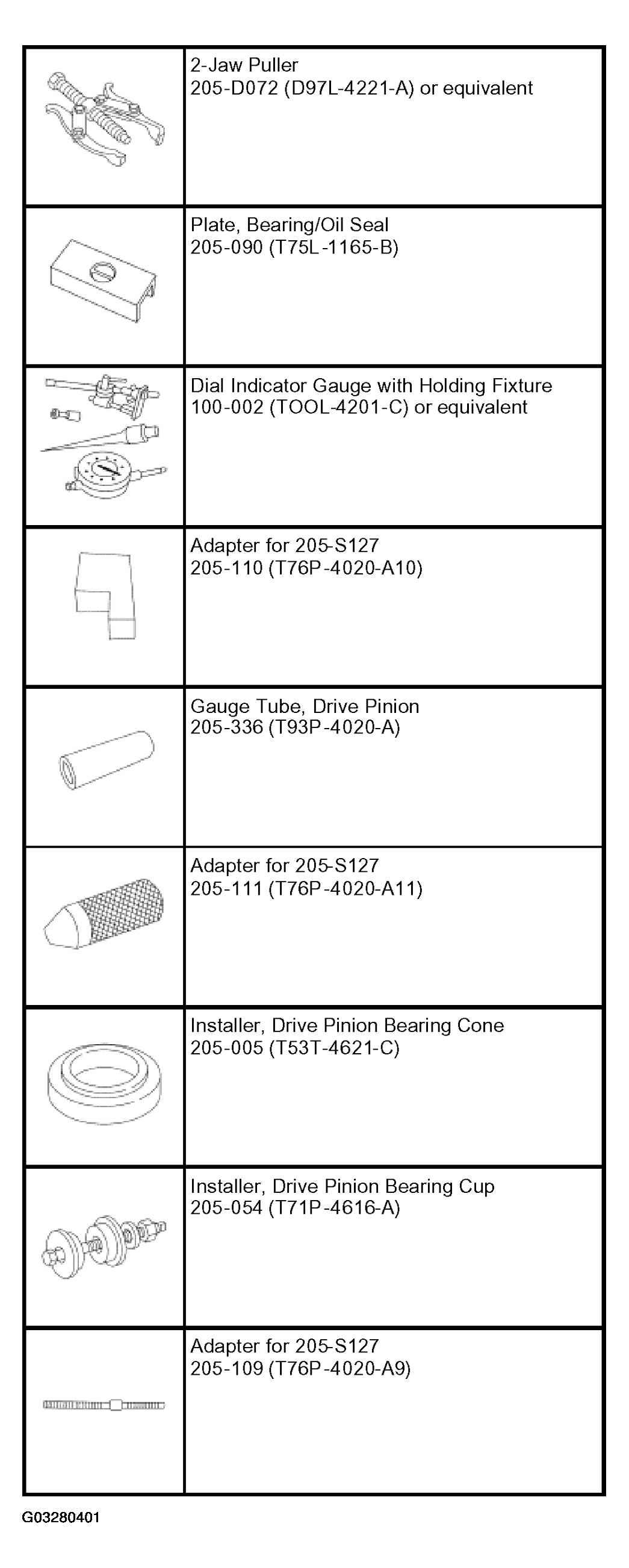

Fig 2: Identifying Special Tool(s) (2 Of 3)

Courtesy of FORD MOTOR CO.

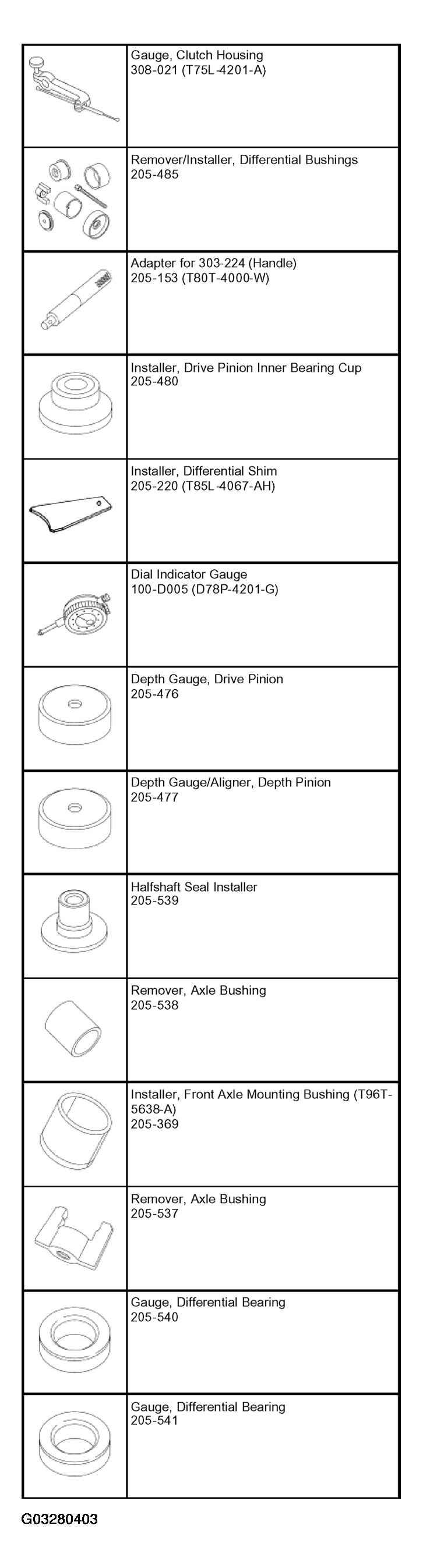

Fig 3: Identifying Special Tool(s) (3 Of 3)

Courtesy of FORD MOTOR CO.

MATERIALS

Item	Specification
Premium Long Life Grease XG-1-C	ESA-M1C75-B
SAE 75W -140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A
Stud and Bearing Mount E0AZ-19554-BA	WSK-M2G349-A1

With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to GENERAL INFORMATION .
Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
Remove the components in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.

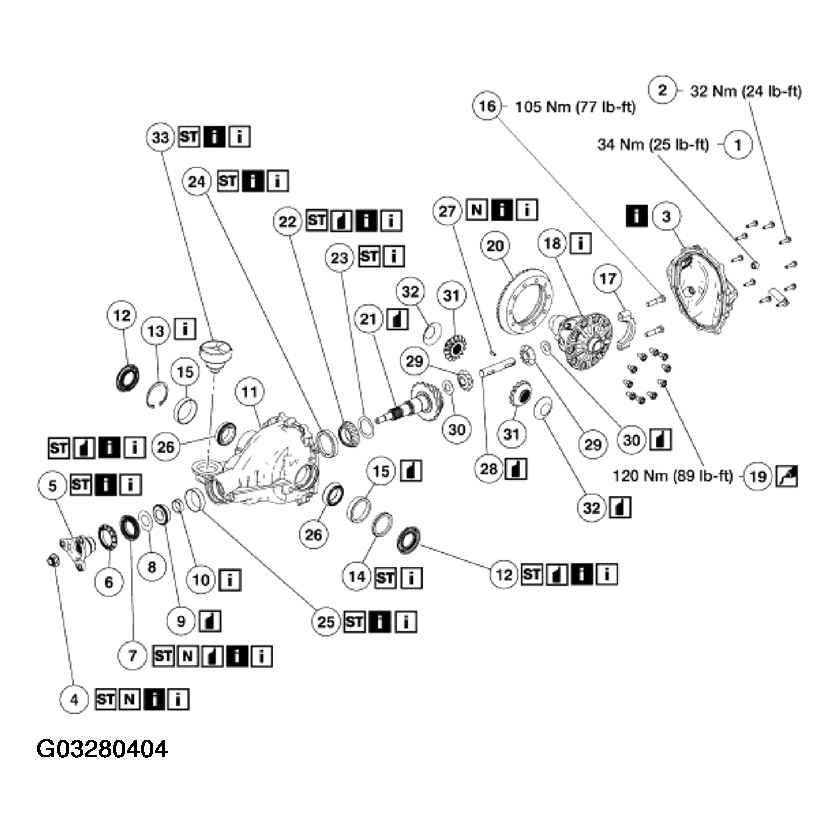

Fig 4: Identifying Rear Axle Assembly Components (1 Of 2)
Courtesy of FORD MOTOR CO.

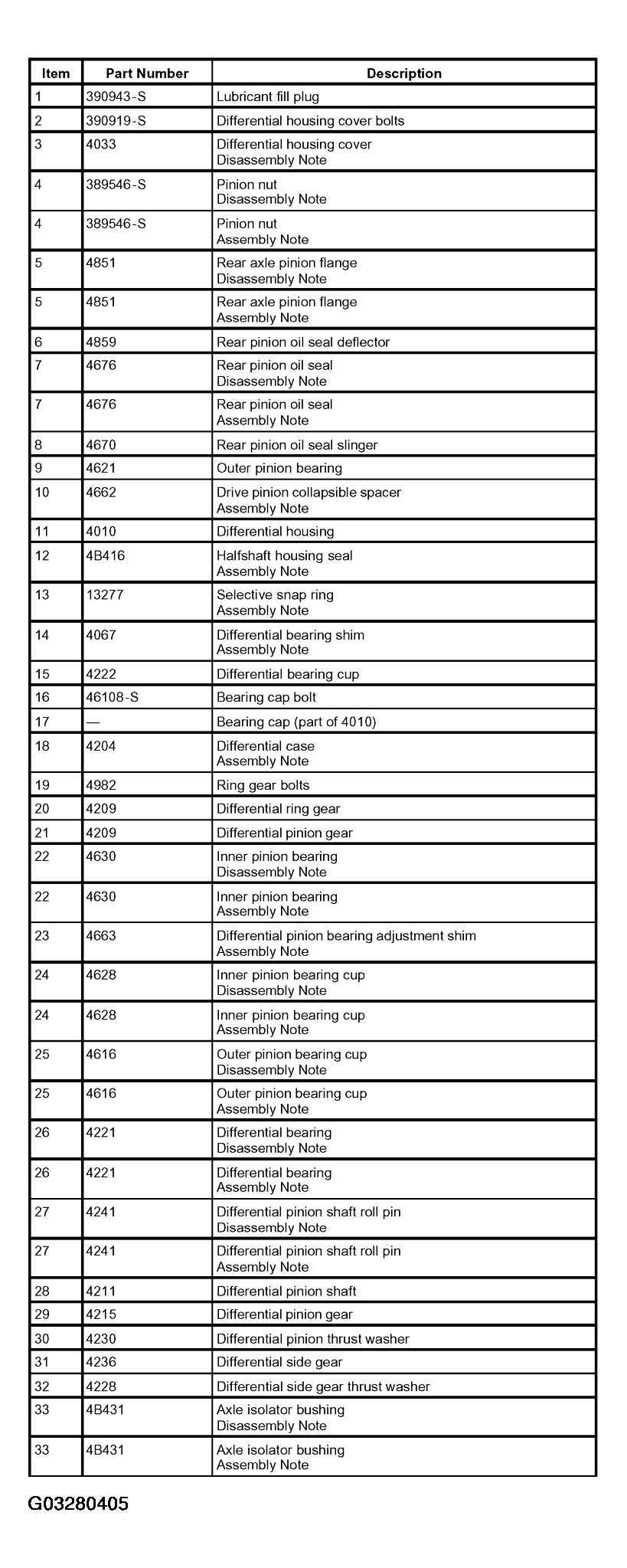

Fig 5: Identifying Rear Axle Assembly Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Fill the axle with the specified quantity of the specified lubricant.
