Rear Axle Assembly: Notes

1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to GENERAL INFORMATION .
2. Remove the rear halfshafts. For additional information, refer to REAR AXLE HALFSHAFTS, BEARINGS AND SEALS .
3. Disconnect the driveshaft from the rear axle flange. Support the driveshaft at the center and rear.
4. Position a suitable hydraulic jack to the axle housing. Securely strap the jack to the housing.
5. Remove the components in the order indicated in the following illustration and table.
6. To install, reverse the removal procedure.

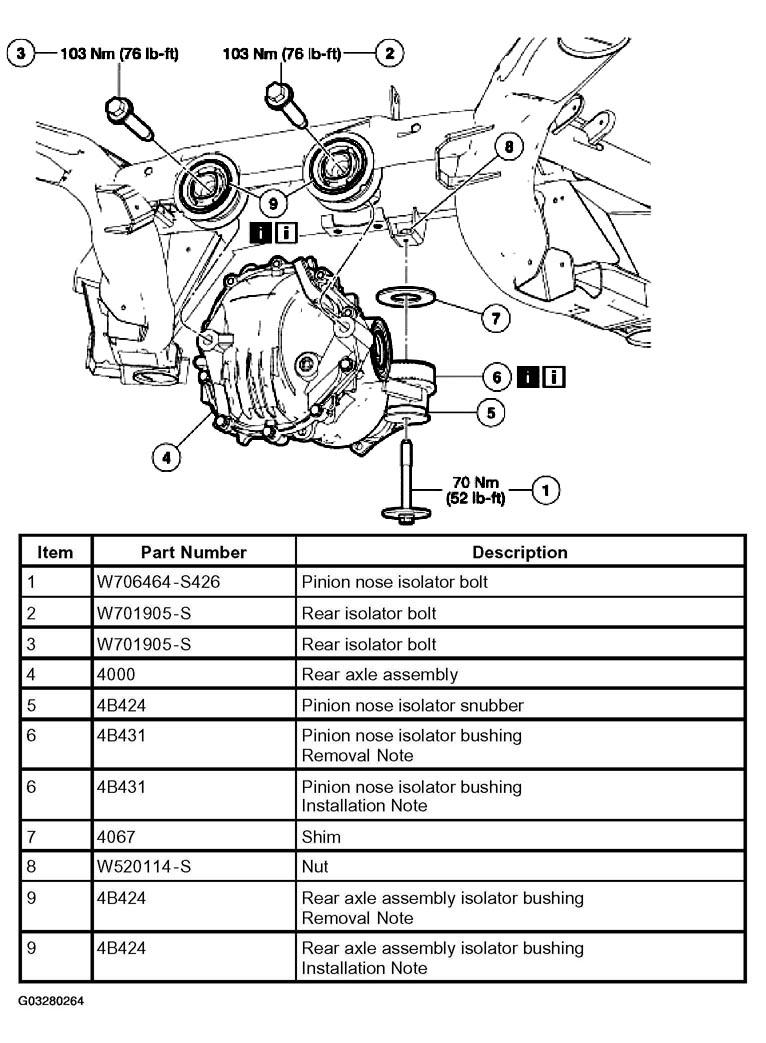

   Fig 2: Removing Differential

   Courtesy of FORD MOTOR CO.
7. Fill the axle with the specified quantity of the specified lubricant.
