Exhaust System - 3.9L: Notes

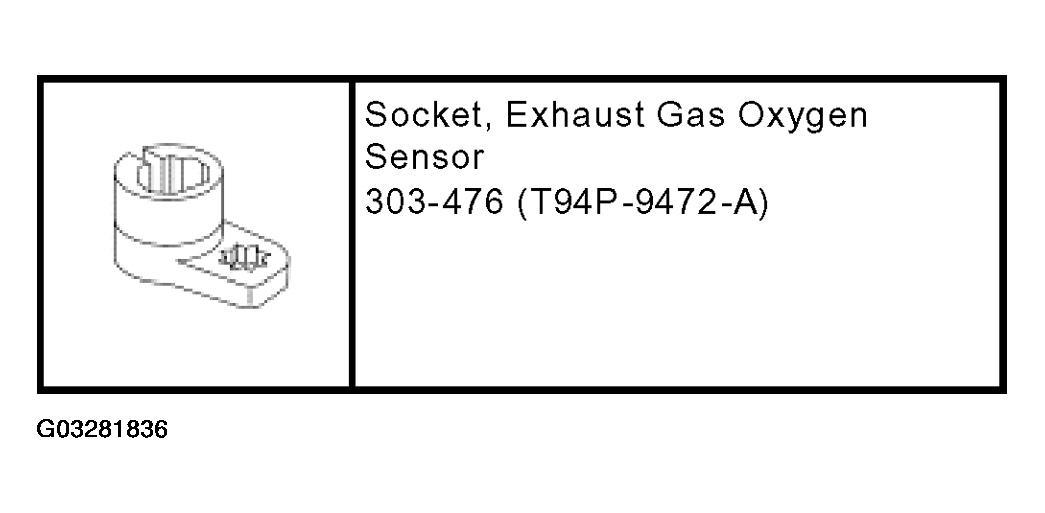

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATIONS

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (in Canada CXG-2-B)	ESE-M12A4-A
Penetrating and Lock Lubricant XL-1	N/A

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to GENERAL INFORMATION .

To remove individual exhaust components, only carry out the listed steps.

To remove individual parts, only carry out the listed steps:

EXHAUST SYSTEM REMOVAL STEPS

Part	Steps
Muffler	1-5
Converter Assembly	1-10

Remove the components in the order indicated in the following illustration and table.

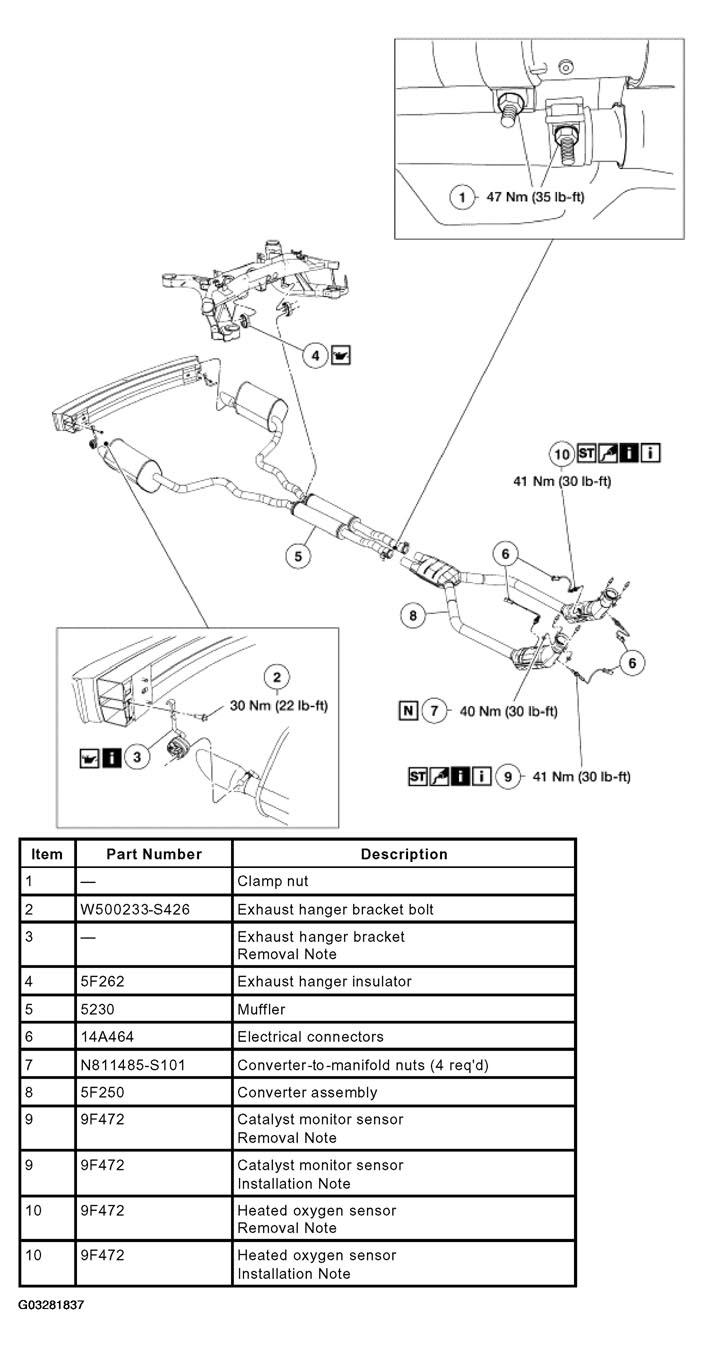

Fig 2: Identifying Exhaust System - 3.9L Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check and, if necessary, align the exhaust system.
