Valve Spring Free Length

Measure the free length of each valve spring.
- Refer to GENERAL SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to ENGINE - 3.9L article.

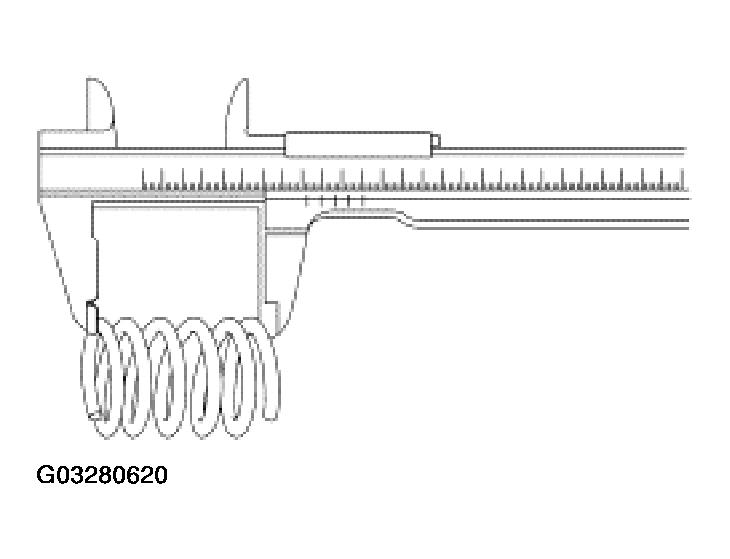

Fig 1: Measuring Valve Spring Free Length
Courtesy of FORD MOTOR CO.
