Valve Cover LH

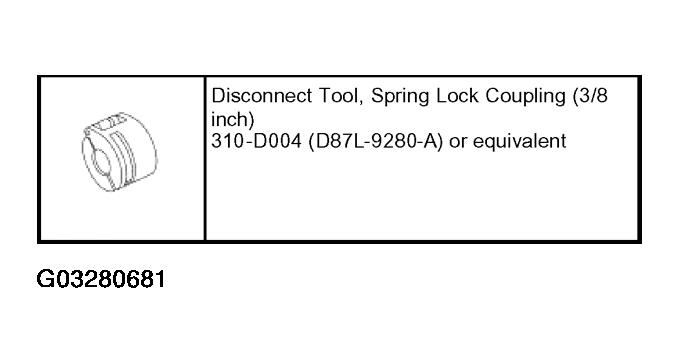

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Disconnect the battery ground cable.
2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
3. Remove the LH ignition coils. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
4. Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
5. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM .

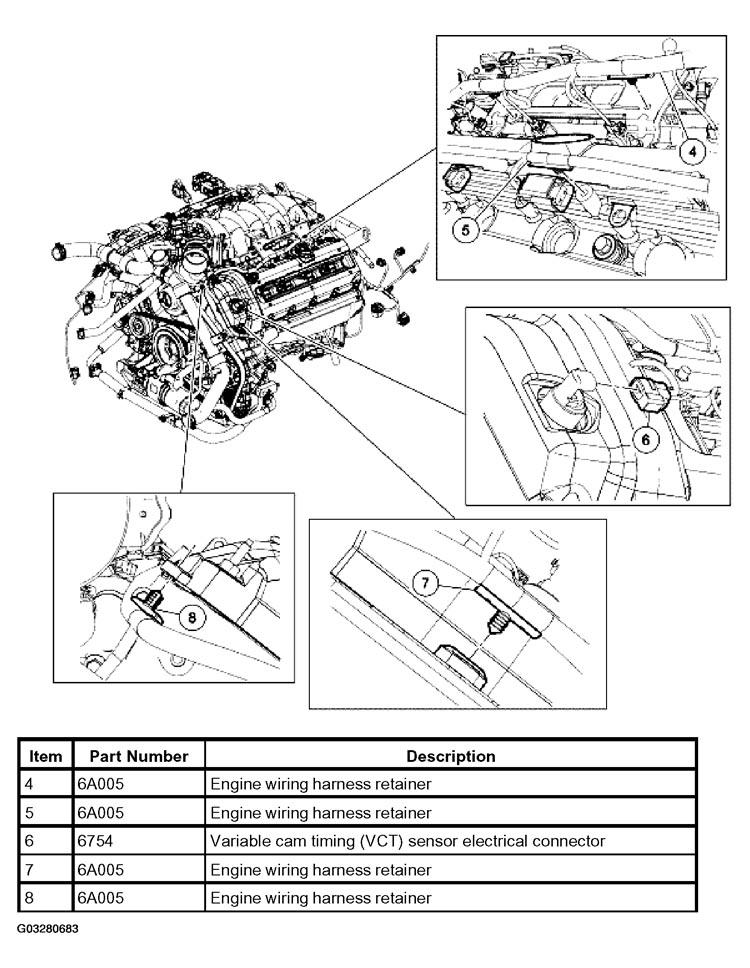

6. Remove the components in the order indicated in the following illustration and table.

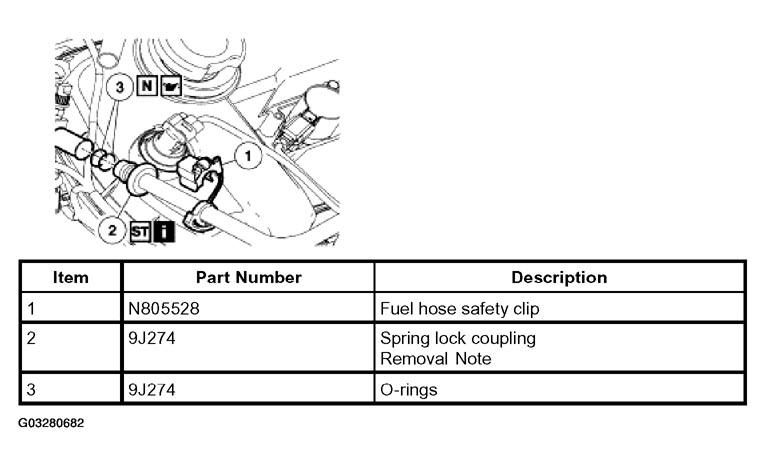

   Fig 2: Removing Components (1 Of 3)

   Courtesy of FORD MOTOR CO.
7. Remove the components in the order indicated in the following illustration and table.
   Fig 3: Removing Components (2 Of 3)

   Courtesy of FORD MOTOR CO.
8. Remove the components in the order indicated in the following illustration and table.

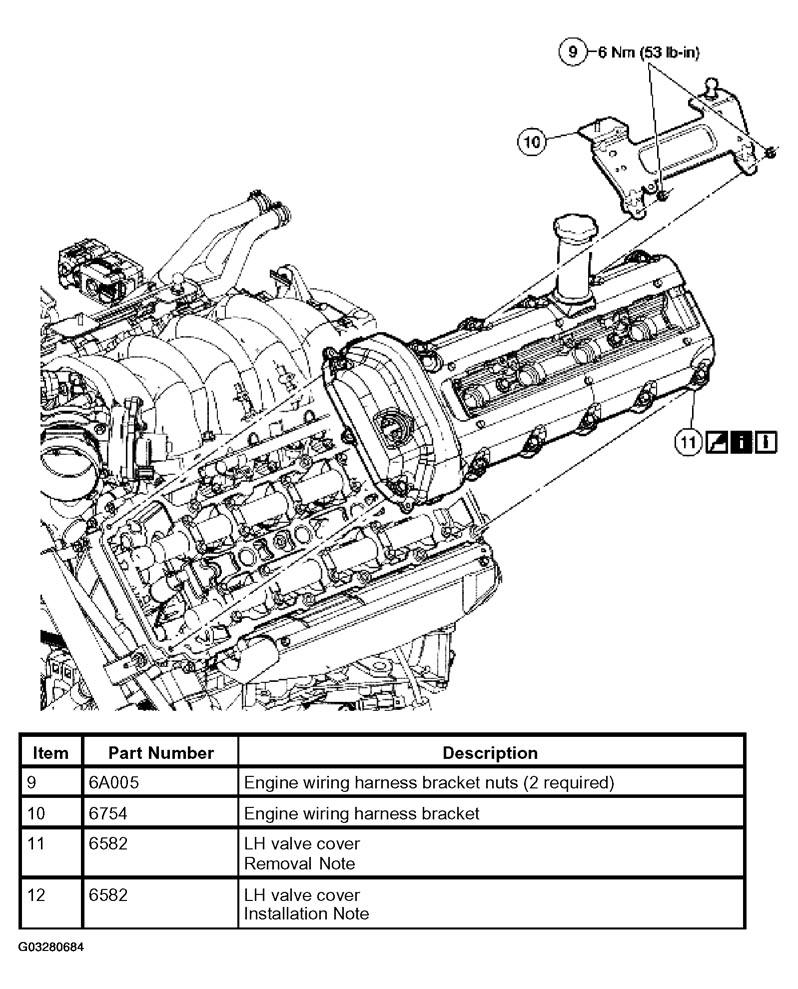

   Fig 4: Removing Components (3 Of 3)

   Courtesy of FORD MOTOR CO.
9. To install, reverse the removal procedure.

ITEM 2: SPRING LOCK COUPLING REMOVAL NOTE

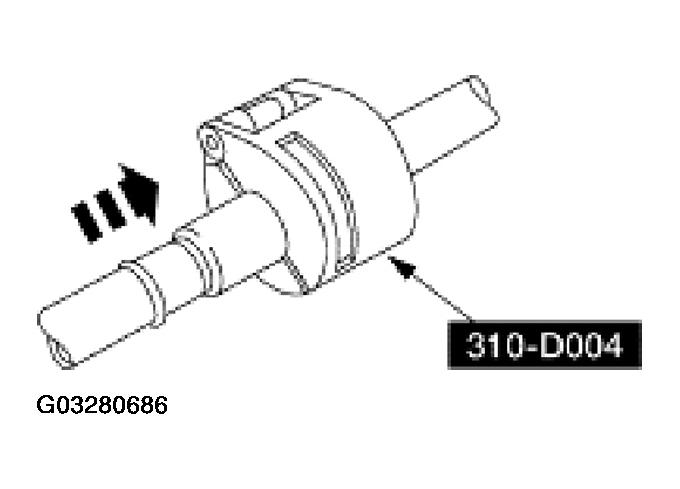

1. Install the special tool.
   Fig 5: Installing Special Tool

   Courtesy of FORD MOTOR CO.

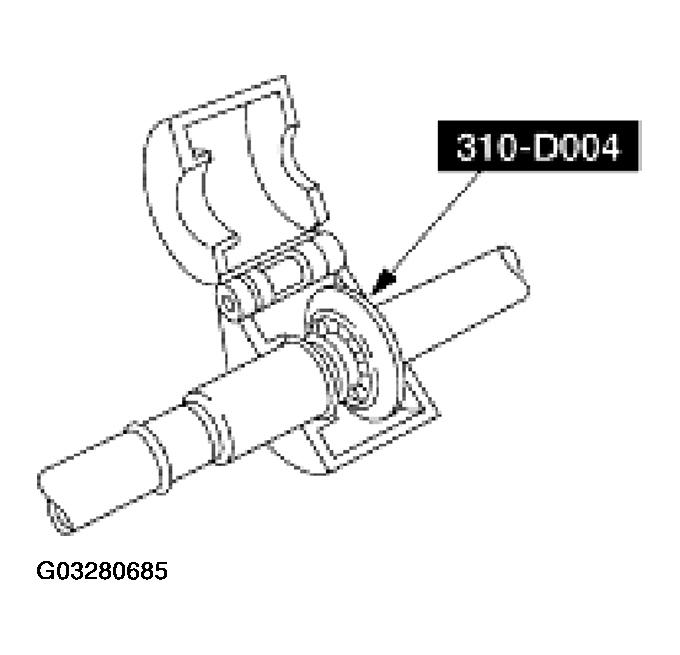

2. Press the special tool into the open end of the cage.
   Fig 6: Pressing Special Tool Into Open End Of Cage

   Courtesy of FORD MOTOR CO.

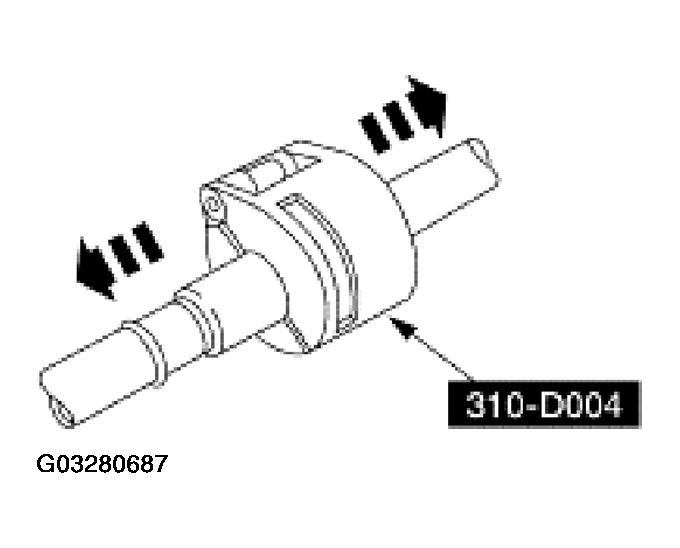

3. Separate the spring lock coupling.
   Fig 7: Separating Spring Lock Coupling

   Courtesy of FORD MOTOR CO.

ITEM 11: LH VALVE COVER REMOVAL NOTE

CAUTION: To disconnect the Norma fitting, squeeze the tabs and pull straight out or damage to the fitting may occur.
1. Disconnect the crankcase ventilation tube.

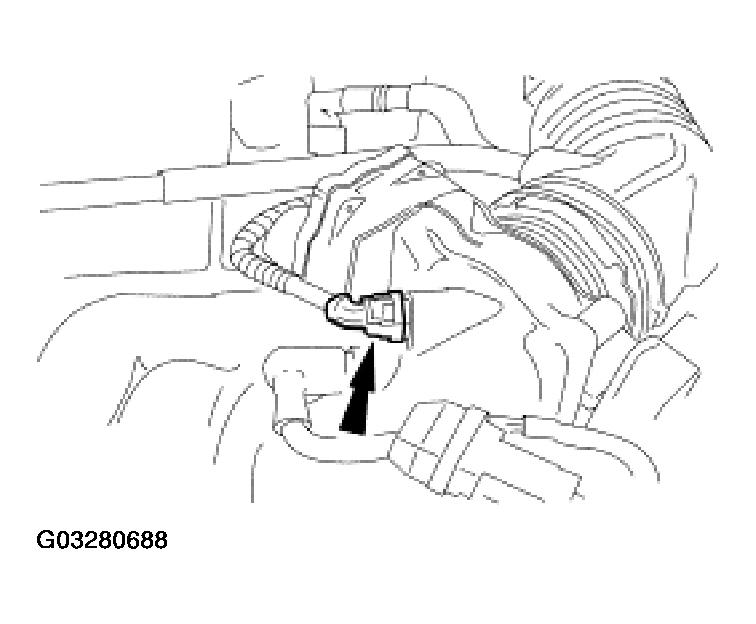

2. Disconnect the evaporative emission (EVAP) canister purge valve hose.
   Fig 8: Disconnecting Evaporative Emission (EVAP) Canister Purge Valve Hose

   Courtesy of FORD MOTOR CO.

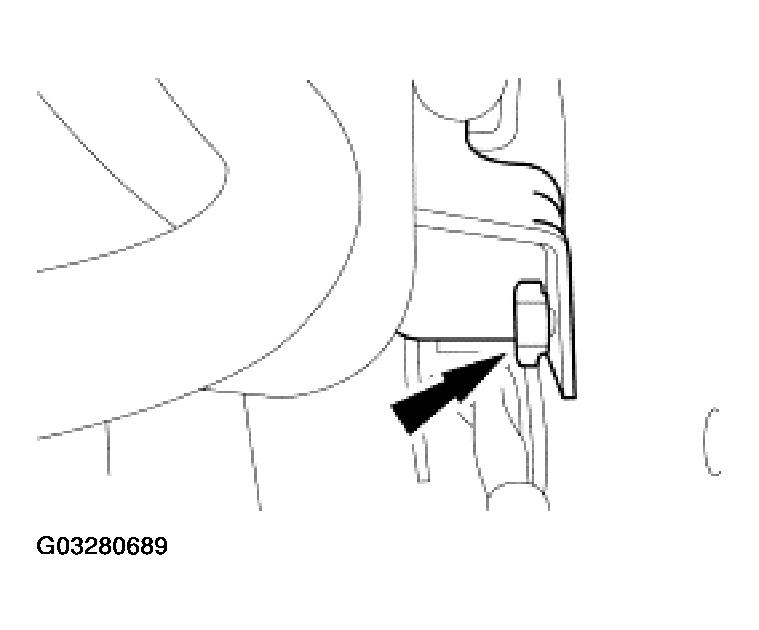

3. Remove the fuel hose bracket bolt from the LH shock tower.
   Fig 9: Removing Fuel Hose Bracket Bolt From LH Shock Tower

   Courtesy of FORD MOTOR CO.

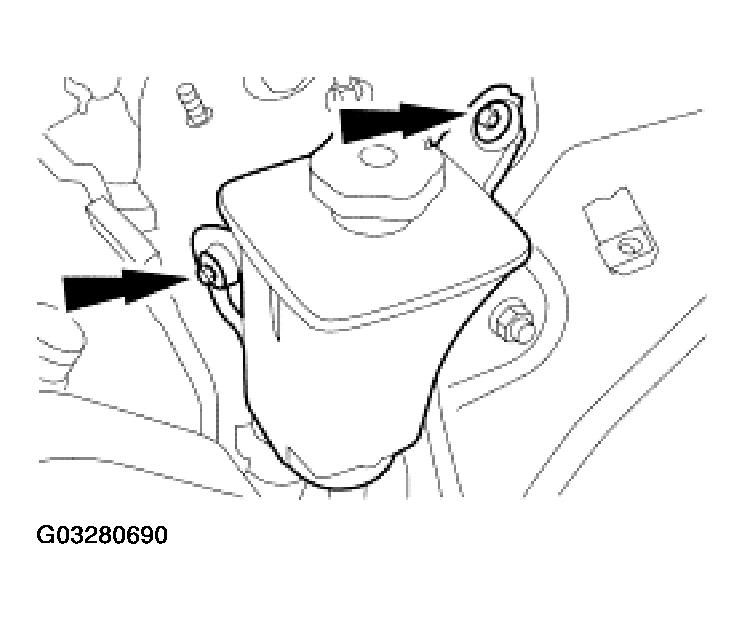

4. Loosen the bolts and position the power steering pump reservoir aside.
   Fig 10: Loosing Bolts & Position Power Steering Pump

   Courtesy of FORD MOTOR CO.
NOTE: The valve cover bolts are not to be removed from the valve cover.

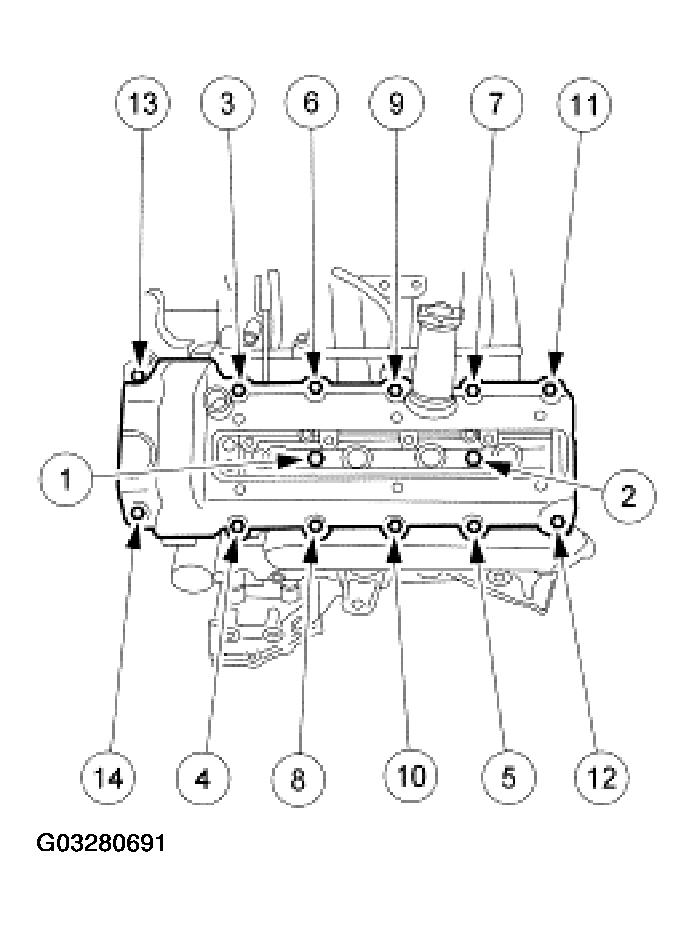

5. Remove the LH valve cover.
   • Loosen the bolts in the sequence shown.
     Fig 11: Removing LH Valve Cover

     Courtesy of FORD MOTOR CO.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of sealant.
Fig 12: Cleaning Sealing
Courtesy of FORD MOTOR CO.

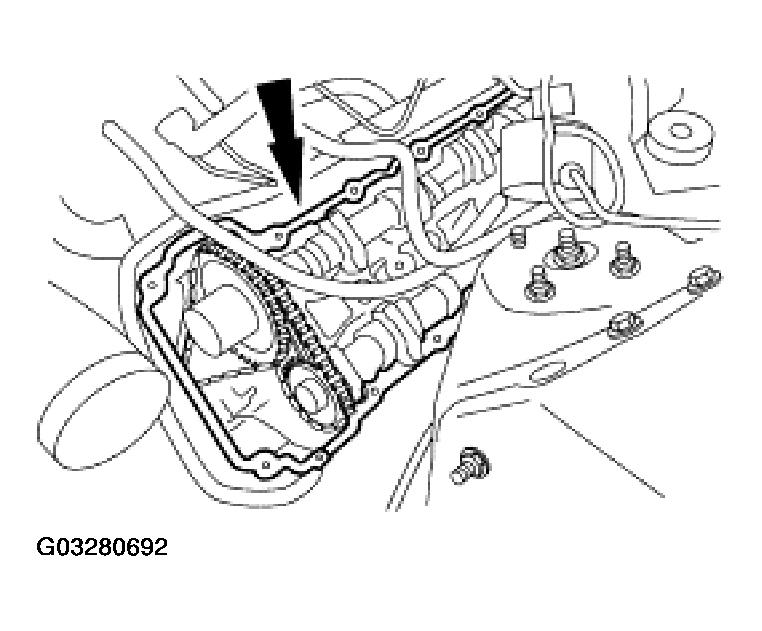

6. Clean the sealing surfaces.

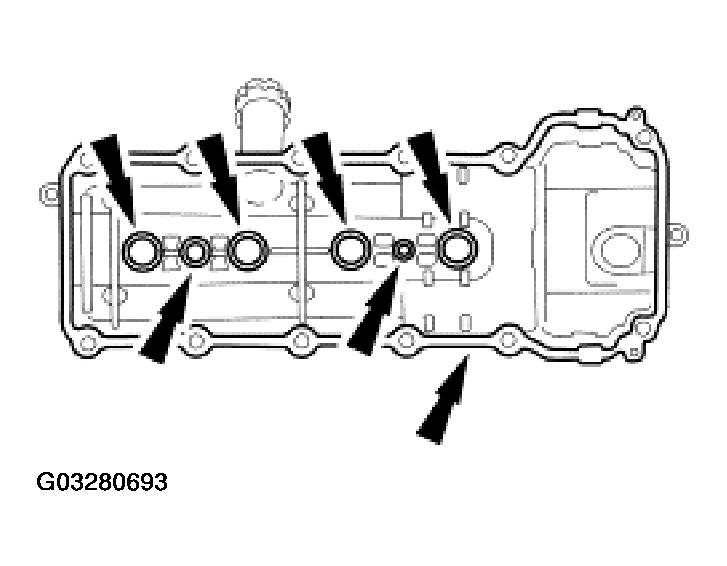

7. Install new gaskets.
   Fig 13: Installing New Gaskets

   Courtesy of FORD MOTOR CO.

ITEM 11: LH VALVE COVER INSTALLATION NOTE

NOTE: If the valve cover is not secured within four minutes of sealant application the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, which ever is longer. Failure to follow this procedure can cause future oil leakage.

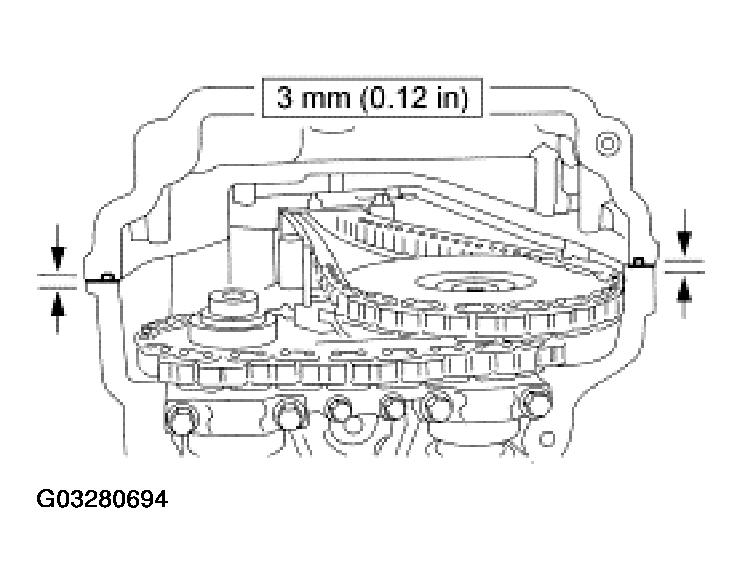

Fig 14: Applying Two Beads Of Silicone Gasket & Sealant
Courtesy of FORD MOTOR CO.
1. Apply two beads of silicone gasket and sealant as shown.

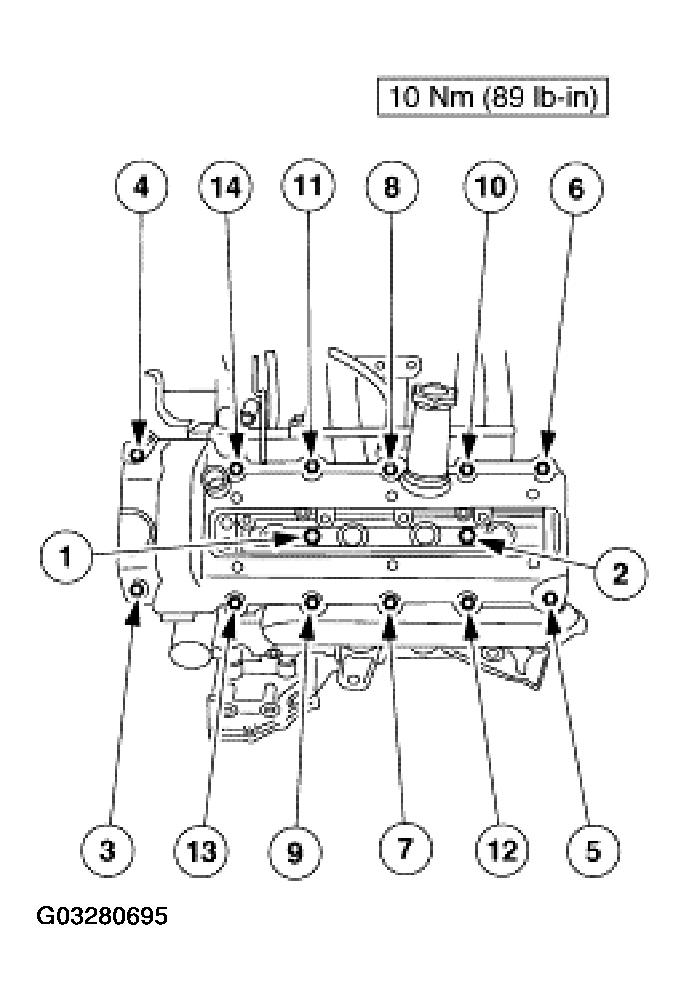

2. Install the LH valve cover.
   • Position the valve cover and tighten the bolts in the sequence shown.
     Fig 15: Installing LH Valve Cover

     Courtesy of FORD MOTOR CO.

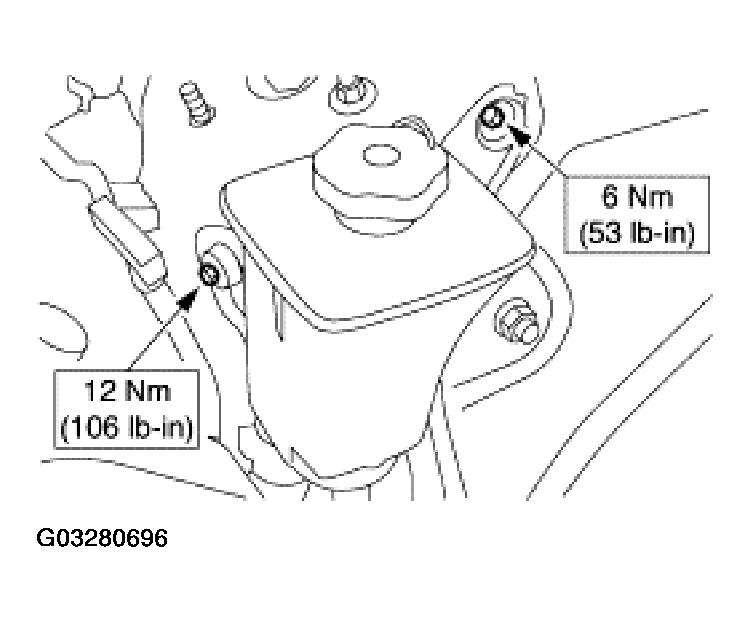

3. Install the power steering pump reservoir.
   Fig 16: Installing Power Steering Pump Reservoir

   Courtesy of FORD MOTOR CO.

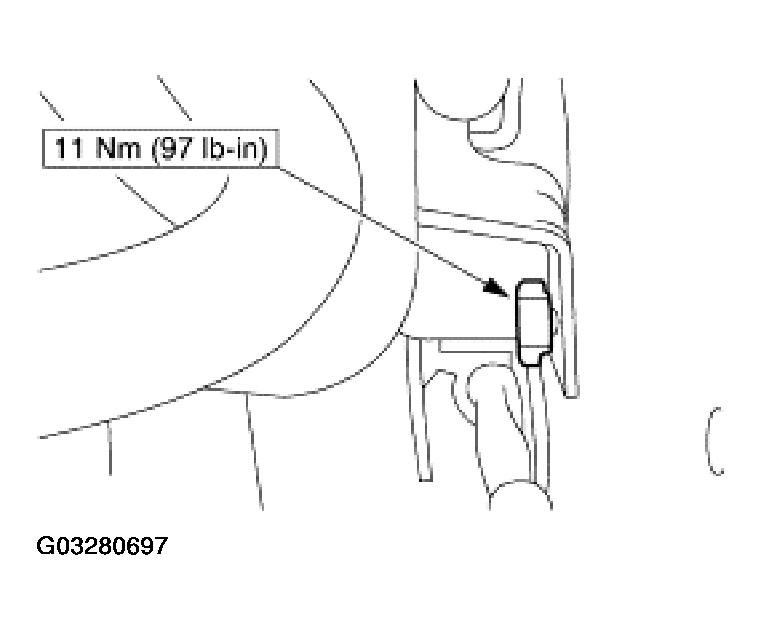

4. Install the fuel hose bracket bolt.
   Fig 17: Installing Fuel Hose Bracket Bolt

   Courtesy of FORD MOTOR CO.

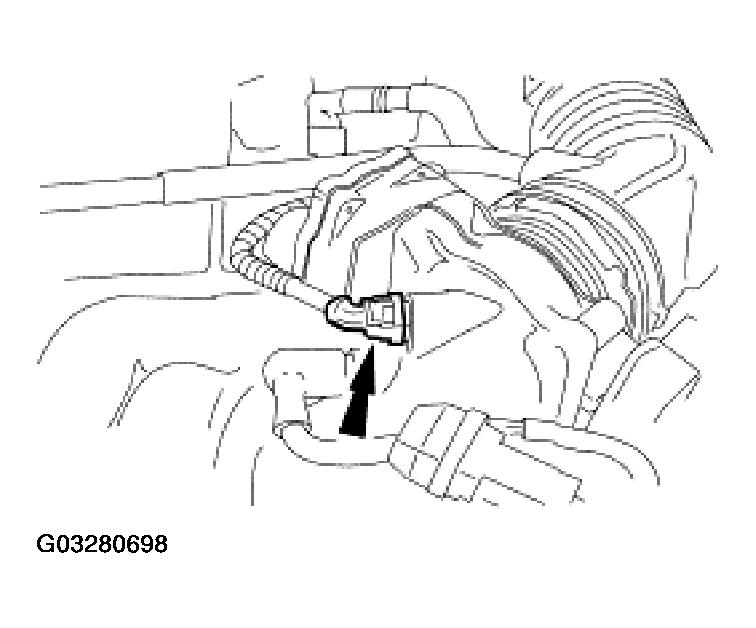

5. Connect the crankcase ventilation tube.
   Fig 18: Connecting Crankcase Ventilation Tube

   Courtesy of FORD MOTOR CO.
