Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
Remove the components in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.

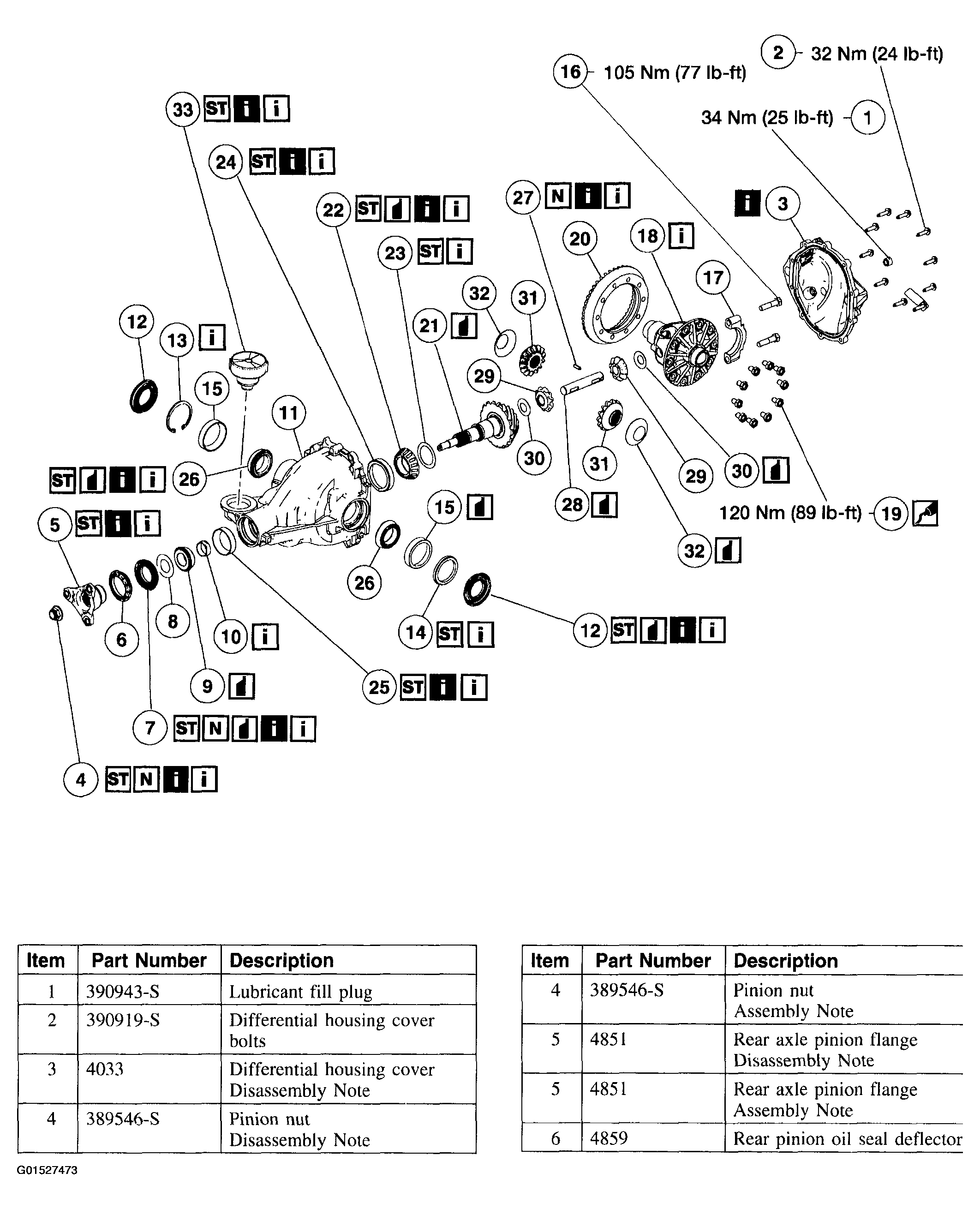

Fig 1: Rear Axle Assembly Component Locator (Items 1-6)
Courtesy of FORD MOTOR CO.

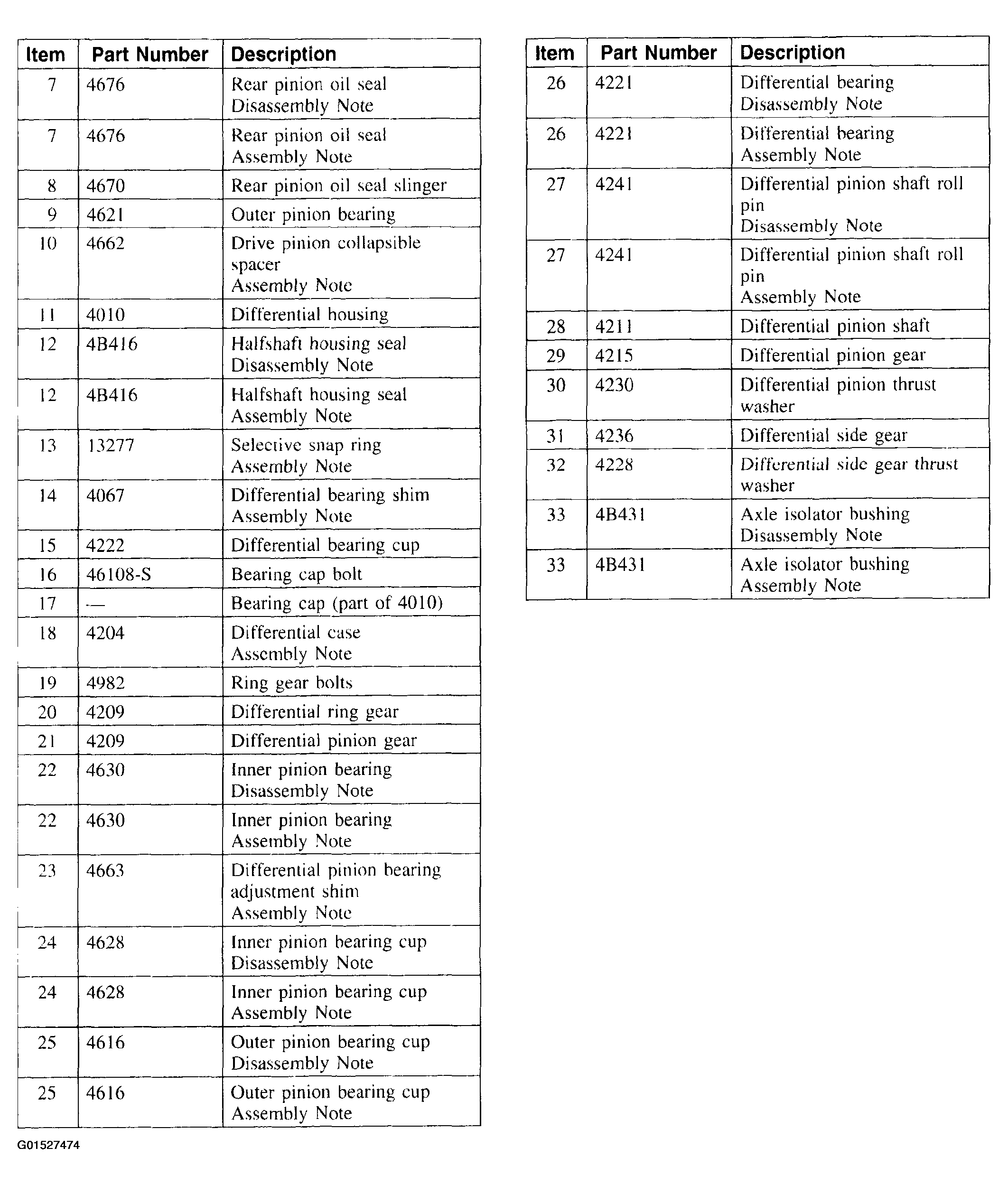

Fig 2: Rear Axle Assembly Component Locator (Items 7-33)
Courtesy of FORD MOTOR CO.
Fill the axle with the specified quantity of the specified lubricant.
