Front Disc Brake: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Material Chart

G01527573

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the figures below.

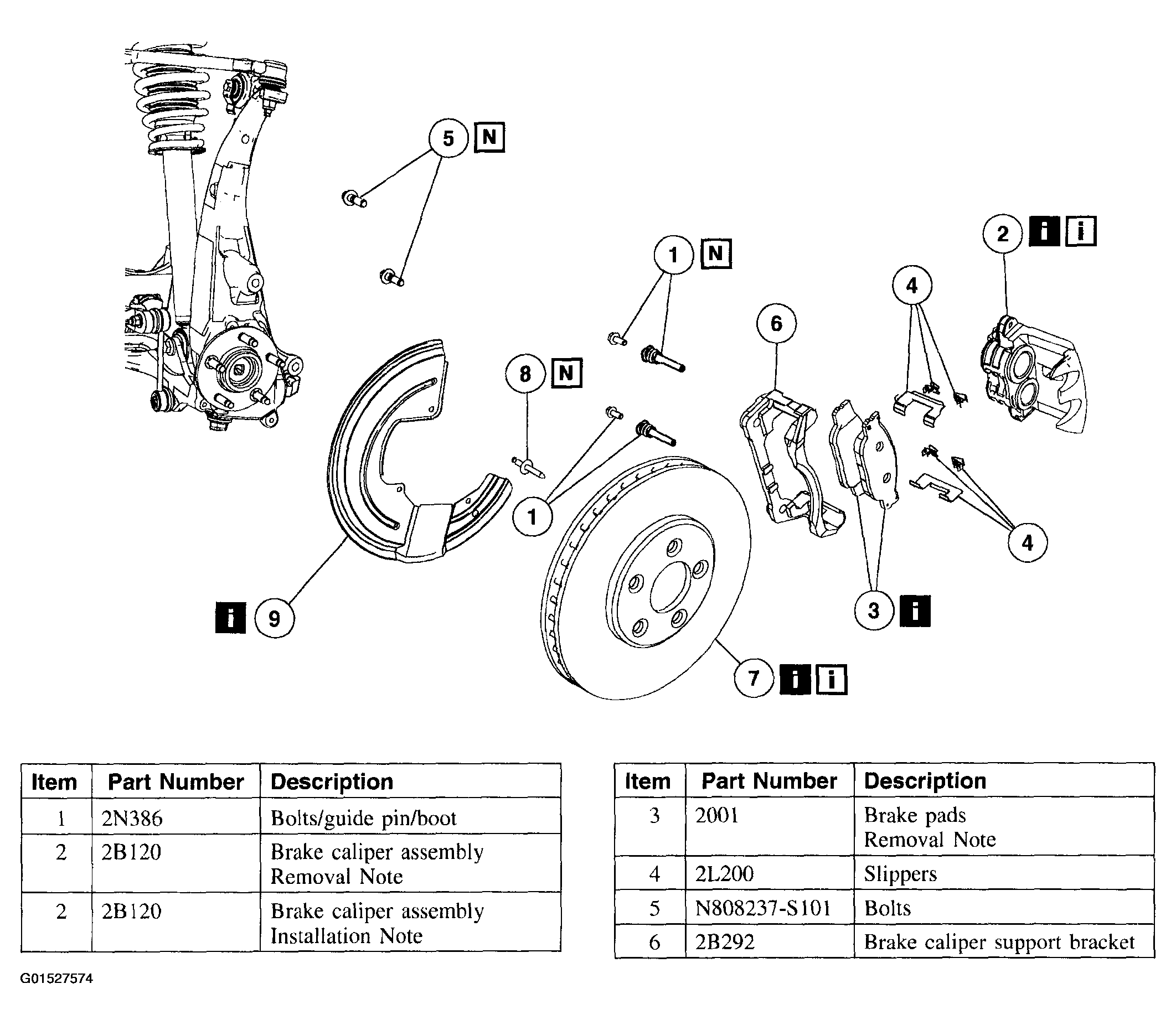

Fig 2: Exploded View Of Front Disc Brake (Items 1-6)
Courtesy of FORD MOTOR CO.

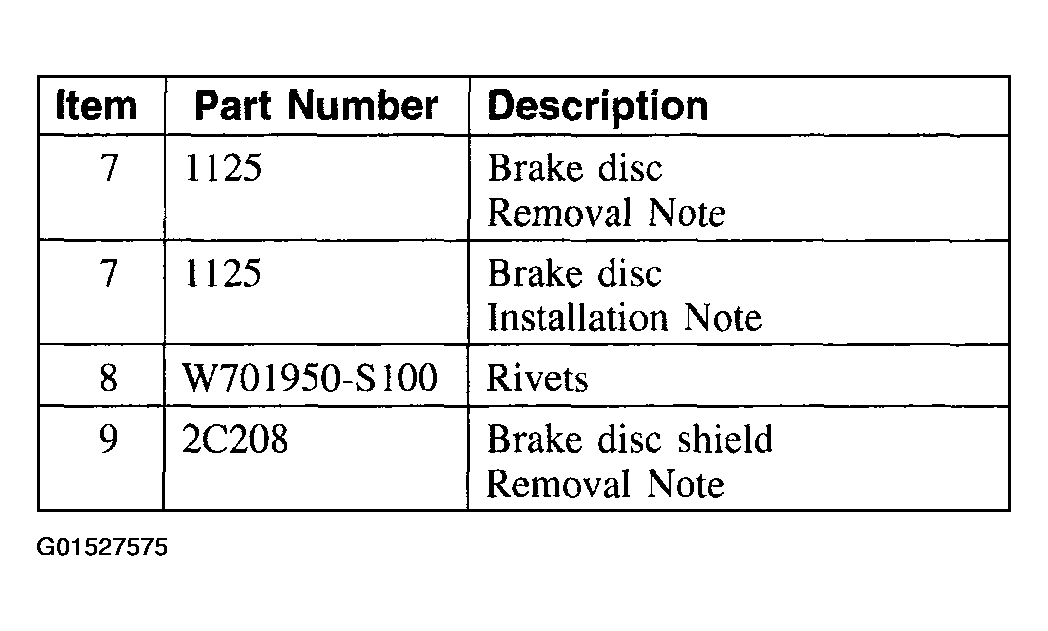

Fig 3: Exploded View Of Front Disc Brake (Items 7-9)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
