Section 235 (Automatic Transaxle/Transmission): Assembly: Transmission: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

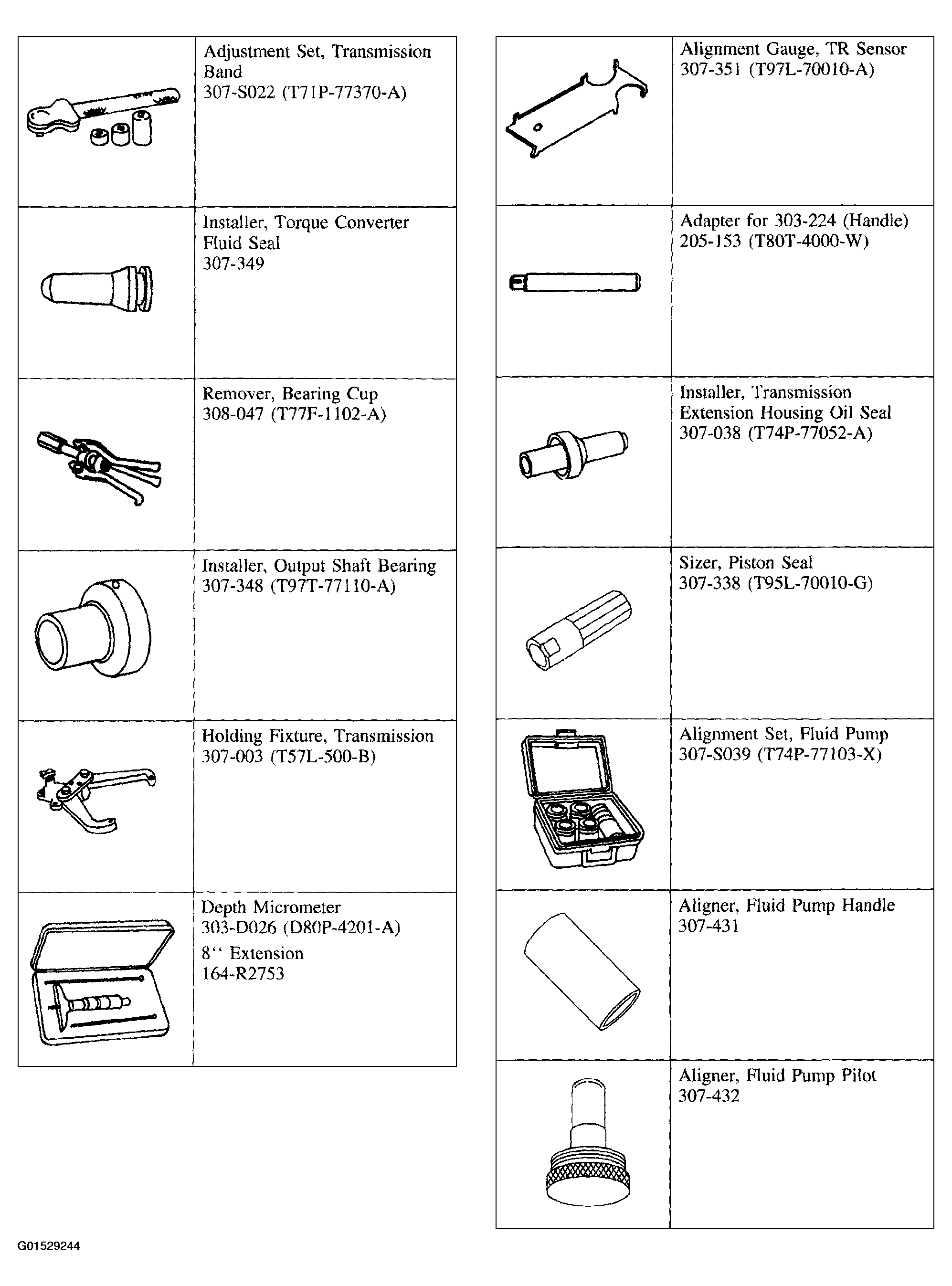

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of FORD MOTOR CO.

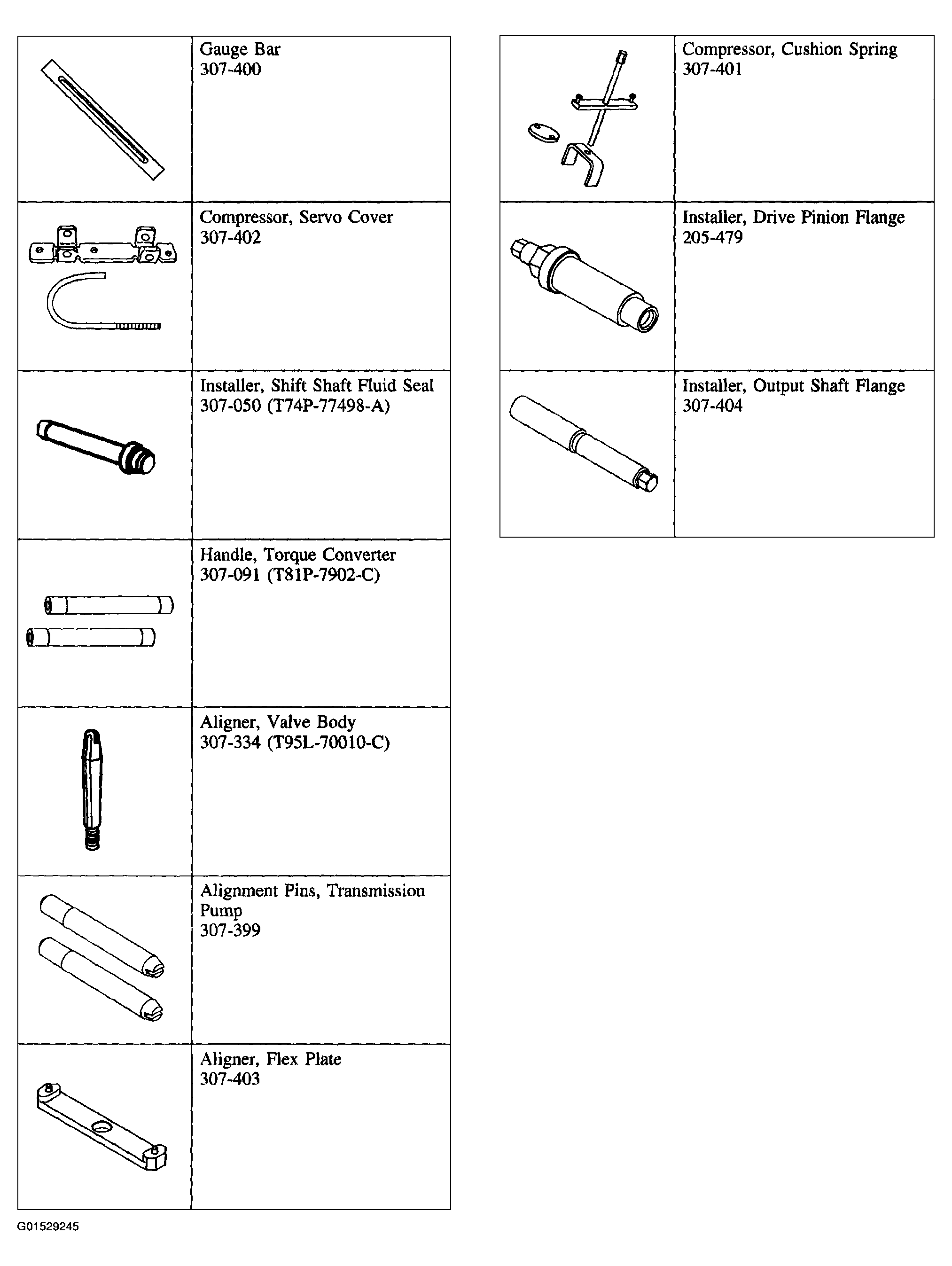

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Material Specifications

Courtesy of FORD MOTOR CO.

NOTE: Inspect the transmission case and extension housing for the following:

stripped screw hole threads
gasket and mating surfaces for burrs or nicks
obstructions to vent and fluid passages
cracks or warpage

NOTE: Thoroughly clean the transmission case and extension housing in solvent and blow dry with compressed air.

NOTE: Lubricate all seals and the servo bores with clean automatic transmission fluid.

If installing a new transmission case bearing, carry out the steps listed.

Fig 4: Components Removal Chart
Courtesy of FORD MOTOR CO.
Assemble the components in the order indicated in the following illustration and table.

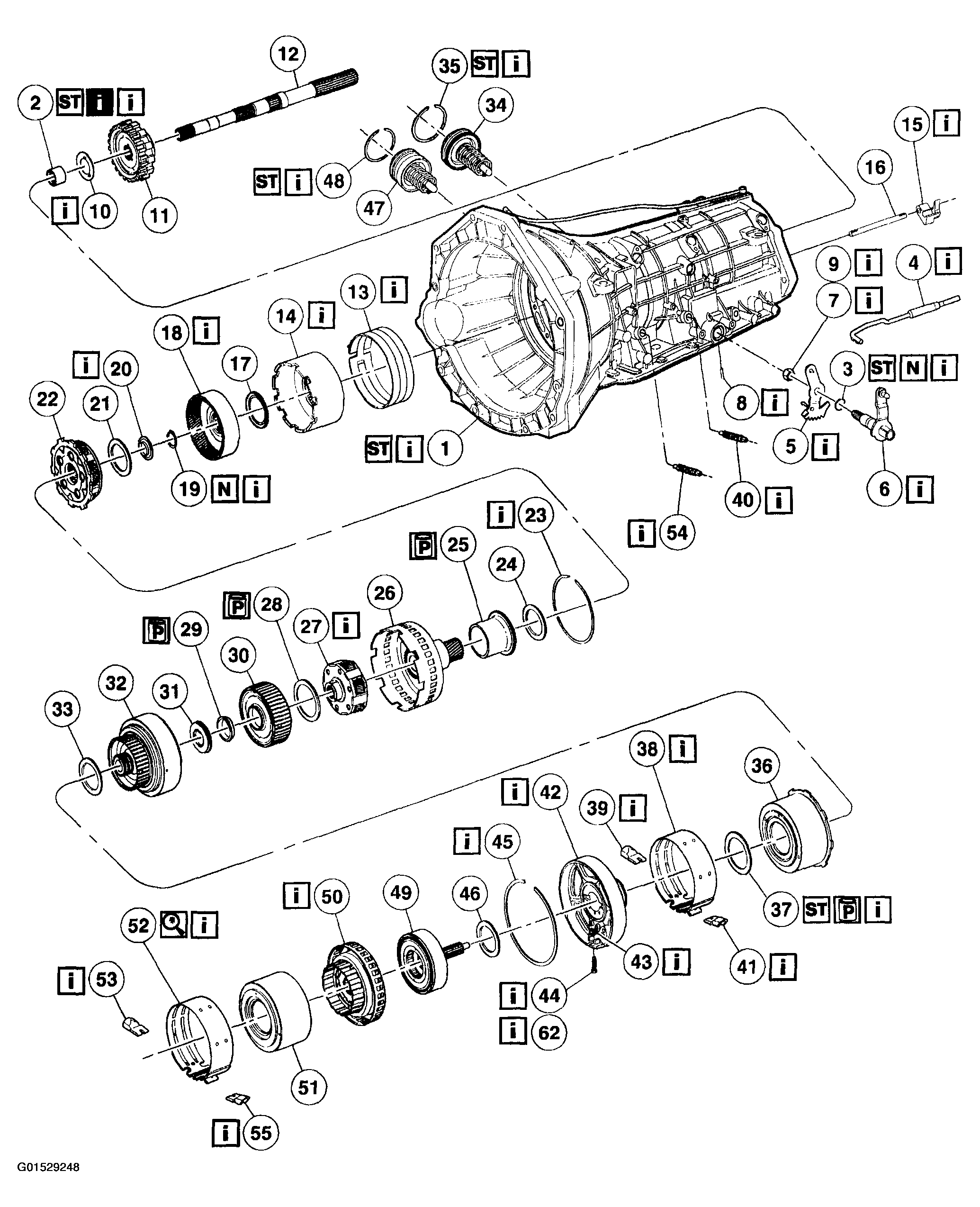

Fig 5: Exploded View Of Transmission (1 of 2)
Courtesy of FORD MOTOR CO.

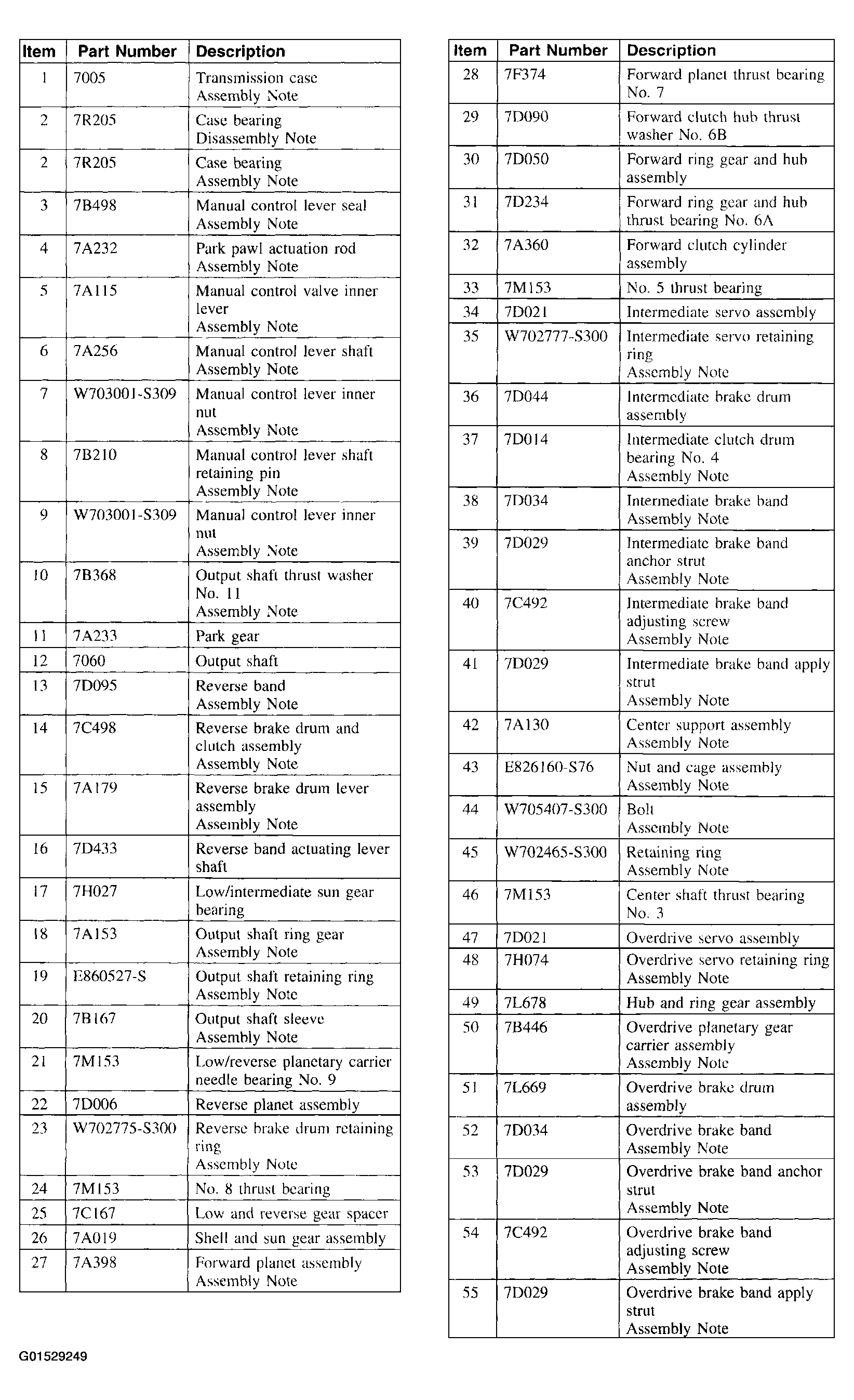

Fig 6: Transmission Assembling Sequence (Items 1-55)
Courtesy of FORD MOTOR CO.
Assemble the components in the order indicated in the following illustration and table.

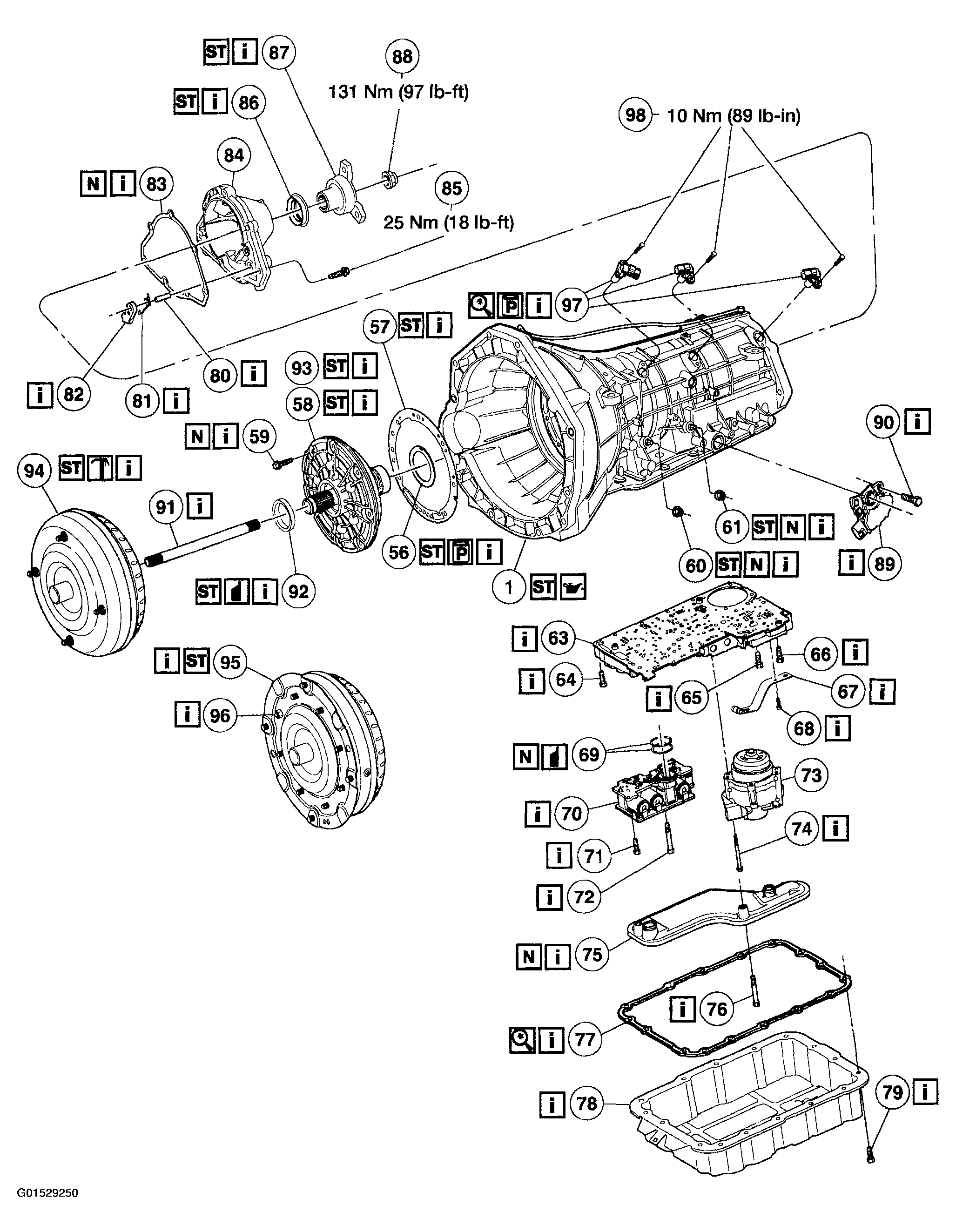

Fig 7: Exploded View Of Transmission (2 of 2)

Courtesy of FORD MOTOR CO.

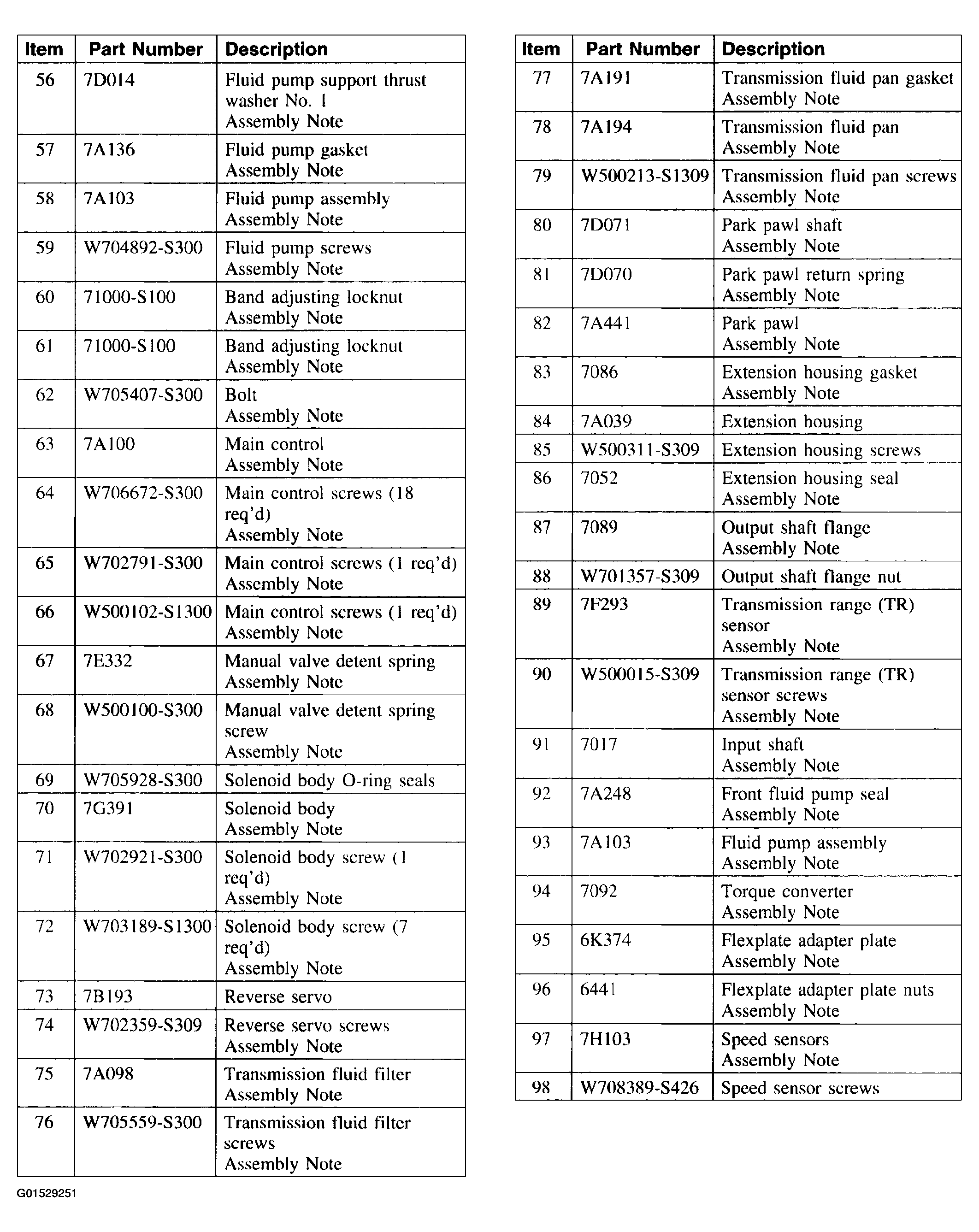

Fig 8: Transmission Assembling Sequence (Items 56-98)

Courtesy of FORD MOTOR CO.
