Section 235 (Automatic Transaxle/Transmission): Disassembly: Transmission: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

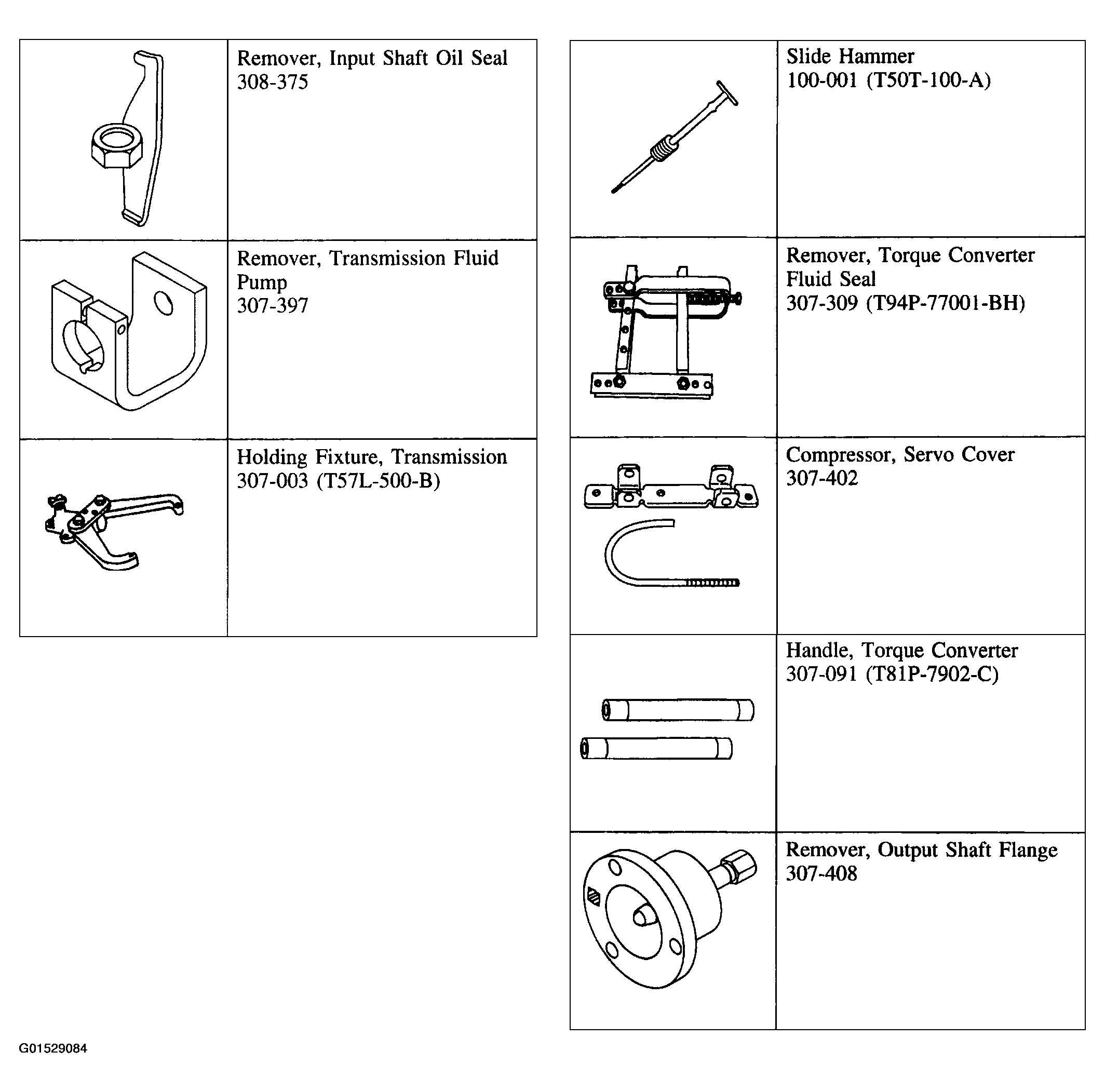

Special Tool(s)

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

CAUTION: The screws are not reusable for assembly. Discard the screws. If the screws are reused, the housing may become separated from the transmission.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect the gasket for damage. If not damaged, the gasket should be reused.

NOTE: Tag and identify all parts for reassembly.

Remove the components in the order indicated in the following illustration and table.

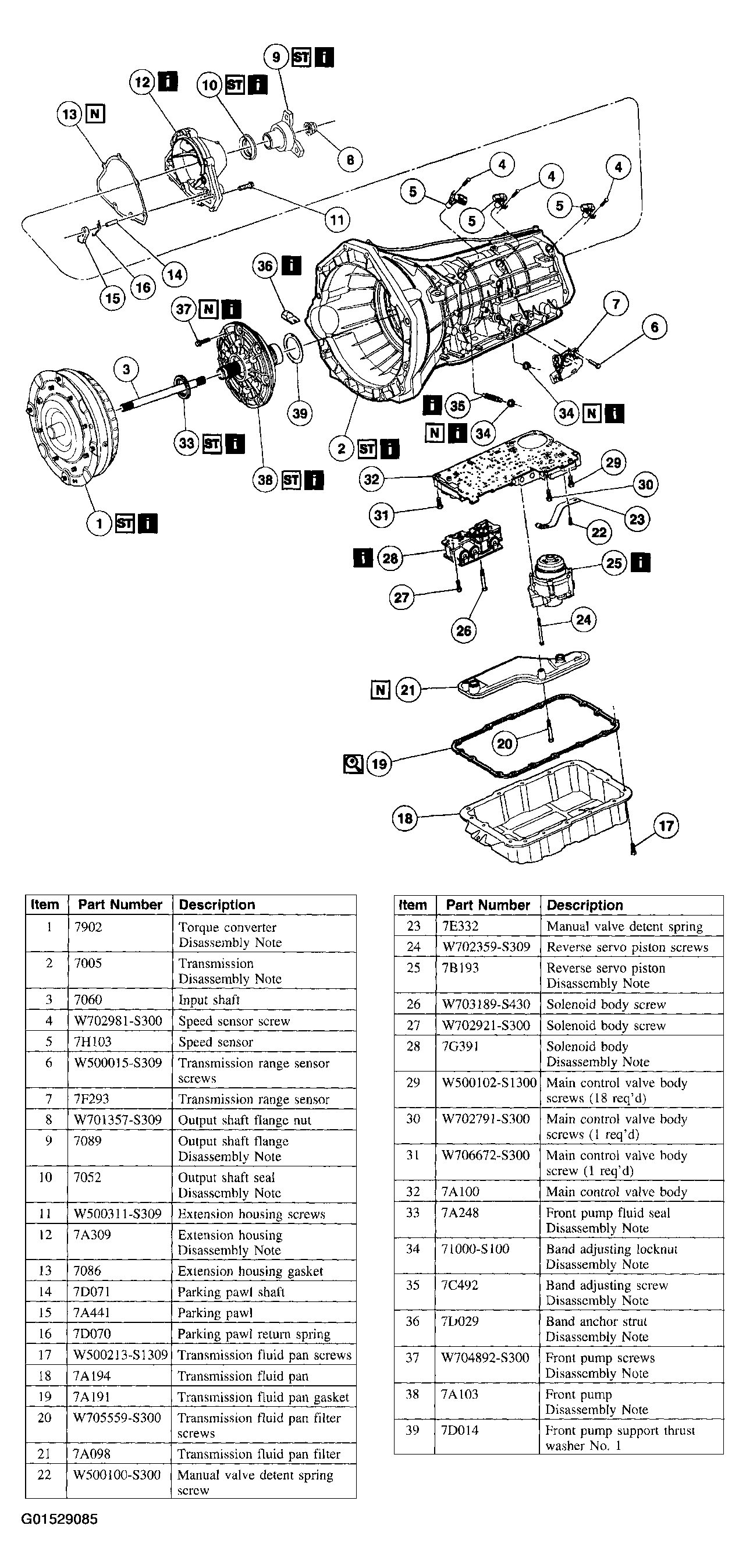

Fig 2: Transmission Removal Sequence (Items 1-39)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

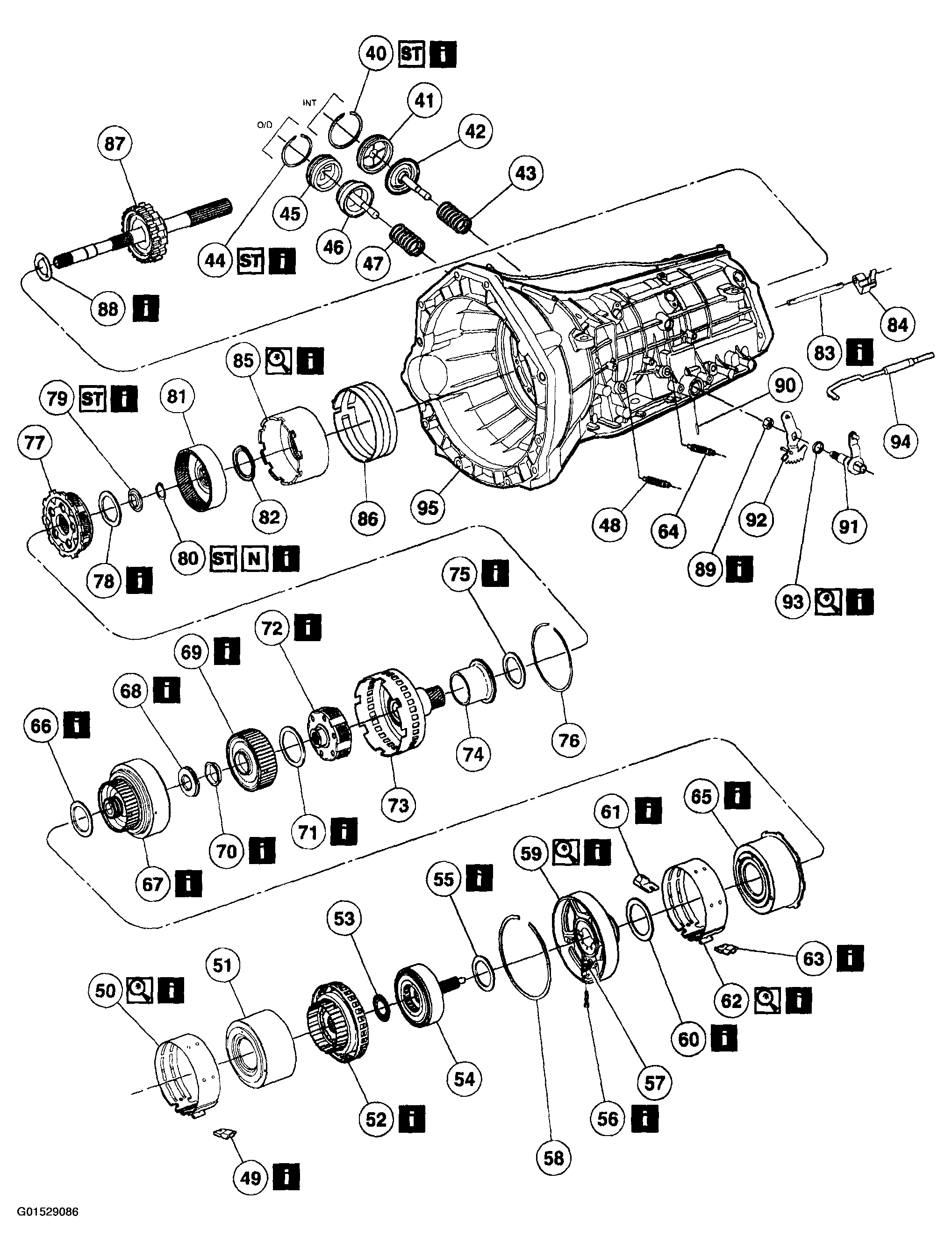

Fig 3: Disassembled View Of Transmission
Courtesy of FORD MOTOR CO.

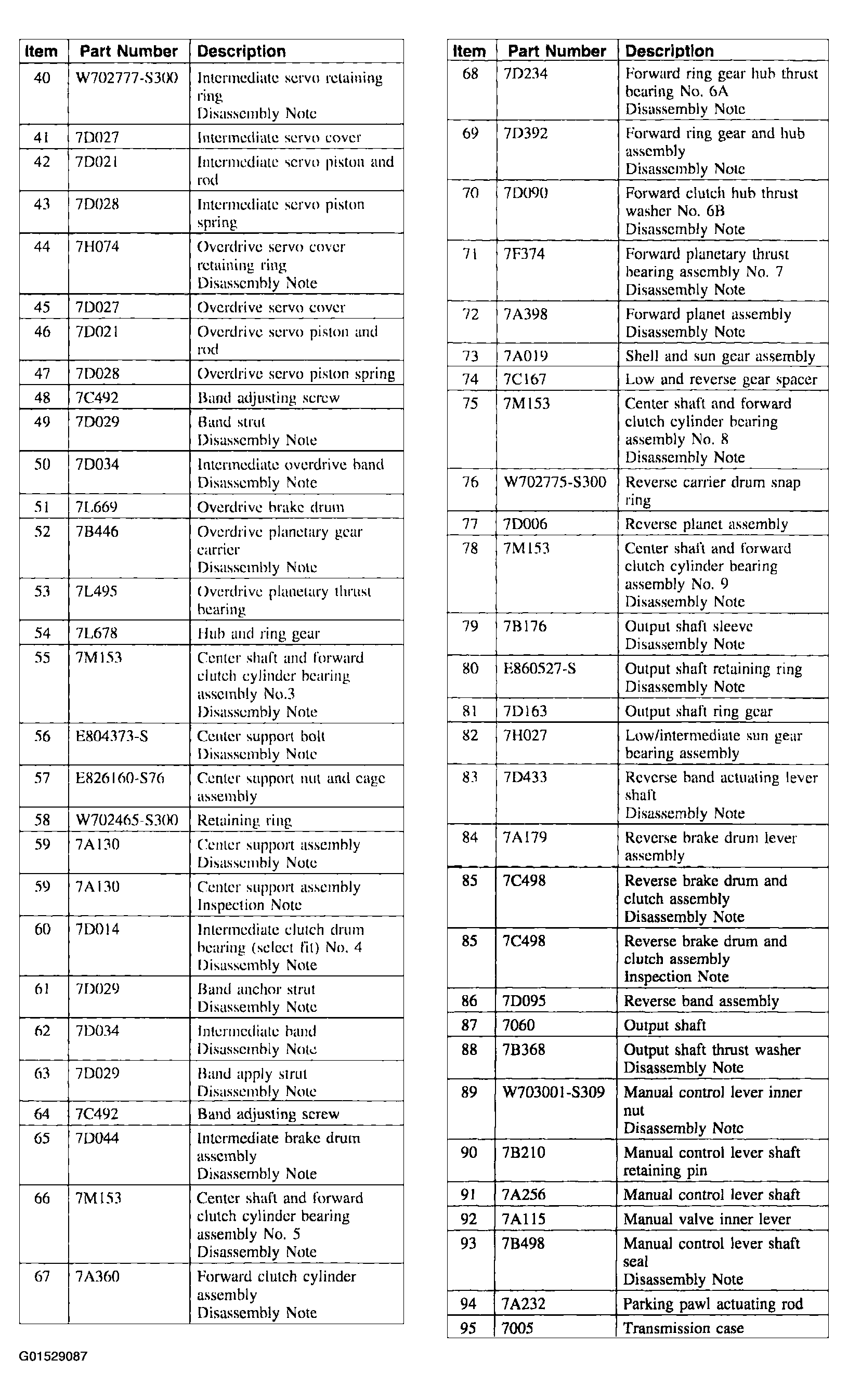

Fig 4: Transmission Removal Sequence (Items 40-95)
Courtesy of FORD MOTOR CO.
