A/C Compressor Clutch Relay

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: A/C Compressor Clutch Relay Connector Terminals

Courtesy of FORD MOTOR CO.

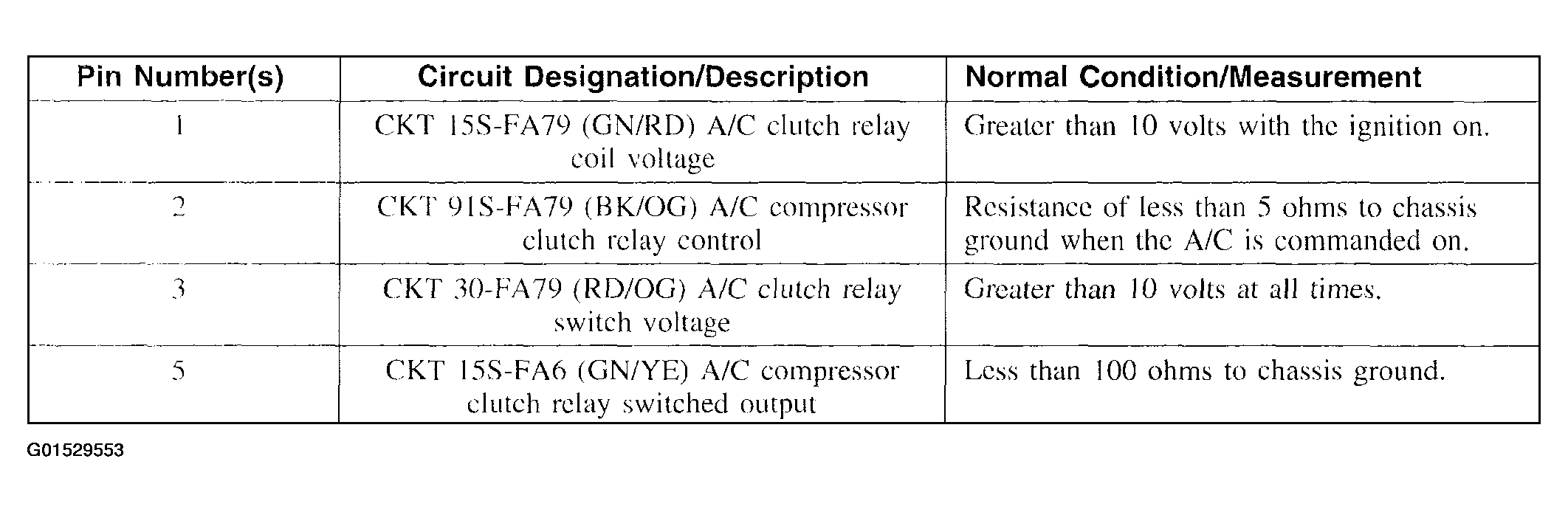

Fig 2: A/C Compressor Clutch Relay Circuit Description Chart

Courtesy of FORD MOTOR CO.
