Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Manifold Gauge Set Connection Special Tool

Courtesy of FORD MOTOR CO.

Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low- and high-pressure hoses to the center manifold and center hose.

Fig 2: Identifying R-134a Manifold Gauge Set
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap from the high-pressure service gauge port valve.

Fig 3: Removing A/C Charging Valve Cap From High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

Fig 4: Connecting R-134a Manifold Gauge Set High-Pressure Hose To High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Raise the vehicle. For additional information, refer to JACKING & LIFTING .

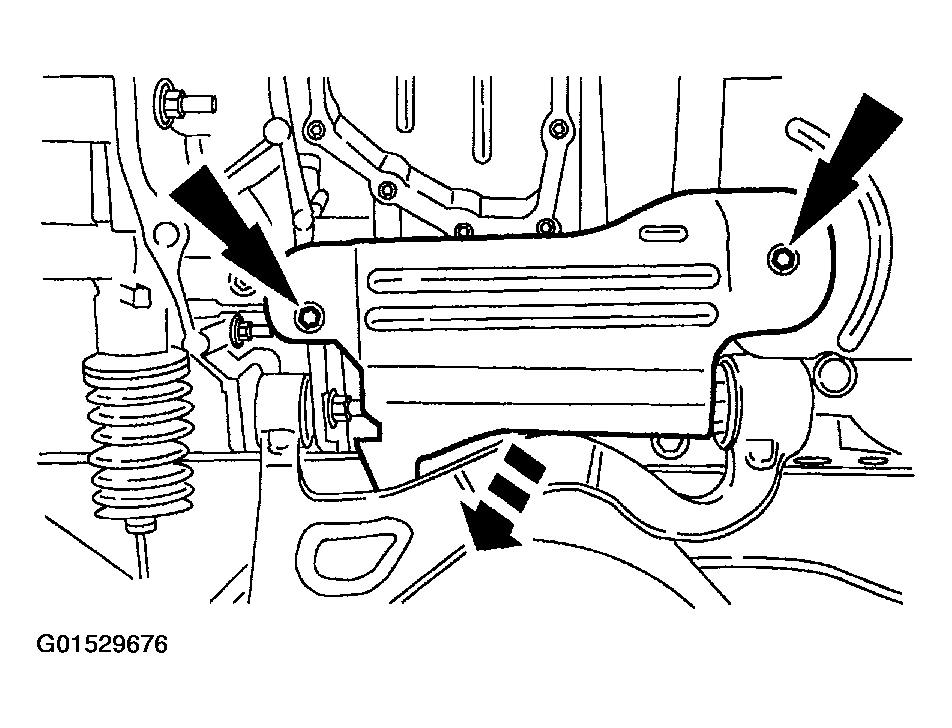

Remove the screws and the left sight shield.

Fig 5: Removing Left Sight Shield
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.

Fig 6: Removing A/C Charging Valve Cap
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

Fig 7: Connecting R-134a Manifold Gauge Set Low-Pressure Hose To Low-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
To disconnect the manifold and gauge set, reverse the connection procedure.
