Blower Motor
WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the RH floor duct. For additional information, refer to AIR DISTRIBUTION DUCTS .

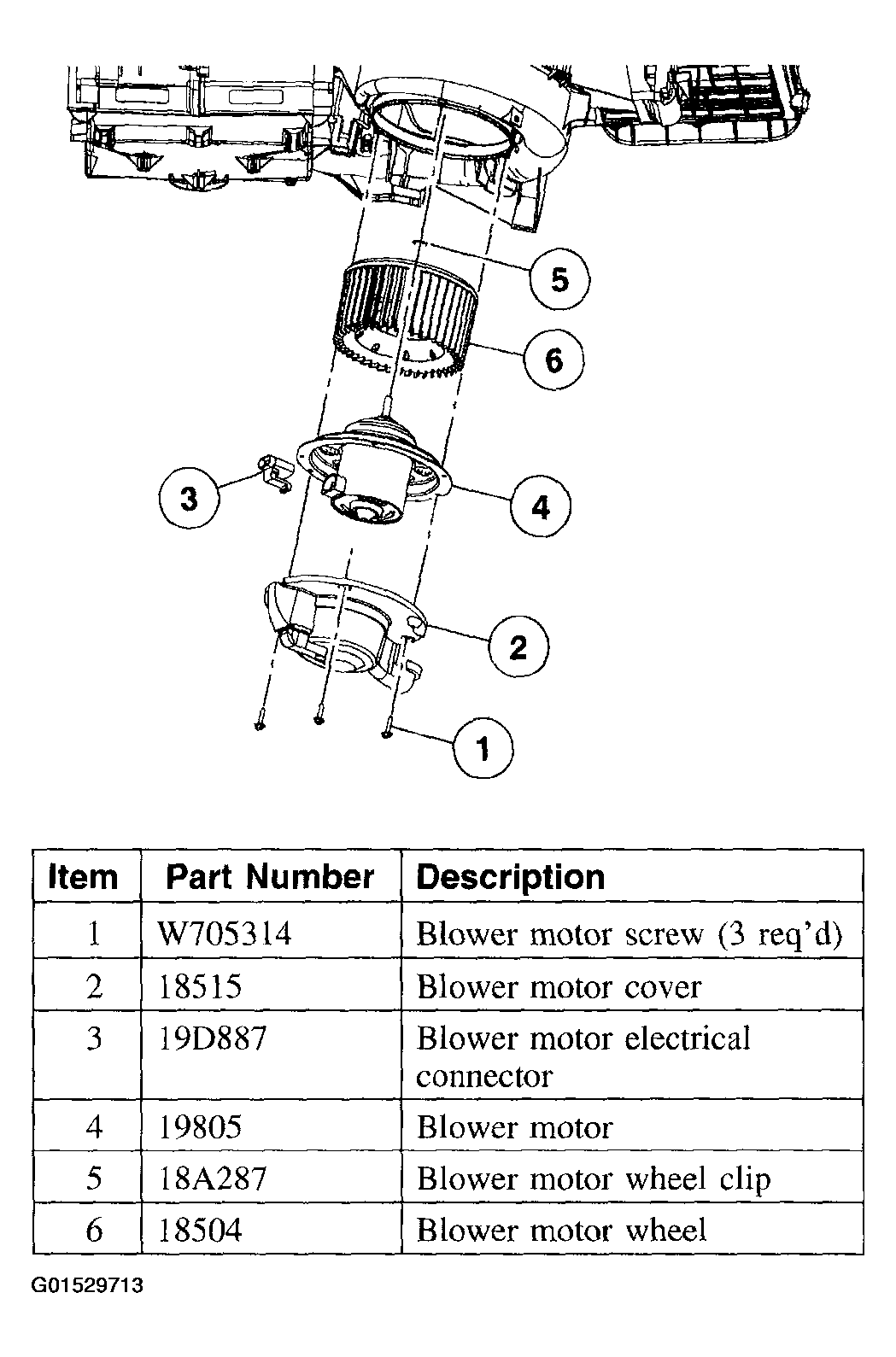

- Remove the components in the order indicated in the following illustration.
- To install, reverse the removal procedure.
